Plus Points

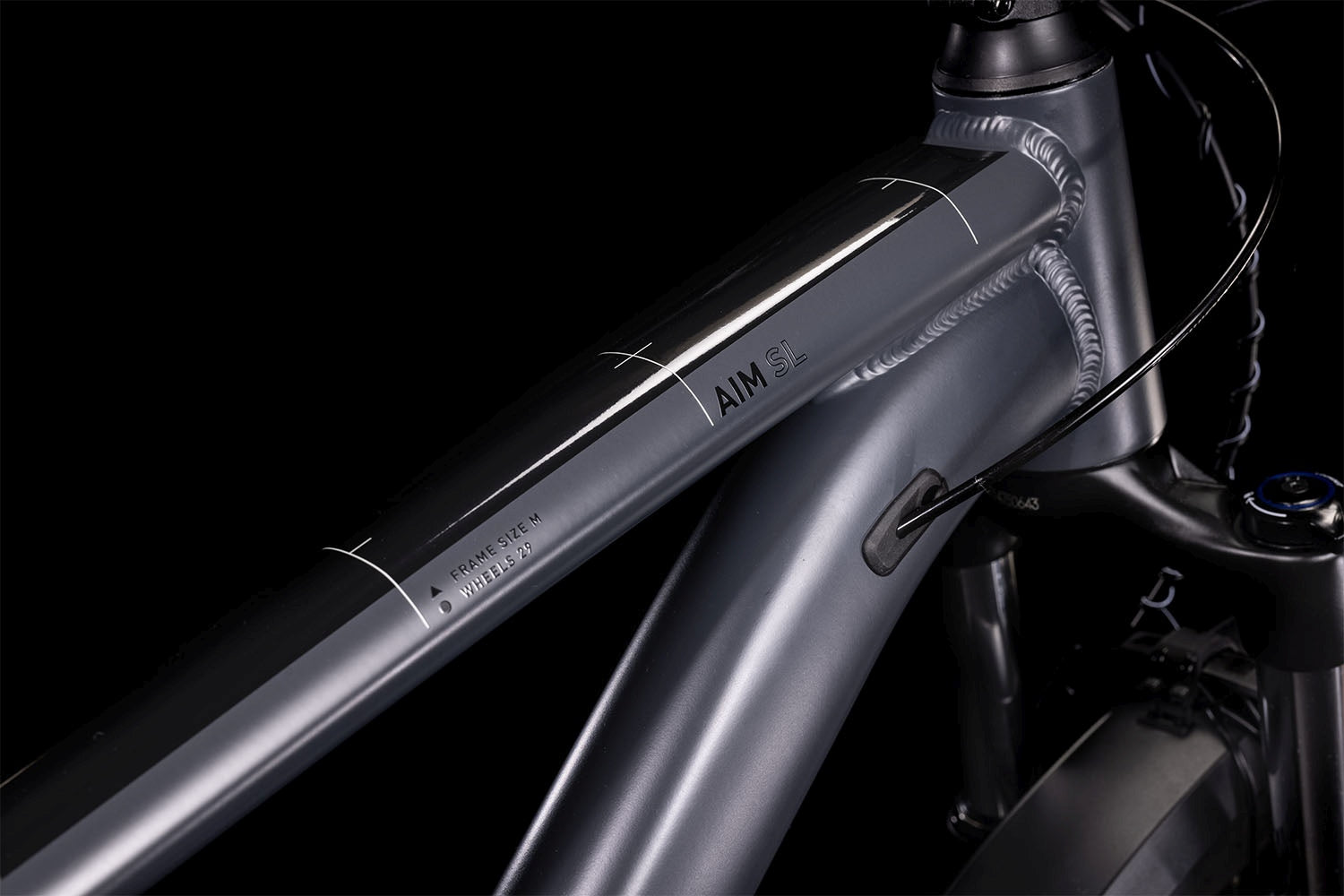

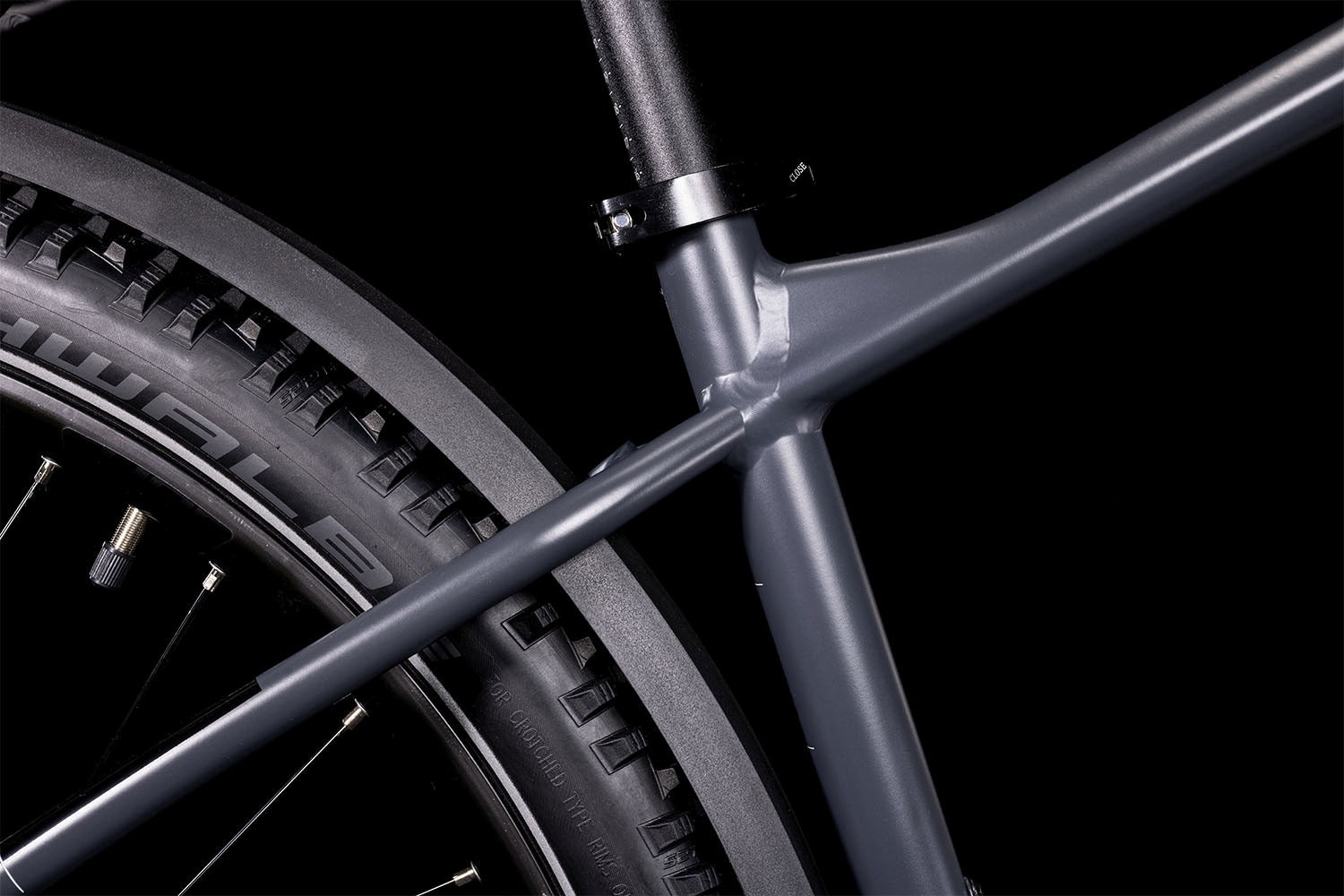

- Completely renewed lightweight aluminum frame
- Nice low top tube for easy mounting and dismounting
- Sleek optics with internal cable routing
- Great mix of agility and stability thanks to the CUBE Agile Ride geometry
- Always a suitable size thanks to the CUBE Size Split system

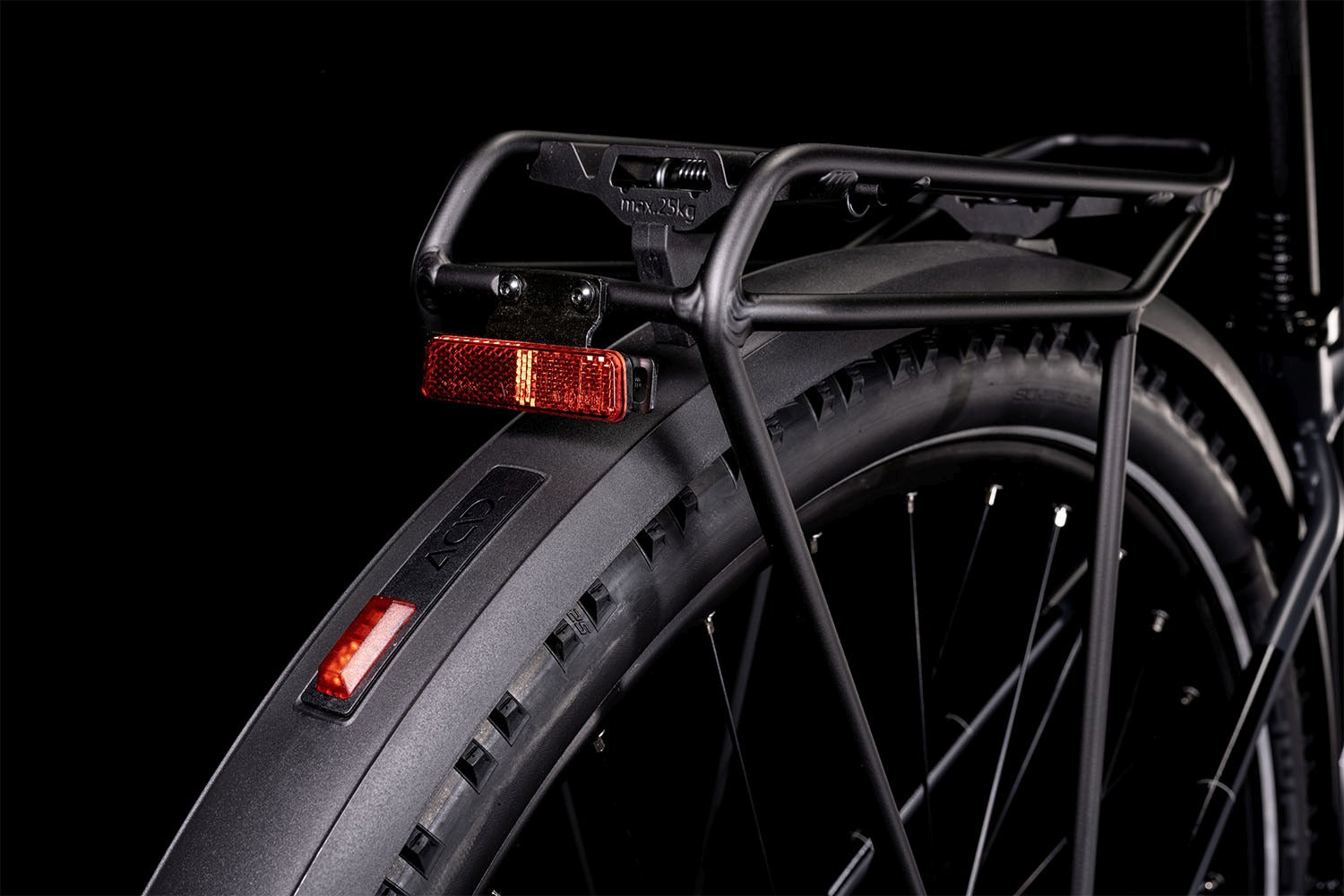

- Includes fenders, luggage carrier, lighting, and rear stand
- The lightest model in the Aim Allroad series
Advisory points
- Heavier than a regular Aim SL
- No air suspension
Description
Product specifications
Frame
Model year
2022
Fork
Rockshox Judy Silver TK Coil, 100mm, Lockout
Drivetrain and brakes

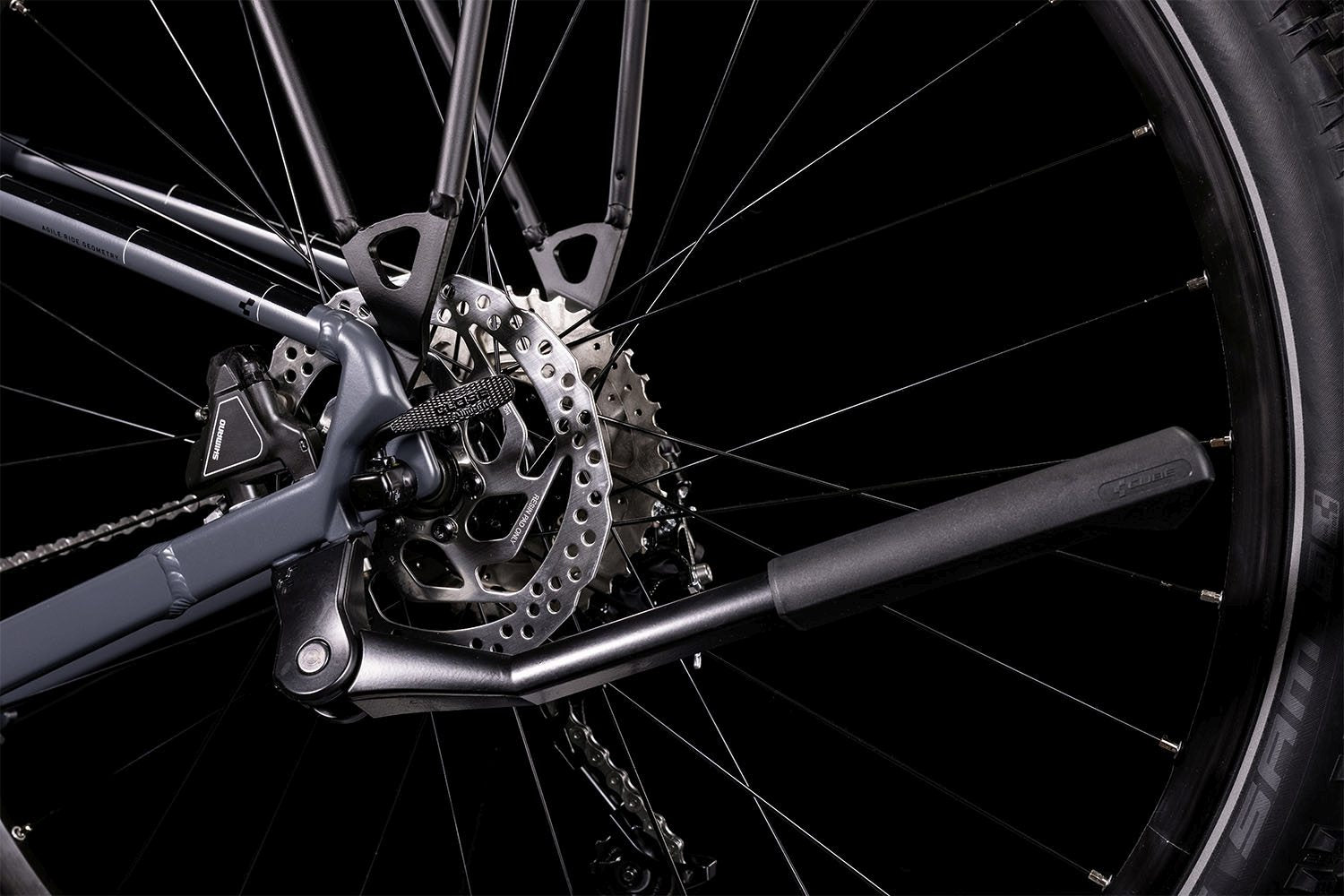

Front brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear derailleur
Shimano RD-M3100-SGS, 9-Speed
Front derailleur
Shimano FD-M2020, Top Swing, 31.8mm Clamp
Shifters
Shimano SL-M2010-9R, Rapidfire-Plus
Crankset
Shimano FC-MT101, 36x22T
Cassette
Shimano CS-HG201, 11-36T
Chain
KMC X9
Cockpit
Headset
Cube FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem Pro, 31.8mm
Bar tape or grips
Cube Performance
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
Shimano HB-TX506, QR, 6-Bolt
Front tyre
Schwalbe Smart Sam, Active, 2.25
Rear Tyre
Schwalbe Smart Sam, Active, 2.25
Other parts
Saddle
Venec Lite
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Cube PP MTB
