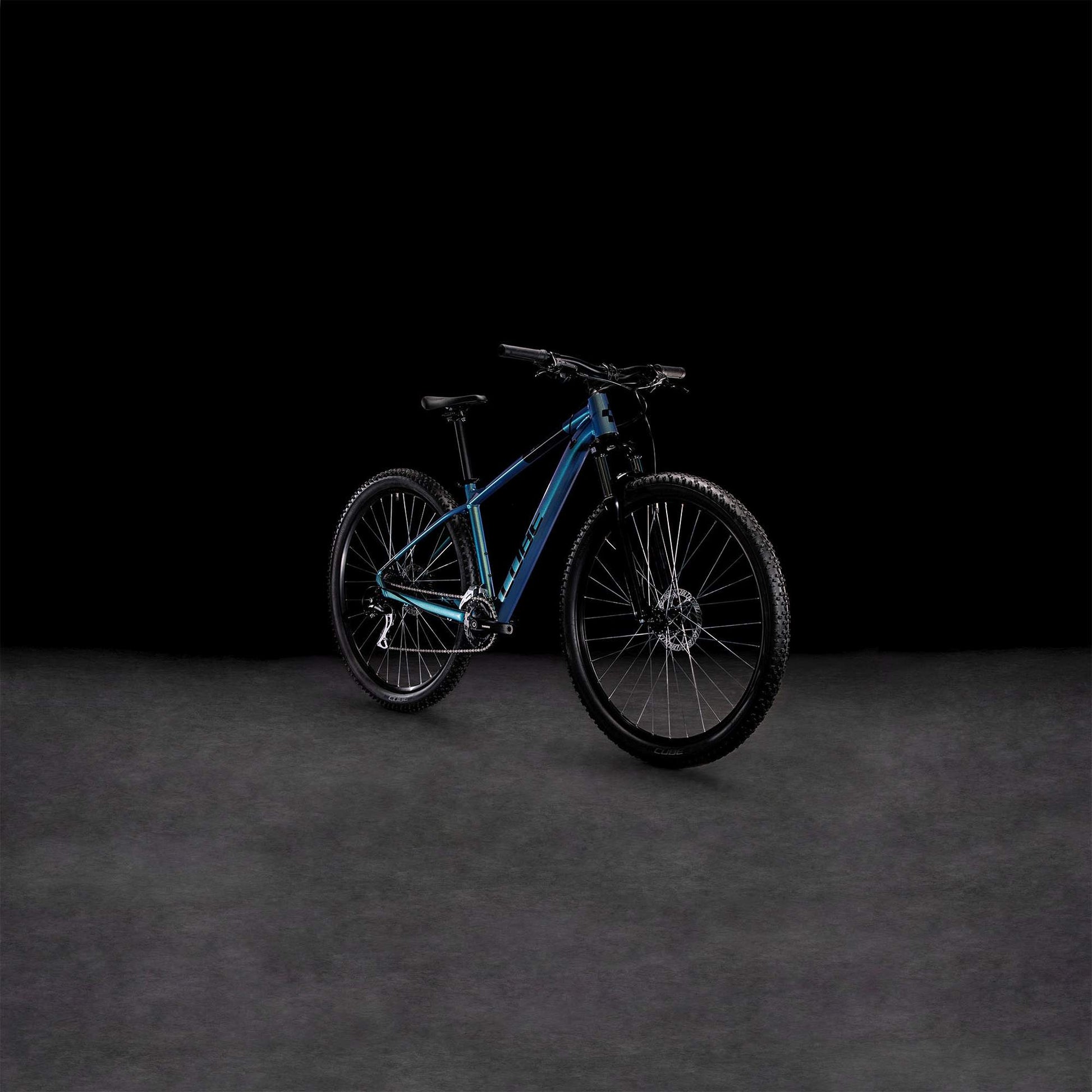

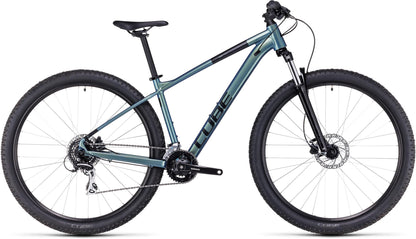

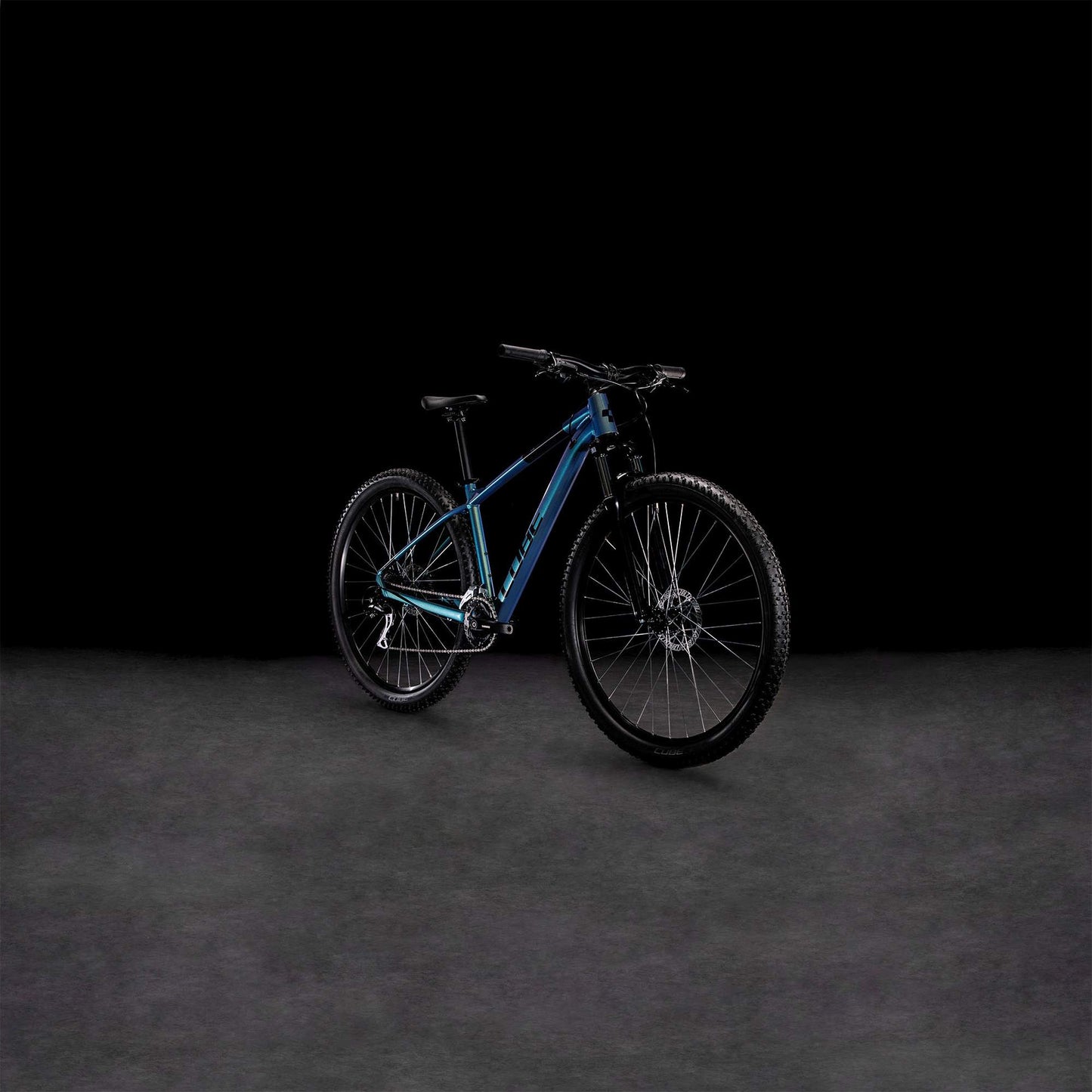

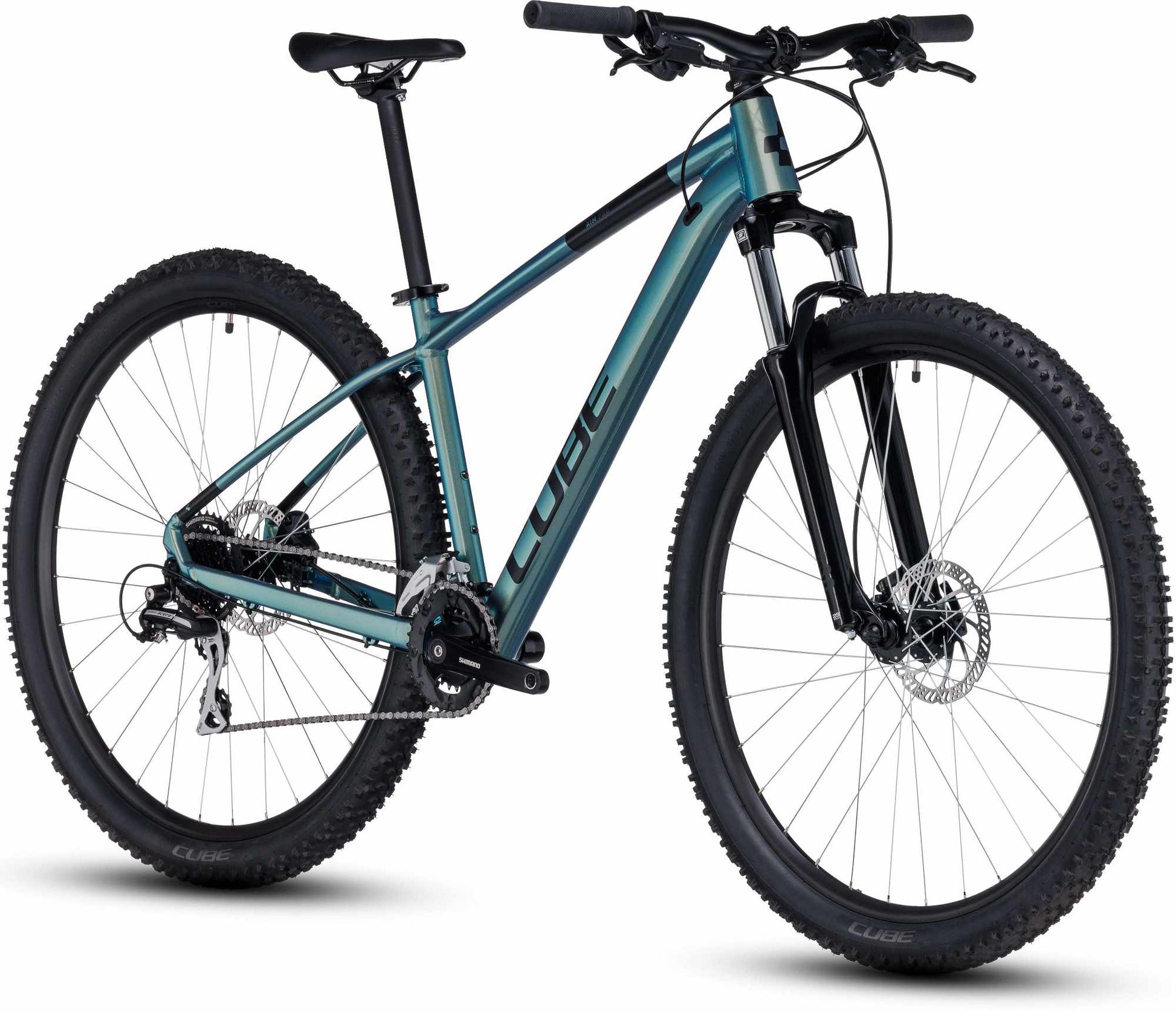

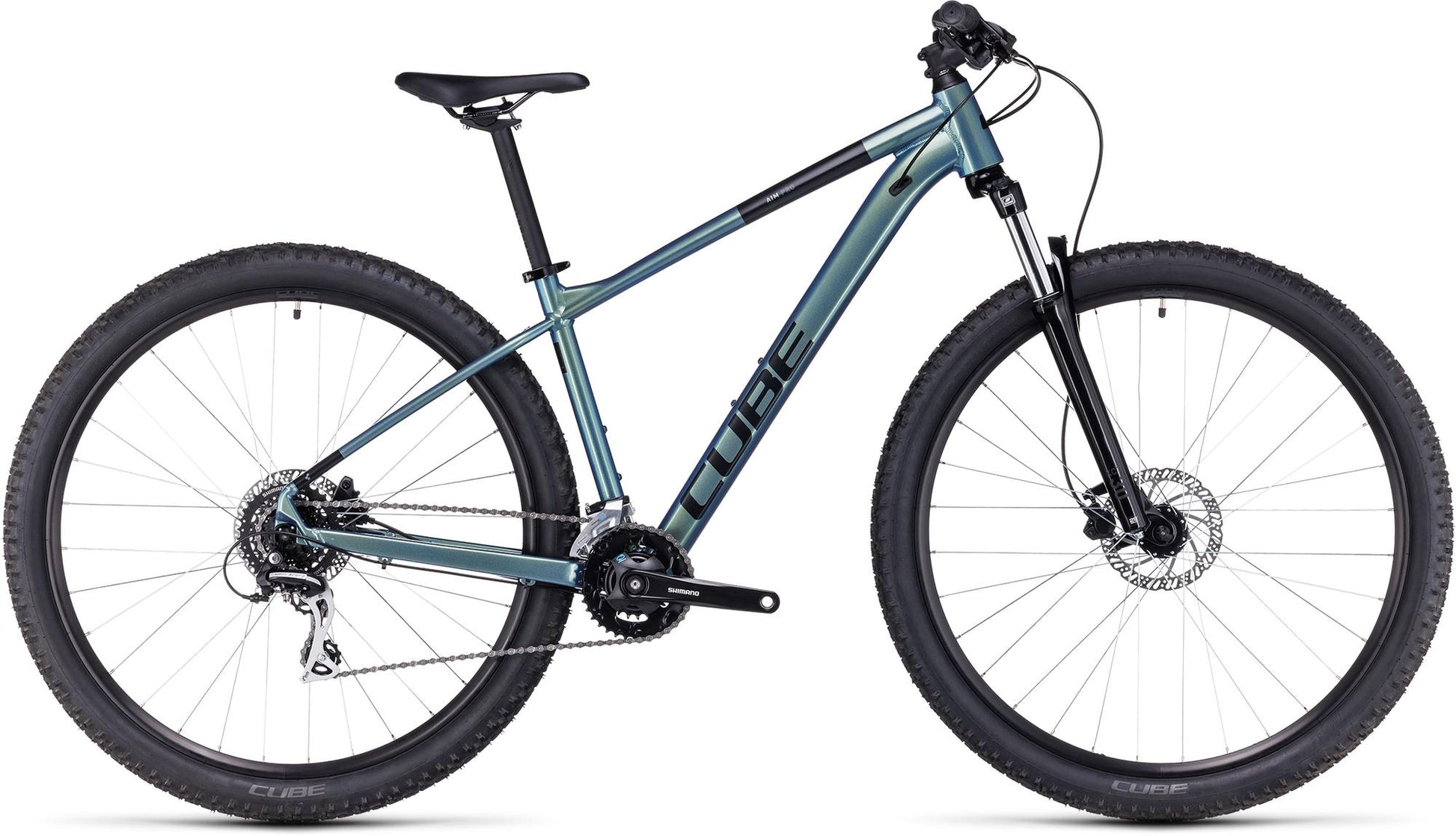

CUBE AIM PRO SHIFTVERDE/BLACK
CUBE AIM PRO SHIFTVERDE/BLACK
Plus Points
- High-quality, lightweight aluminum frame
- Nice low top tube for easy on and off
- Sleek look with internal cable routing
- Nice mix of agility and stability thanks to the CUBE AgileRide geometry
- Always a perfect fit thanks to the CUBE SizeSplit system
- Integrated mounting points for fenders, luggage rack, and rear stand
Advisory points
- Something heavier than the Aim Race
- No thru-axles
- No air suspension
Description
CUBE AIM PRO SHIFTVERDE/BLACK XS
Got an off-road itch that needs scratching? The Aim Pro could be the relief you're looking for. With its grippy tyres and 100mm suspension fork, it's got the comfort and control you'll need to keep riding when you reach the end of the road. Wide-ratio Shimano 2x8 gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents. Best of all, SizeSplit makes it easy to find the perfect fit for every rider – and the frame is even ready to accept a future dropper post upgrade.
Frame description

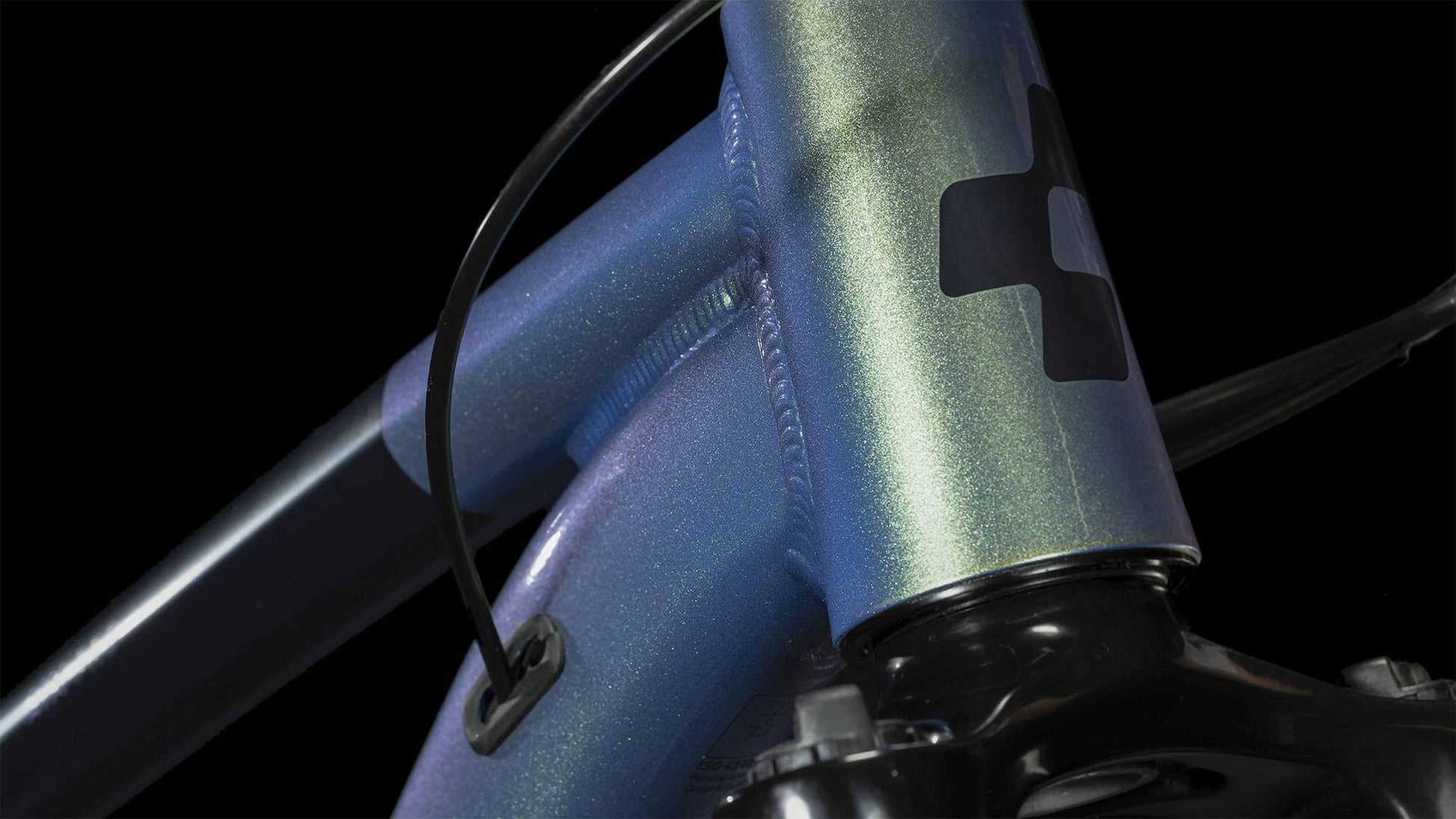

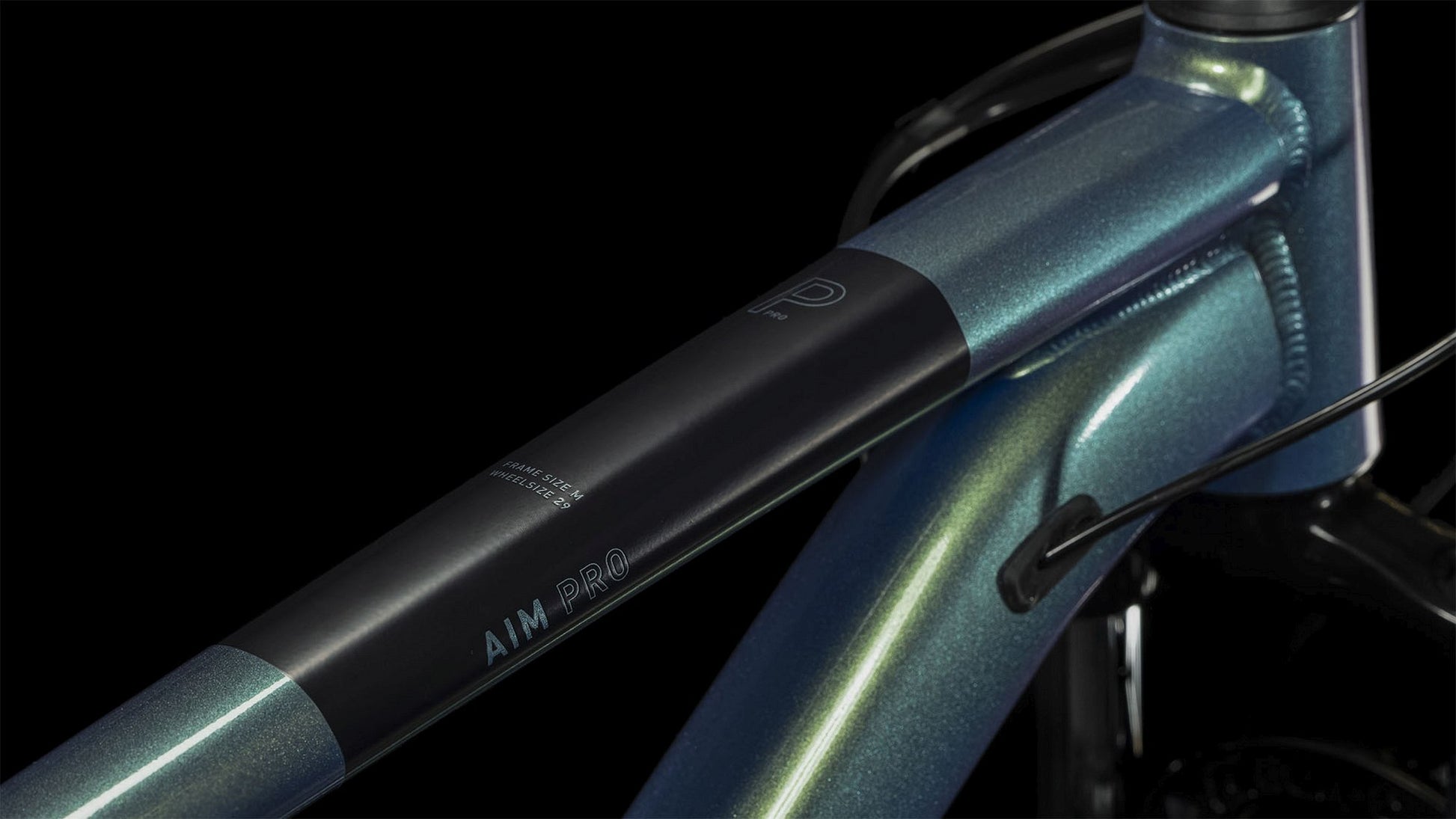

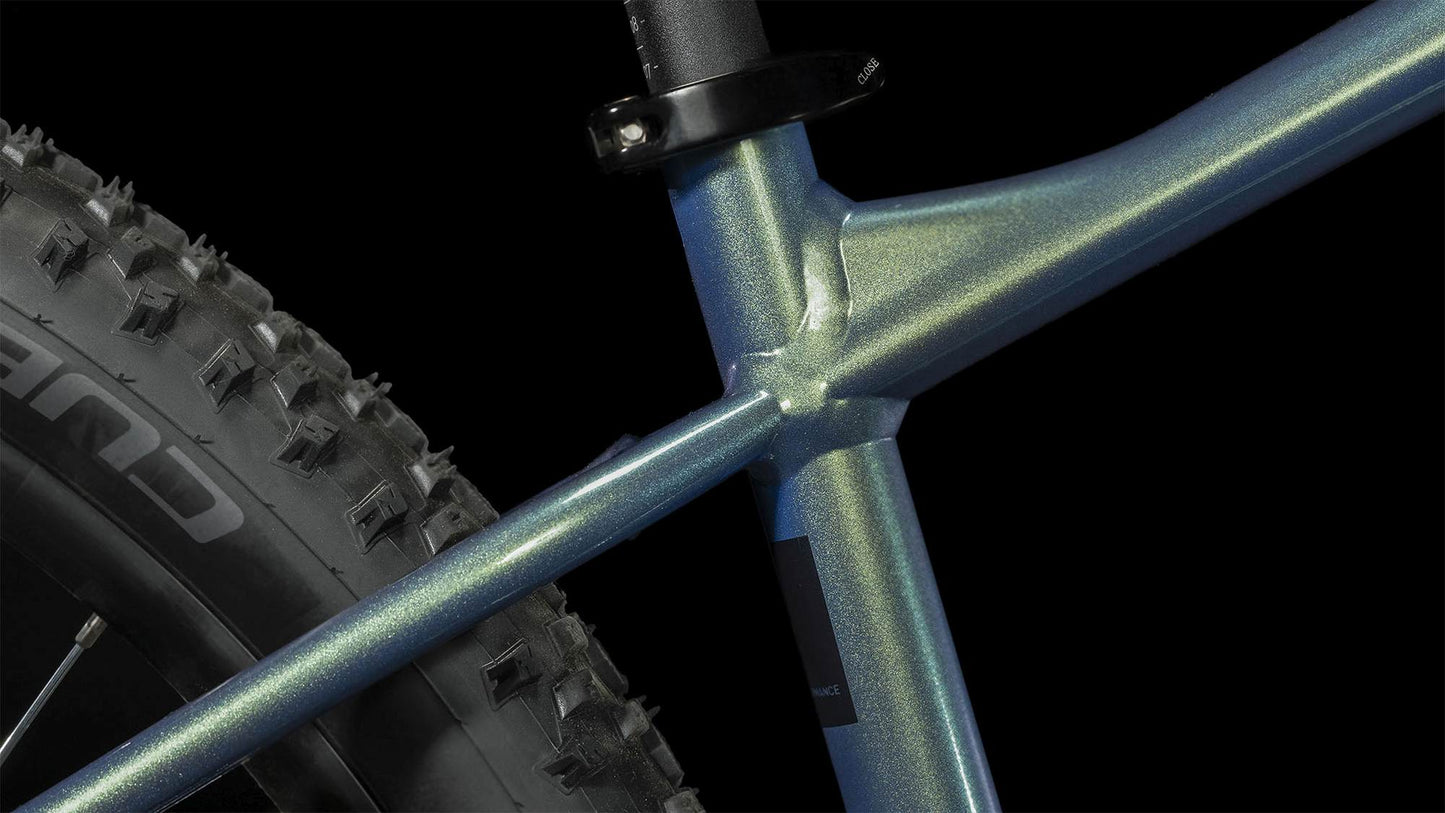

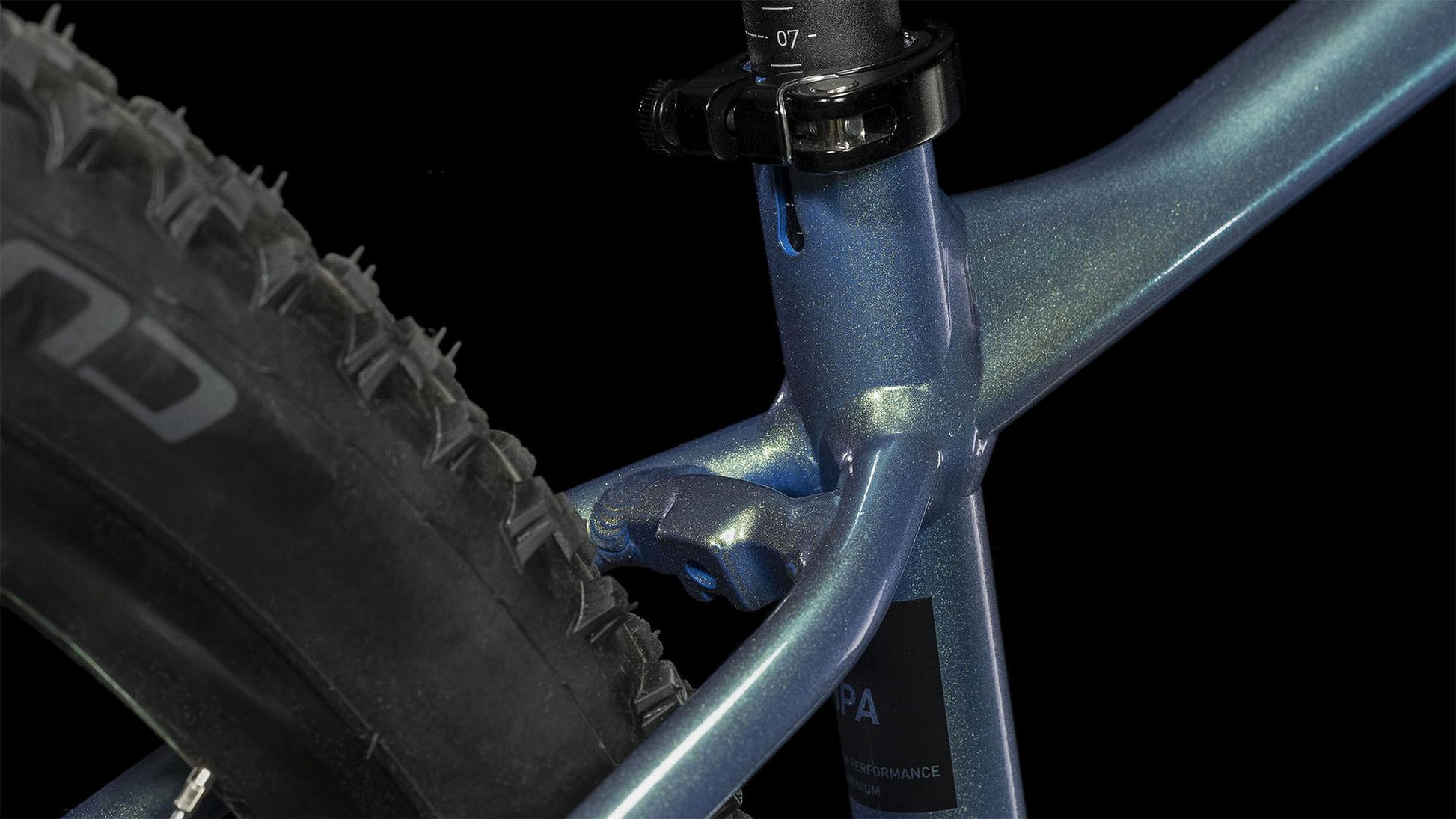

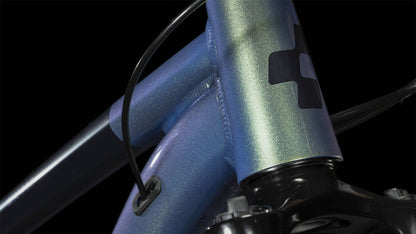

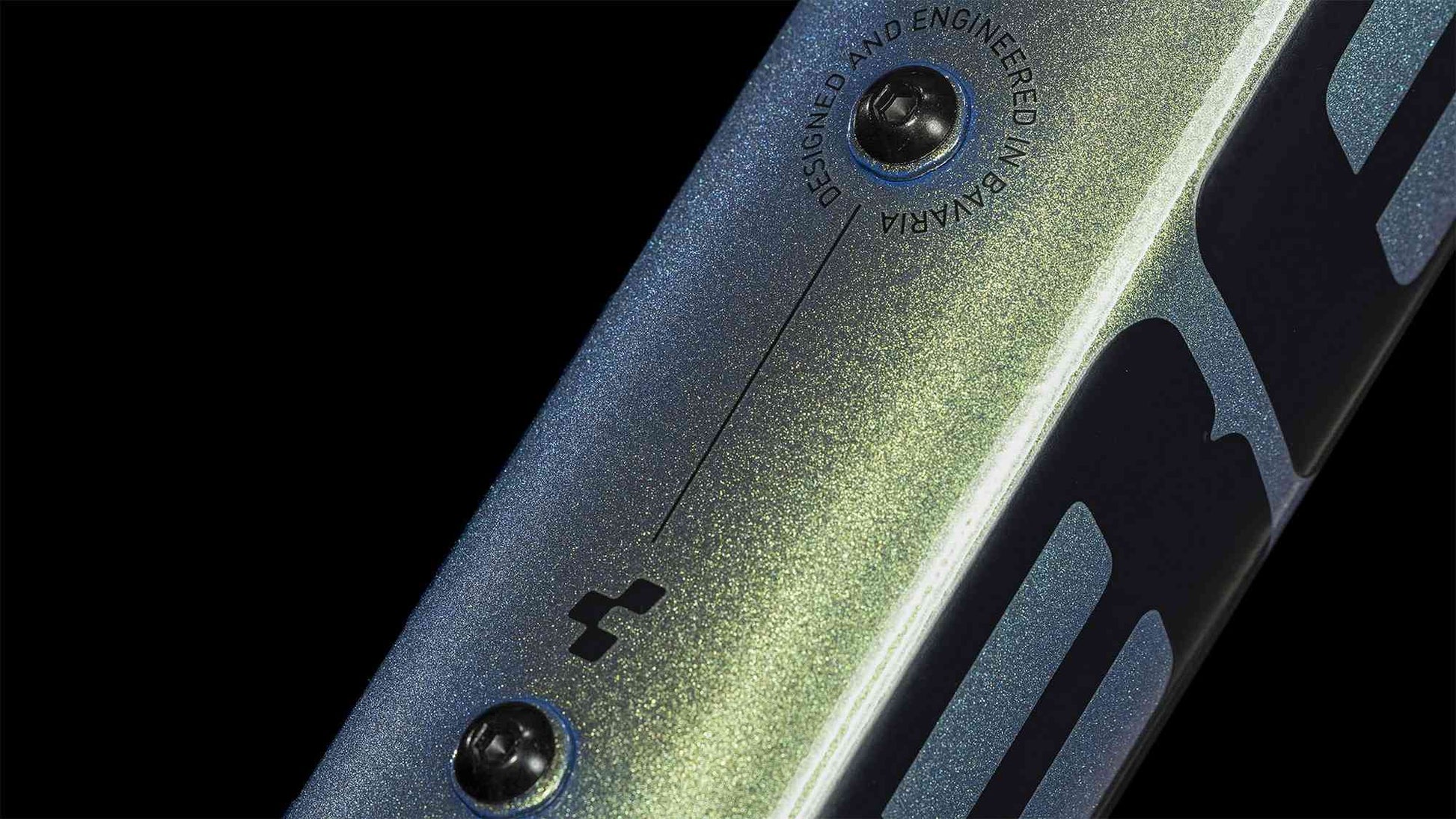

Beauty is more than skin deep: the Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
Cube XCT Disc, 100mm
Drivetrain and brakes
Front brake
Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
Rear brake
Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
Rear derailleur
Shimano RD-M3020, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
Shimano SL-M315, Rapidfire-Plus
Crankset
Shimano FC-M315, 36x22T, 170mm
Cassette
Shimano CS-HG31, 11-34T
Chain
KMC Z8.3
Cockpit
Headset
Cube FPH868, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem Pro, 31.8mm
Bar tape or grips
Acid React
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Cube Alloy Light, QR, 6-Bolt
Rear Hub
Cube Alloy Light, QR, 6-Bolt
Front tyre
Cube IMPAC Smartpac, 2.25
Rear Tyre
Cube IMPAC Smartpac, 2.25
Other parts
Saddle
Venec Lite
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Cube PP MTB
