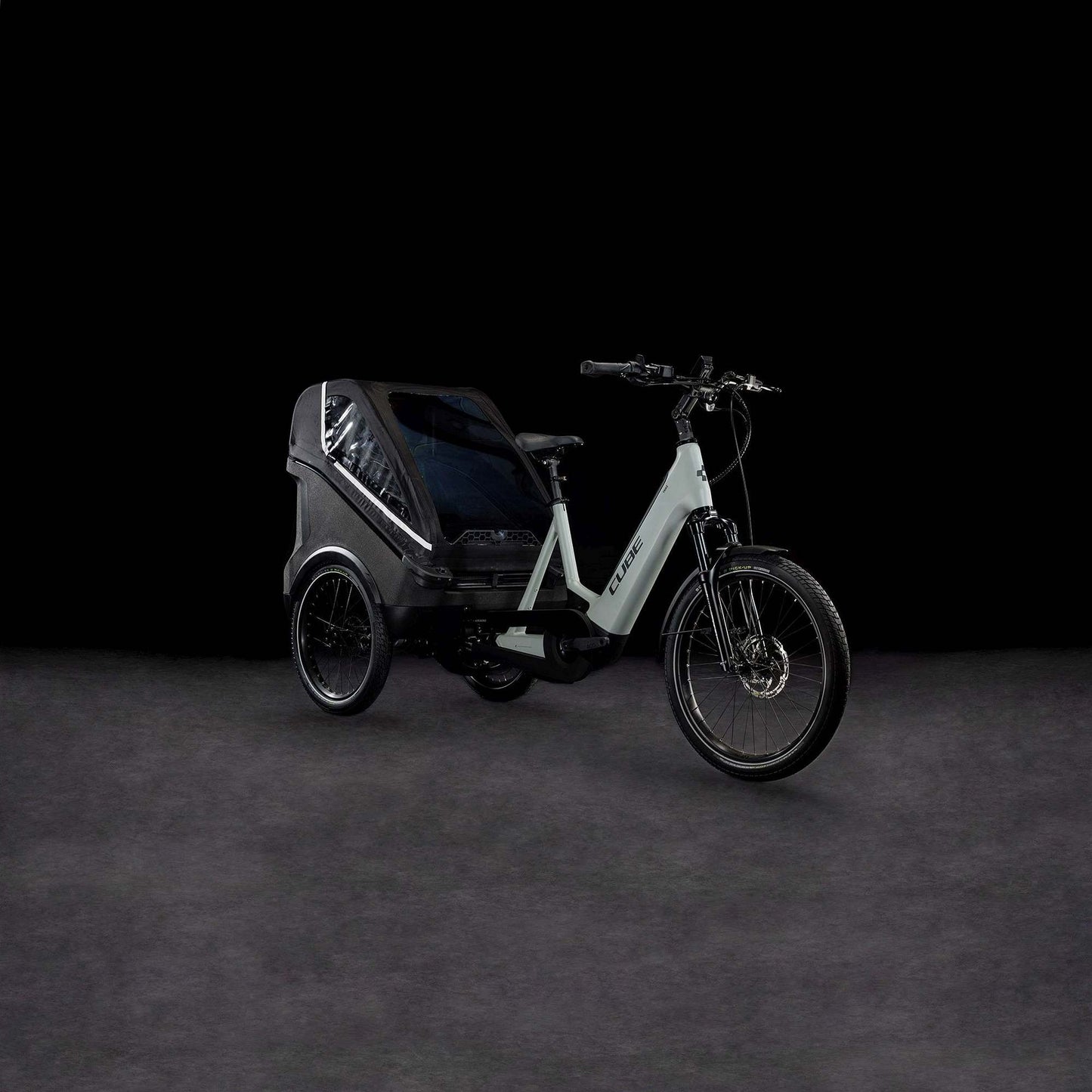

CUBE TRIKE HYBRID FAMILY 750 SWAMPGREY/BLACK
CUBE TRIKE HYBRID FAMILY 750 SWAMPGREY/BLACK
Plus Points
- High-quality aluminum frame
- Developed together with BWM
- Handles like a regular bike
- Bosch Cargo Line motor
- Continuously variable Enviolo Cargo transmission
- Suspension front fork
- Hydraulic disc brakes all around
- Parking brake
- Height-adjustable handlebars and saddle
- Front carrier sold separately
- Luggage box with removable child seats, seat belts, and a rain cover
Advisory points
- Harder to park than a two-wheeler
Description
CUBE TRIKE HYBRID FAMILY 750 SWAMPGREY 24"
This is it: the CUBE hybrid bike that could, perhaps, replace a car. The Trike Hybrid Family 750 combines safety, ease of use and practicality in one easy-to-handle package, thanks to innovative design in collaboration with BMW and the power of Bosch's fourth-generation Cargo Line drive system. Up front, a Suntour Mobie34 Cargo suspension fork provides a comfortable ride on potholed city streets. Powerful disc brakes – and an additional parking brake – keep your speed in check, and there's an easy-to-use stepless hub gear to make light work of any route. A telescopic seatpost and stem, with adjustable reach for the handlebar, make it simple to set up for any rider. At the rear, the versatile cargo box with built-in (but removeable) seats, safety harnesses and rain cover makes it a cinch to take along your kids, the shopping, the recycling... whatever you need. And the unique tilt mechanism, combined with the stability of three wheels, means it's as easy to manoeuvre as any normal hybrid bike. We think it all adds up to one less car. How about you?
Frame description
The Trike Hybrid Family is so full of ingenious design detail, it's hard to know where to begin. A brand new concept in its own right and a co-development with input from BMW, it combines the easy handling of a 'normal' hybrid bike with the versatility of a load carrying machine and the safety and stability of three wheels. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough box is designed with a high back and sides to help protect your children. A built-in rain cover lifts on its own gas strut, and the versatile seating and safety harnesses can be quickly and easily stowed away if you want to carry a cargo load instead. There's even a storage compartment in the main frame, and the option to fit a front rack. Now... do you really need to take the car?
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
SR Suntour MOBIE 34 CARGO 24", 100mm
E-bike System
Engine
Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750 Axial
display
Bosch Kiox 300
Drivetrain and brakes
Front brake
Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
Rear brake
Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
Shifters
Enviolo Cargo manual
Crankset
Acid E-Crank, 170mm, 42T
Cassette
KMC 3mm, 18T
Chain
KMC e101 EPT
Cockpit
Headset
Acros FI-Link, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Cube Comfort Trail Bar, 700mm
Stem
Cube Comfort Stem Pro 31.8mm Adjustable
Bar tape or grips
Acid Travel Comfort Gripshift
Wheels
Rims
Cube EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
Front hub
Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
Rear Hub
Cube Trike Hub, Straightpull
Front tyre
Schwalbe Pick-Up, Super Defense, 65-507
Rear Tyre
Schwalbe Pick-Up, Super Defense, 65-406
Other parts
Saddle
Sequence Comfort
Seatpost
Satori Sorata 34,9mm, 280mm-440mm telescoping seatpost
Seatpost clamp
Cube Varioclose, 40mm
Pedals
Cube PP MTB
Front light
Acid Front Light PRO-E 110, 5-16V, DC
Rear light
Supernova T-M99
Kickstand
Ursus XXS
Mudguards
Acid 75
Bell
RING Bell
