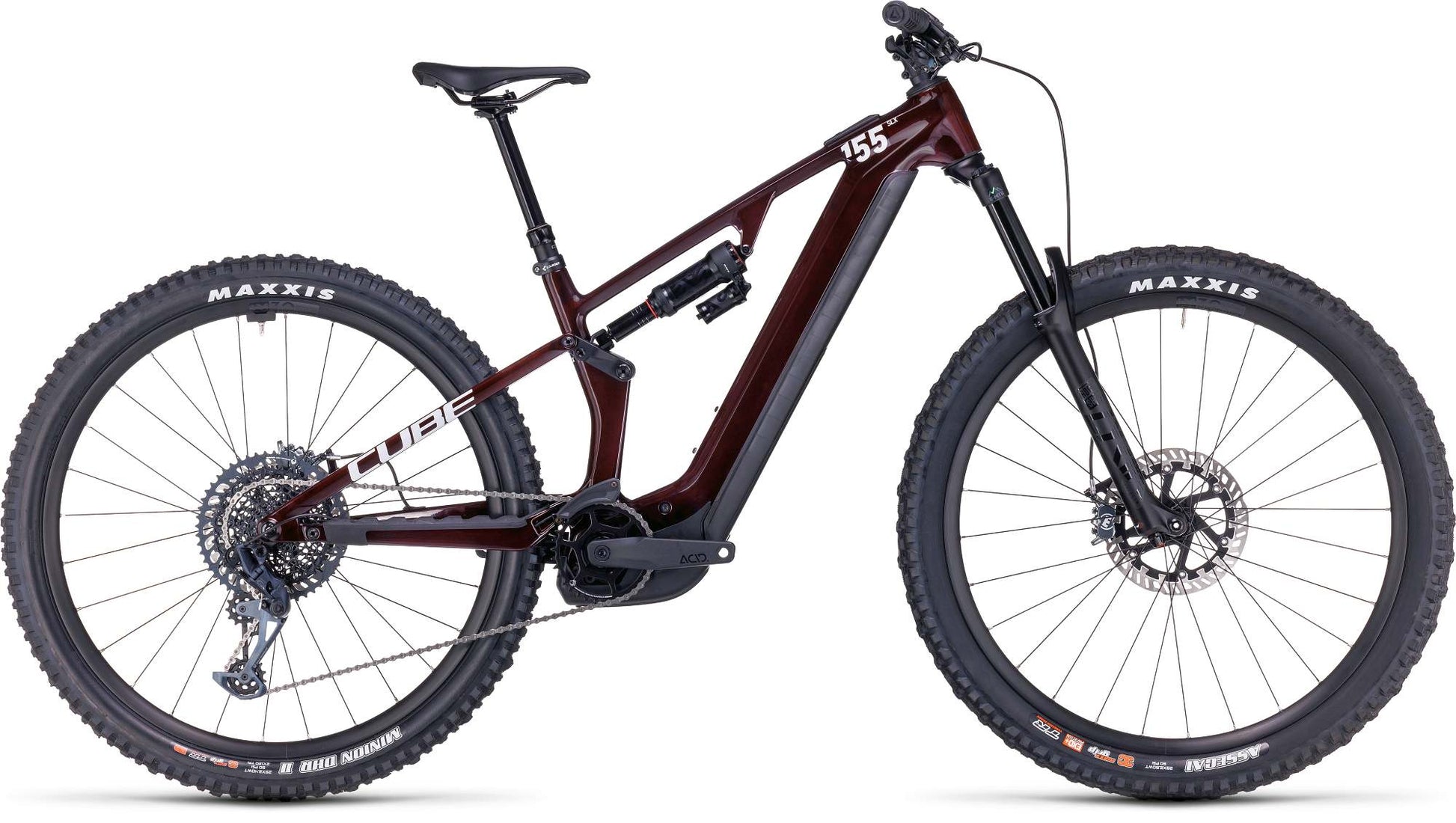

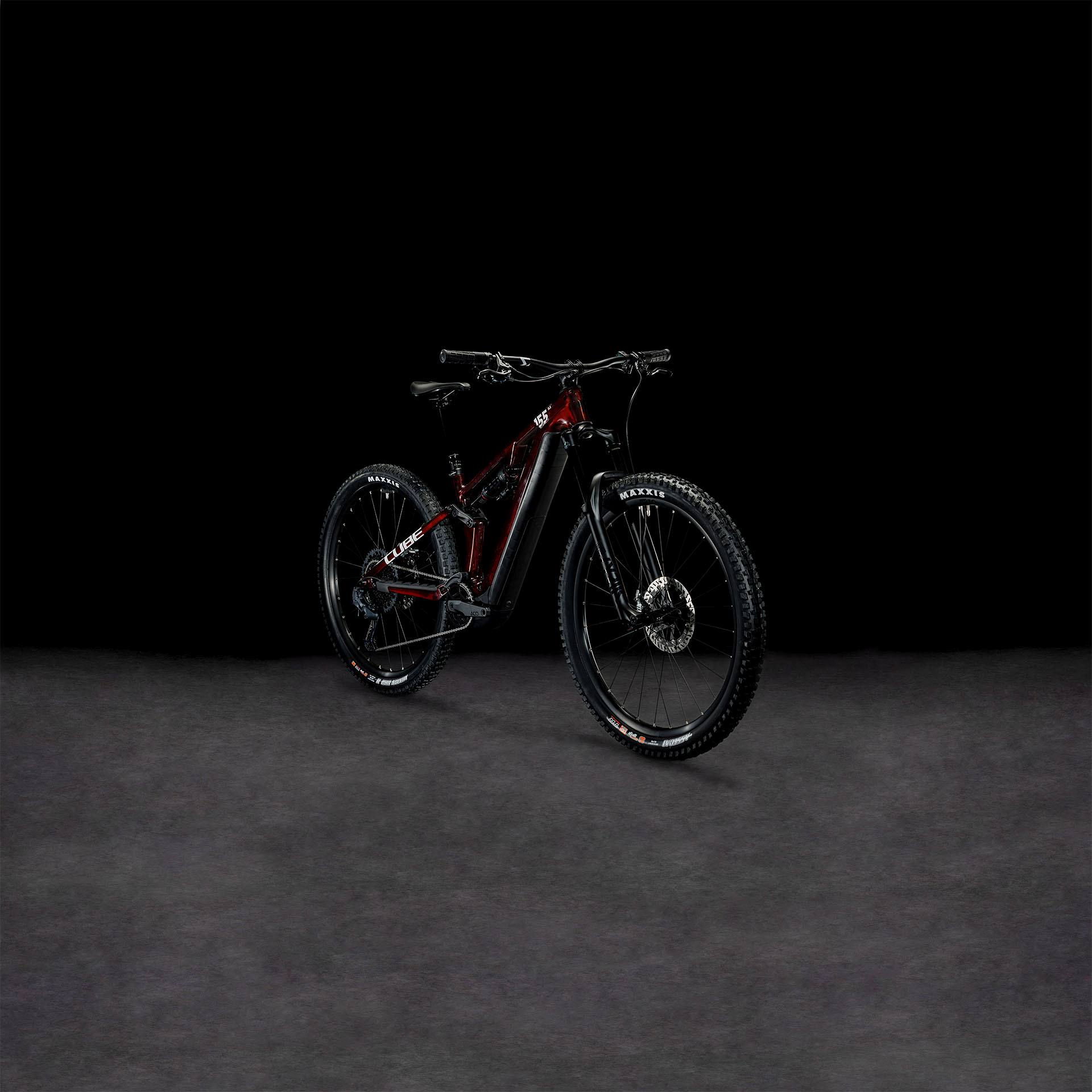

CUBE STEREO HYBRID ONE55 C:68X SLX 750 LIQRED
CUBE STEREO HYBRID ONE55 C:68X SLX 750 LIQRED
Plus Points
- Frame made of super light yet strong C:68X carbon
- Integration of motor, battery, and cables
- 155 mm rear travel, 160 mm front
- Bosch CX Smart System
- Integrated System Controller with wireless Mini-Remote
- Large 750 Wh battery
- CUBE Agile Trail geometry: lively and stable
- Adjustable head tube angle
- Powerful hydraulic disc brakes with extra large rotors
- 12-speed transmission with 10-52 tooth cassette
- Extra sturdy and highly grippy 2.4/2.5 inch tires from Maxxis
- Wirelessly adjustable seat post
- Size Split sizing: 27.5 inch wheels in small frame sizes, 29 inch wheels in large sizes
Advisory points
- The Stereo Hybrid ONE55 C:68X TM is lighter
- A bit less versatile than the Stereo Hybrid 140 HPC
Description
CUBE STEREO HYBRID ONE55 C:68X SLX 750 RED M

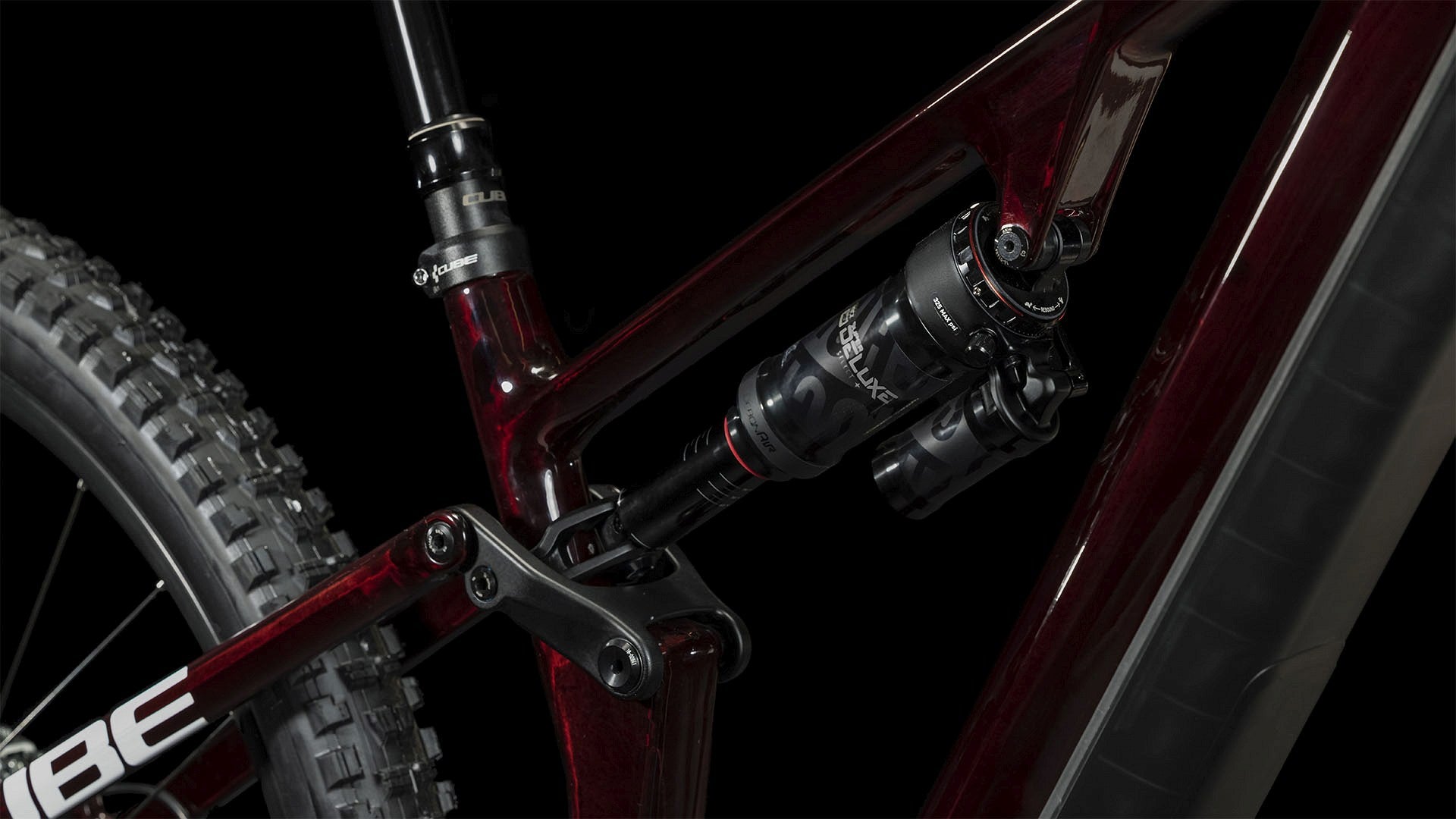

Faster, lighter, more capable: the Stereo Hybrid ONE55 C:68X SLX 750 29 blends the mountain-taming capability of a downhill-orientated machine with the speed and agility of our lightest ever carbon hybrid intube full suspension frame to create a versatile all-rounder. With up to 85Nm of torque from the proven fourth generation Bosch CX drive, a 750Wh battery and intuitive control from the built-in controller and optional remote, it's got the power to take on any trail. Up front there's a 160mm RockShox Lyrik Select+ fork, and we fitted a Super Deluxe Select+ shock at the rear for 150mm of progressive travel. Fast-rolling Newmen Performance wheels are shod with Maxxis Assegai 2.5in and Minion DHR II 2.4in tyres and brought to a halt with Magura's powerful four piston hydraulic disc brakes and oversize rotors at both ends. And Sram GX Eagle 1x12 gears get your power to the trail, for miles of effortless shifting. It's ready. Are you?
Frame description

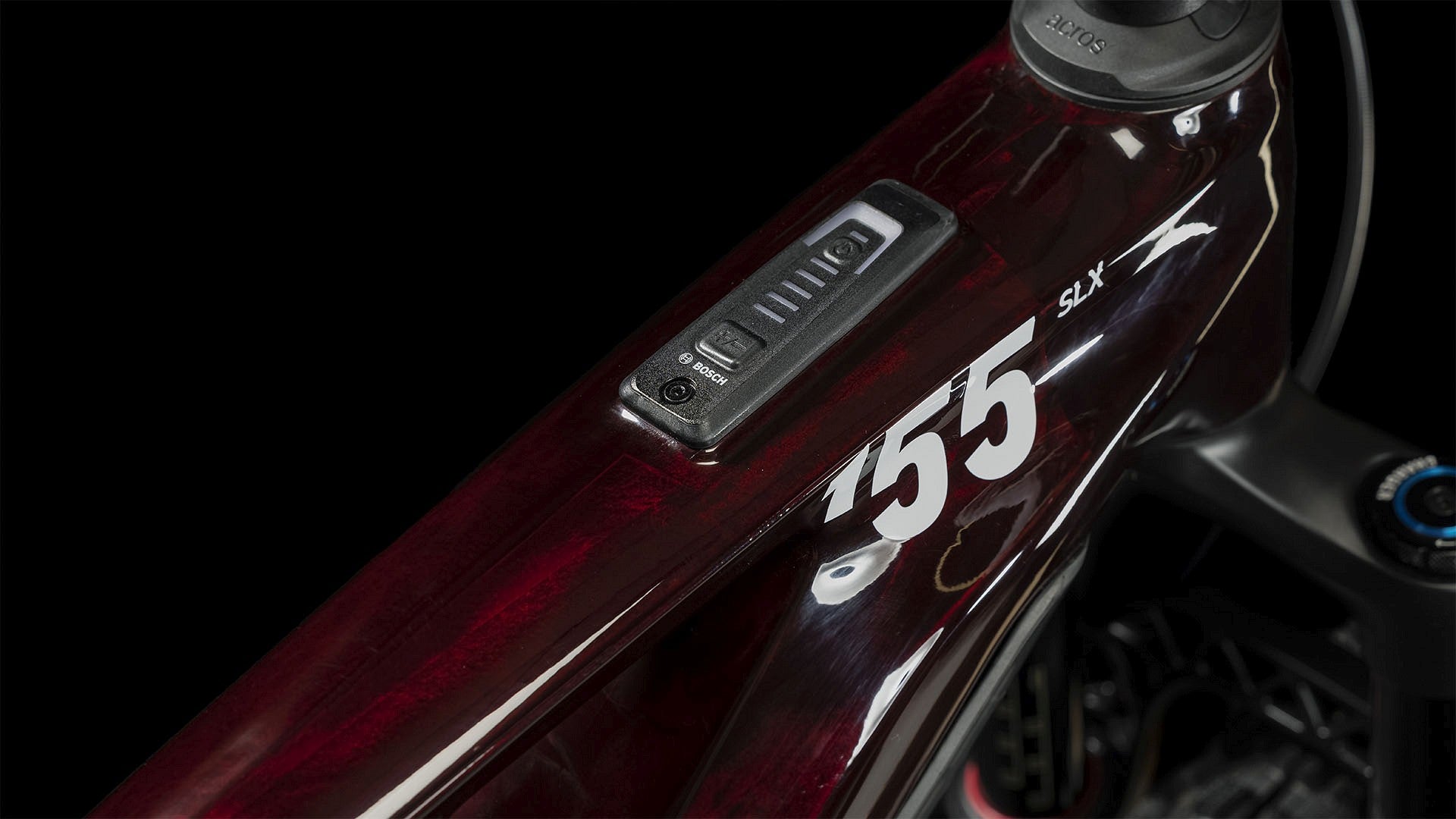

Light weight. Speed. Integration. These are the defining qualities of the new Stereo Hybrid ONE55 C:68X, which makes use of up to six different fibre types to meet the specific demands of each part of the frame. The result is a chassis that's the lightest e-mtb intube frame we've ever built – up to 20% lighter compared to our Stereo Hybrid 140 frame – combined with best-ever stiffness and, as you'd expect, a superior ride. An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and Bosch's new controller is neatly housed inside the top tube and can be controlled via Bluetooth from the optional remote. It's the complete package.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024

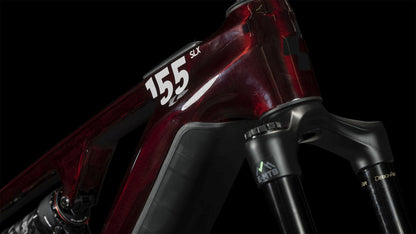

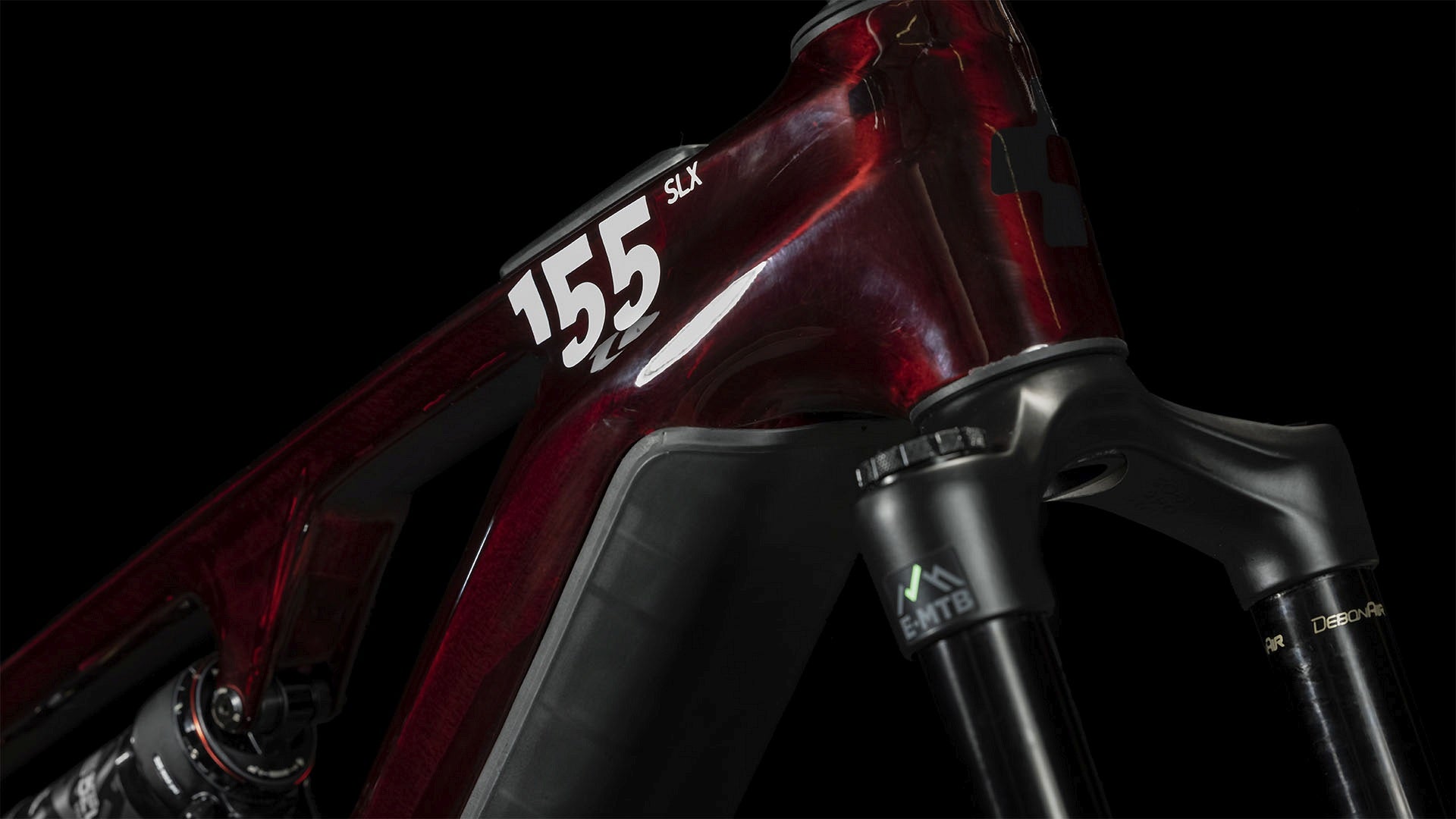

Fork
Rockshox Lyrik Select+ Charger 2 RC DebonAir, Tapered, 15x110mm, eMTB Approved, 160mm
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Drivetrain and brakes
Front brake
Magura MT7, Hydr. Disc Brake (203/203)
Rear brake
Magura MT7, Hydr. Disc Brake (203/203)

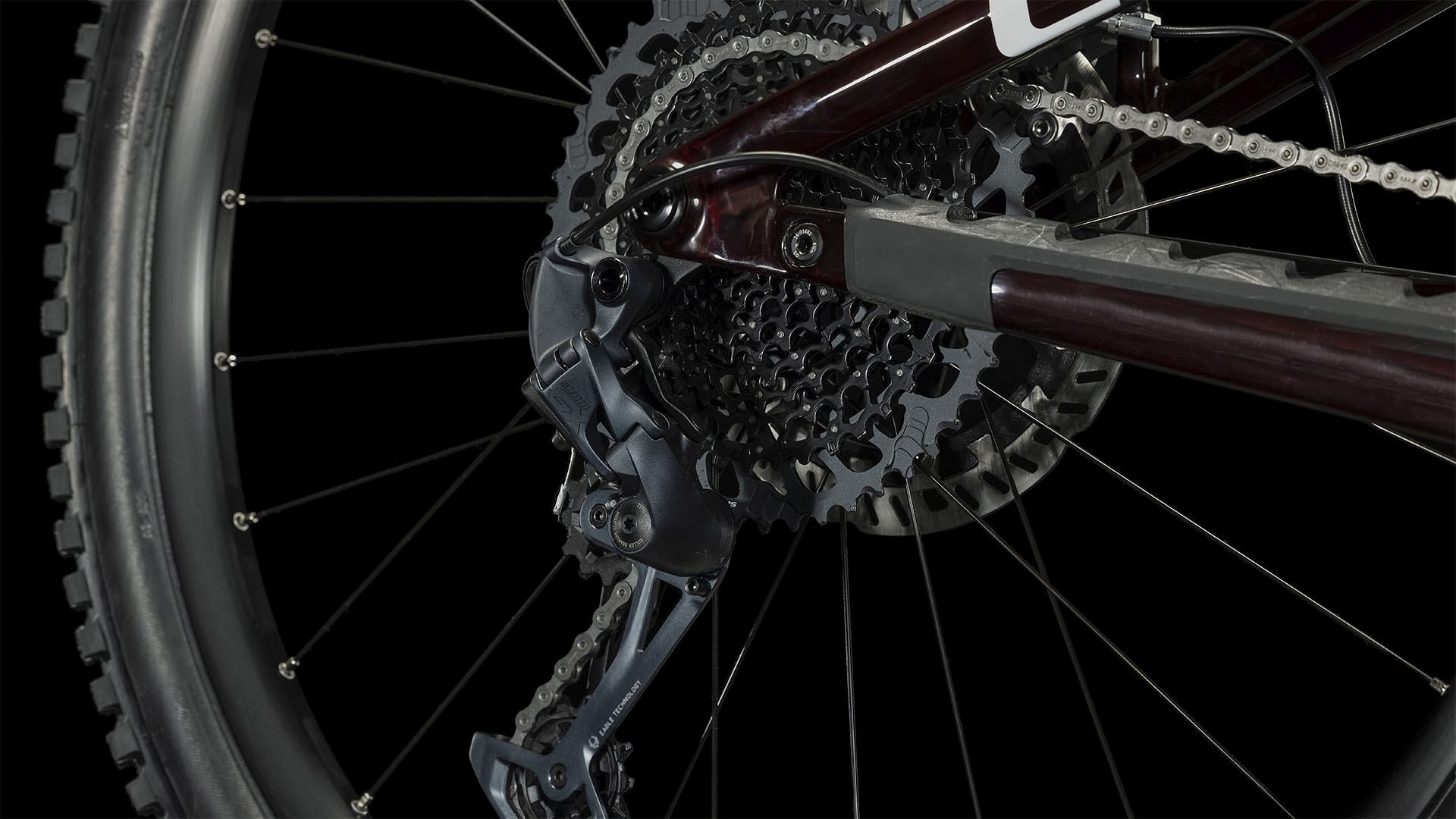

Rear derailleur
Sram GX Eagle™, 12-Speed
Shifters
Sram GX Eagle™ Trigger, Single Click
Crankset
Acid E-Crank, 34T, 165mm
Cassette
Sram XG-1275 Eagle™, 10-52T

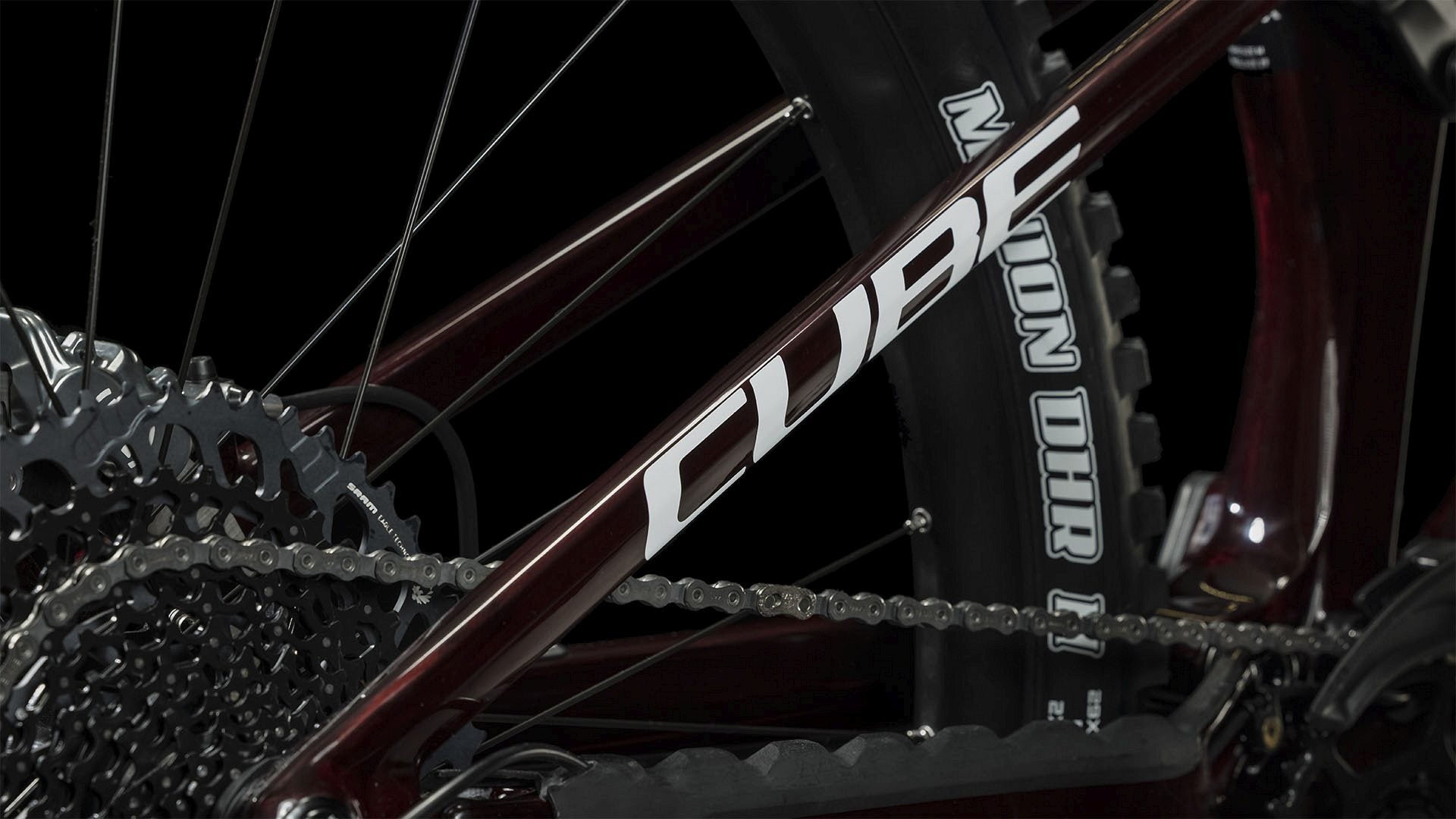

Chain
Sram NX Eagle™
Cockpit
Headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar
Newmen Evolution SL 318.25, 780mm
Stem
Newmen Evolution SL 318.4, 31.8mm
Bar tape or grips
Acid Disrupt, Soft Compound
Wheels
Wheels
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Rear Tyre
Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
Other parts
Saddle
Venec
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp
Cube Screwlock, 34.9mm
Pedals
NONE
