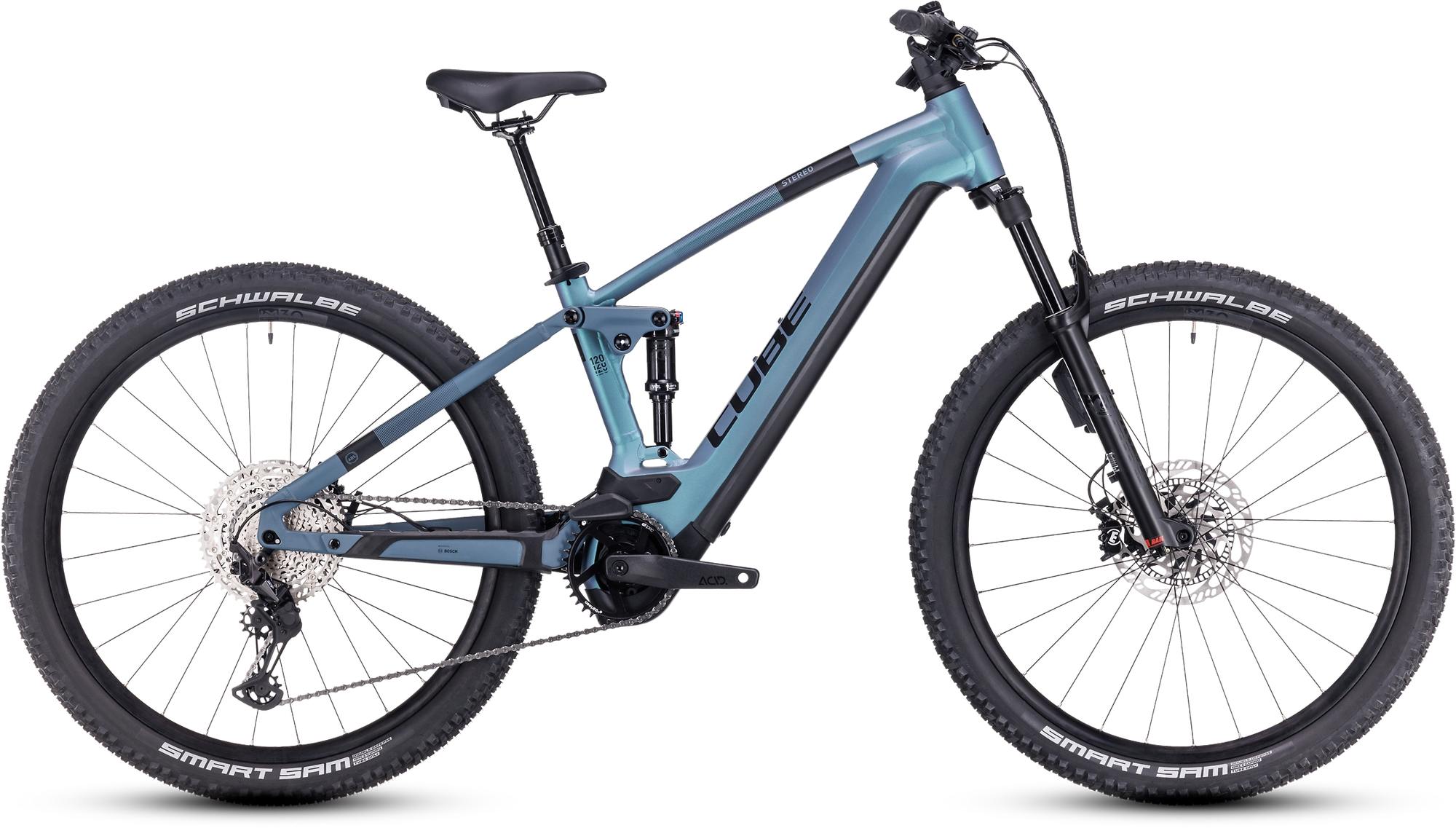

CUBE STEREO HYBRID 120 ABS 750 SMARAGDGREY/BLUE
CUBE STEREO HYBRID 120 ABS 750 SMARAGDGREY/BLUE
Plus Points
- Light yet strong frame made of Superlite aluminum
- Bosch ABS braking system
- Comfortable and easily adjustable air suspension
- Full integration of motor, battery, and cables
- Large range thanks to 750 Wh battery
- CUBE Agile Comfort geometry: agile and comfortable
- Size Split: 27.5 inch wheels in the small sizes and 29er wheels in the large sizes
- Powerful hydraulic disc brakes with extra large brake discs
- Practical 12-speed Shimano XT drivetrain with 10-51 tooth cassette
- Seat post adjustable from the handlebar (dropper post)
- Extra comfortable and grippy 2.6 inch tires
- Integrated mounting points for fender, kickstand, and luggage rack
Advisory points
- A hardtail is lighter
- ABS increases the price
Description
CUBE STEREO HYBRID 120 ABS 750 GREY/BLUE S
When you're exploring off the beaten path, it's good to know your bike won't let you down. That's why the Stereo Hybrid 120 ABS features Bosch's sophisticated second-generation anti-lock brake system to reduce stopping distances in complete safety, giving you more control. The lightweight, integrated system works seamlessly with Magura's CT eSTOP Allroad ABS brakes to modulate front brake power, while the powerful fourth-generation Bosch CX motor and Shimano XT 1x12 gears make light work of any route. There's a dropper post for extra comfort and control on steep trails, a light and strong Newmen wheelset with 2.6in Schwalbe tyres for sure-footed grip, and a Fox 34 AWL fork and Fox Float DPS Performance shock for comfort and control.
Frame description

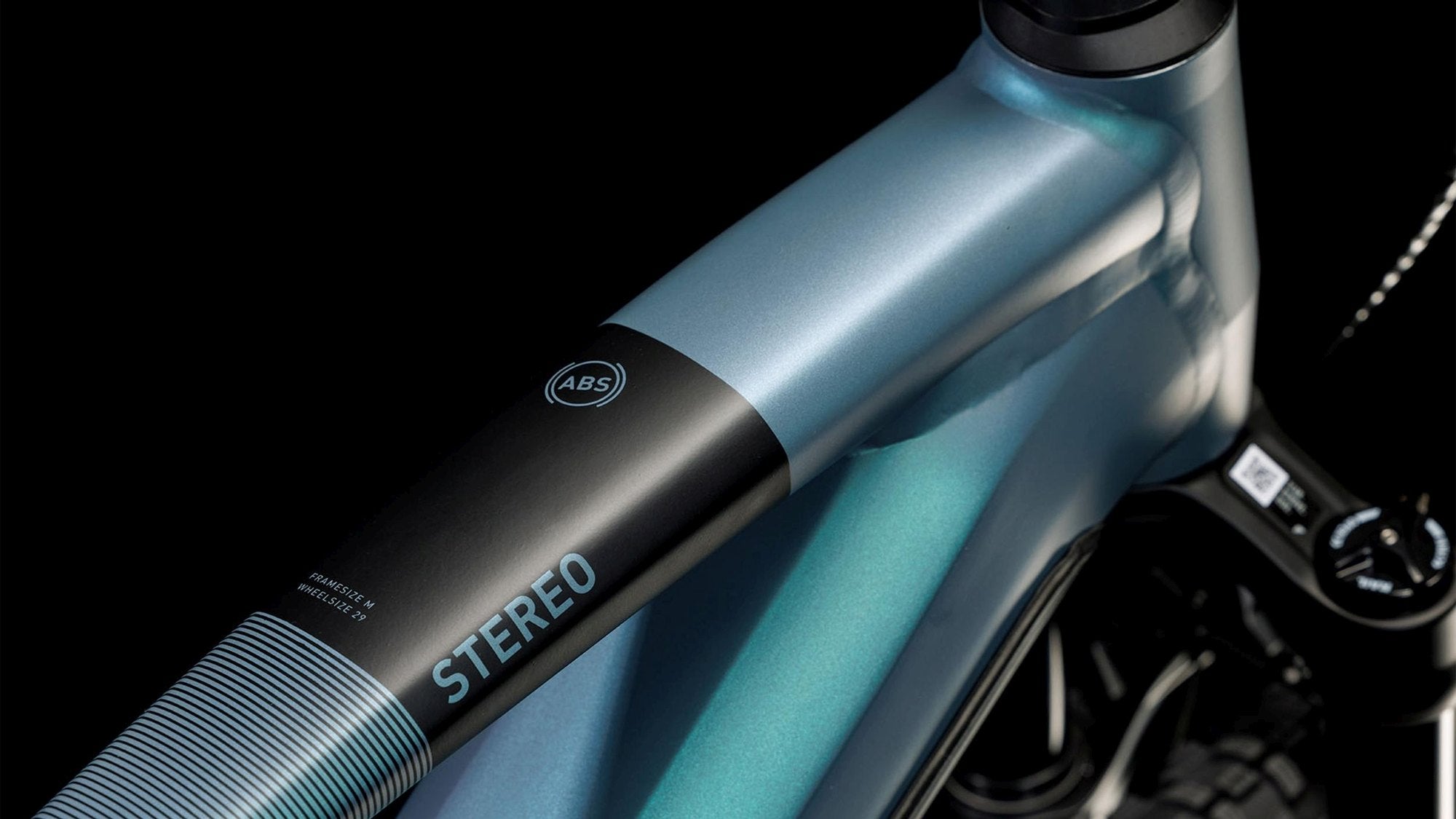

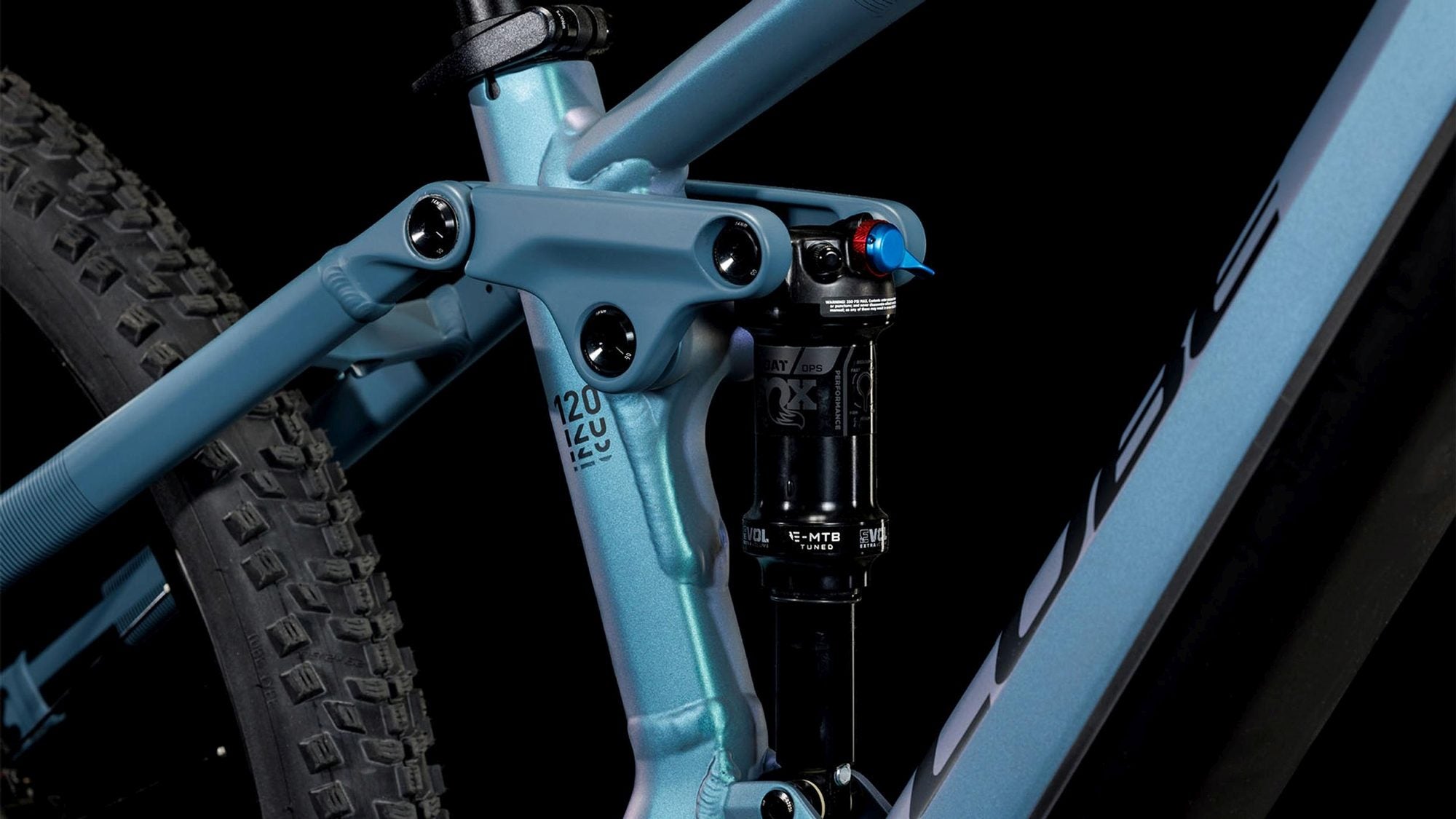

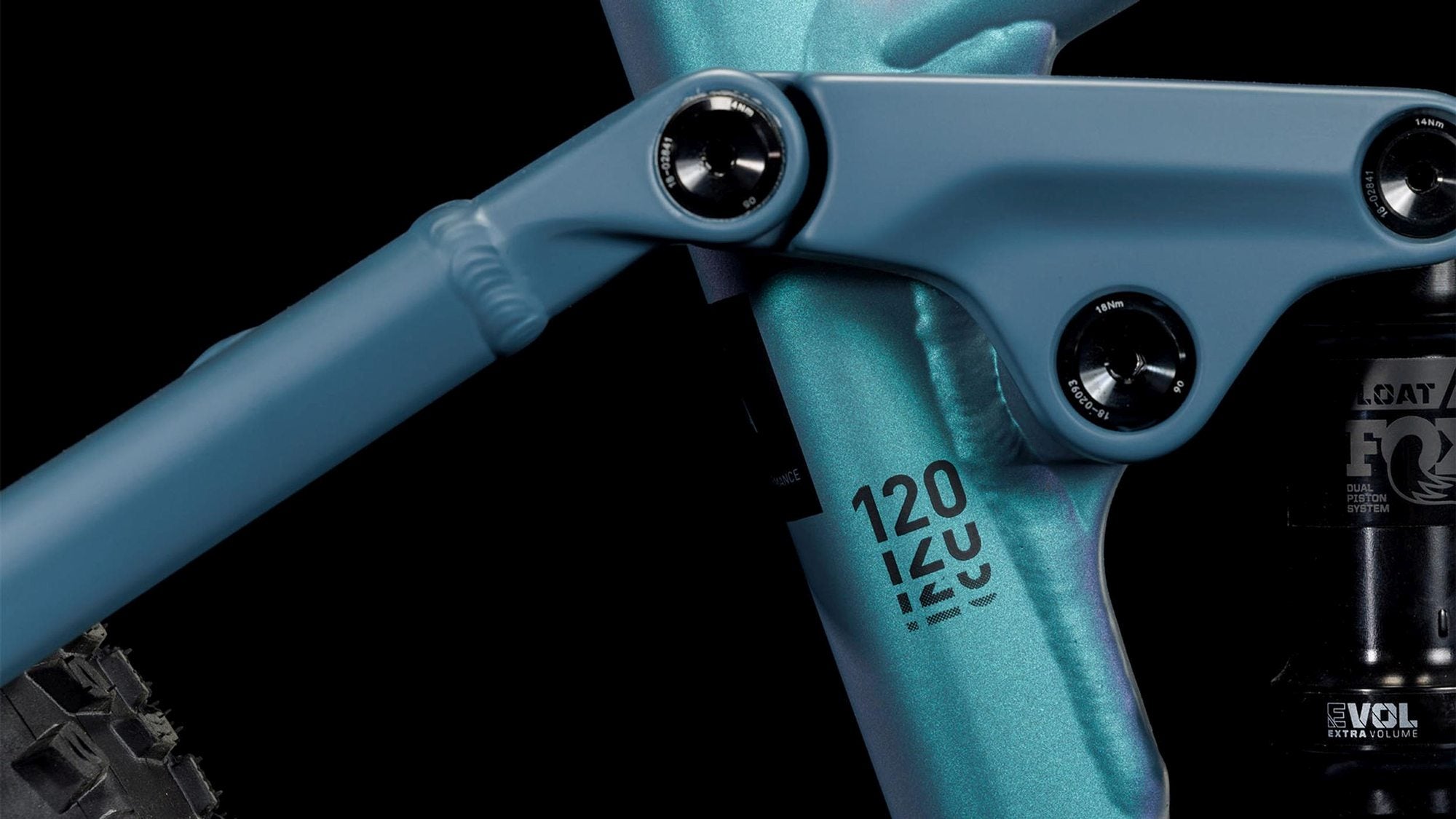

The Stereo Hybrid's sleek frame is full of clever touches to make our popular, Bosch-powered trail explorer better than ever. The Modular Battery System tucks the Bosch battery – up to 750Wh – out of sight, and out of the way of dust and water. Integrated cable routing isn't just neat, it also means there are no cable holes in the head tube. The refined four-bar suspension system keeps you isolated from trail shocks for ride-all-day comfort, and the whole lot is wrapped in our Comfort Geometry – with a stiffness-enhancing Boost 148 rear end and 1.5in head tube – for easy handling, plus SizeSplit makes it simple for every rider to find their perfect match. We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand. It's ready for pretty much anything. Are you?
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork

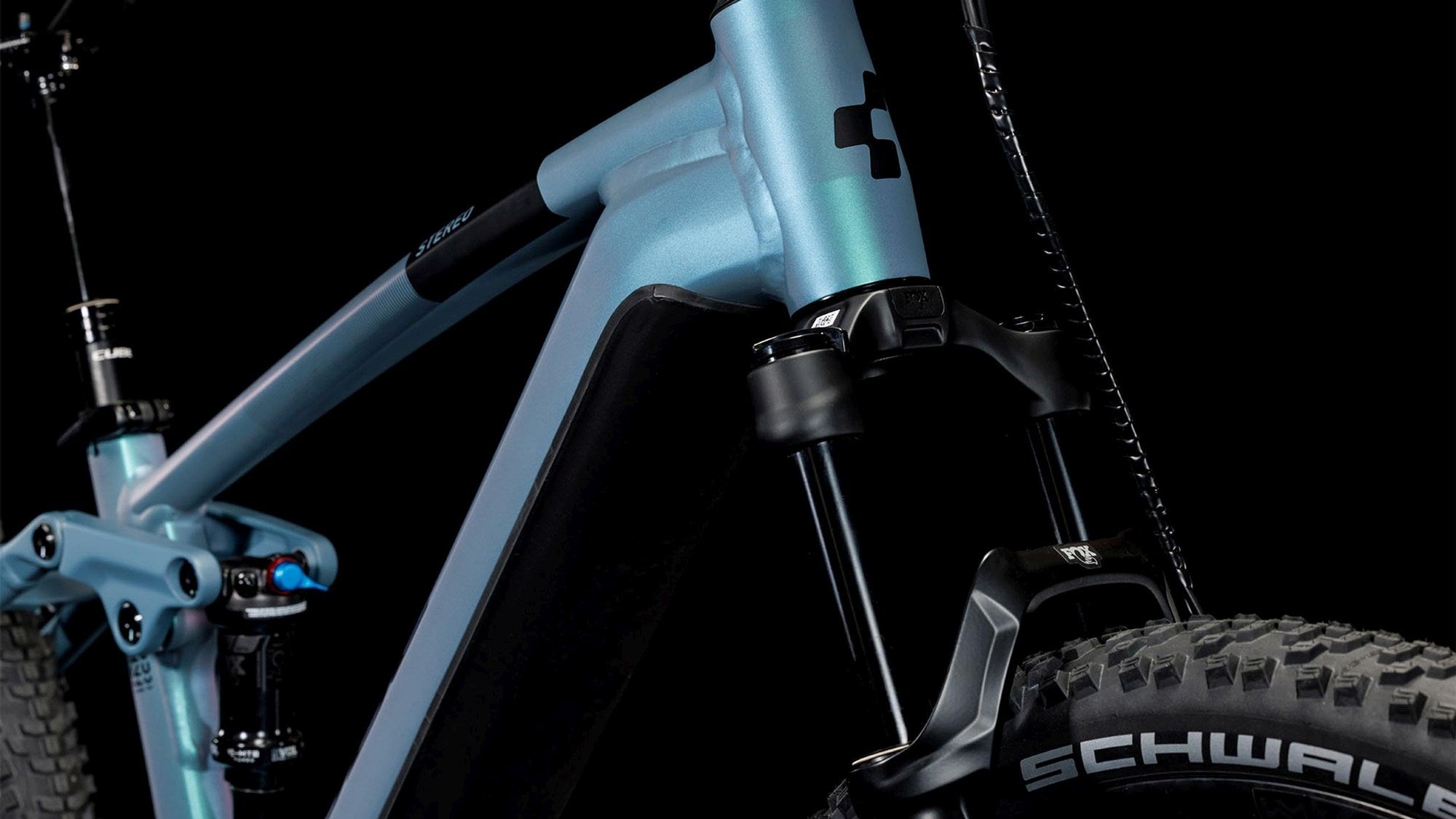

Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
display
Bosch Kiox 300
Drivetrain and brakes
Front brake

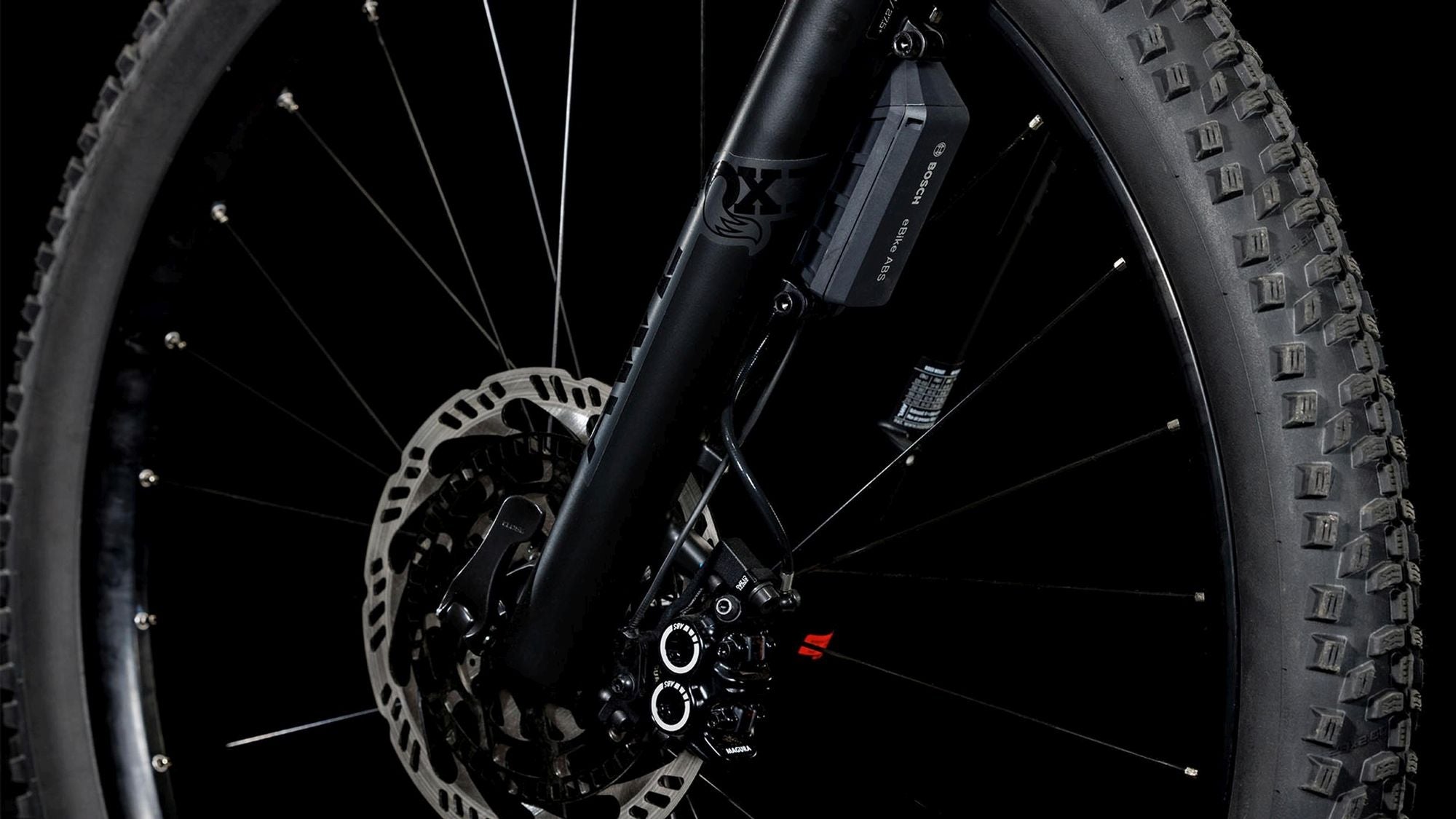

Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203)
Rear brake
Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203)
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100, Rapidfire-Plus
Crankset
Acid E-Crank, 170mm, 38T
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Cockpit
Headset
AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Newmen Evolution SL 318.25, 760mm
Stem
Cube Performance Stem E-MTB, 31.8mm
Bar tape or grips
Acid Hybrid Perform
Wheels
Wheels
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre
Schwalbe Smart Sam, Performance, 2.6
Rear Tyre
Schwalbe Smart Sam, Performance, 2.6
Other parts
Saddle
Sequence
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Seatpost clamp
Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm
Pedals
Acid PP MTB
