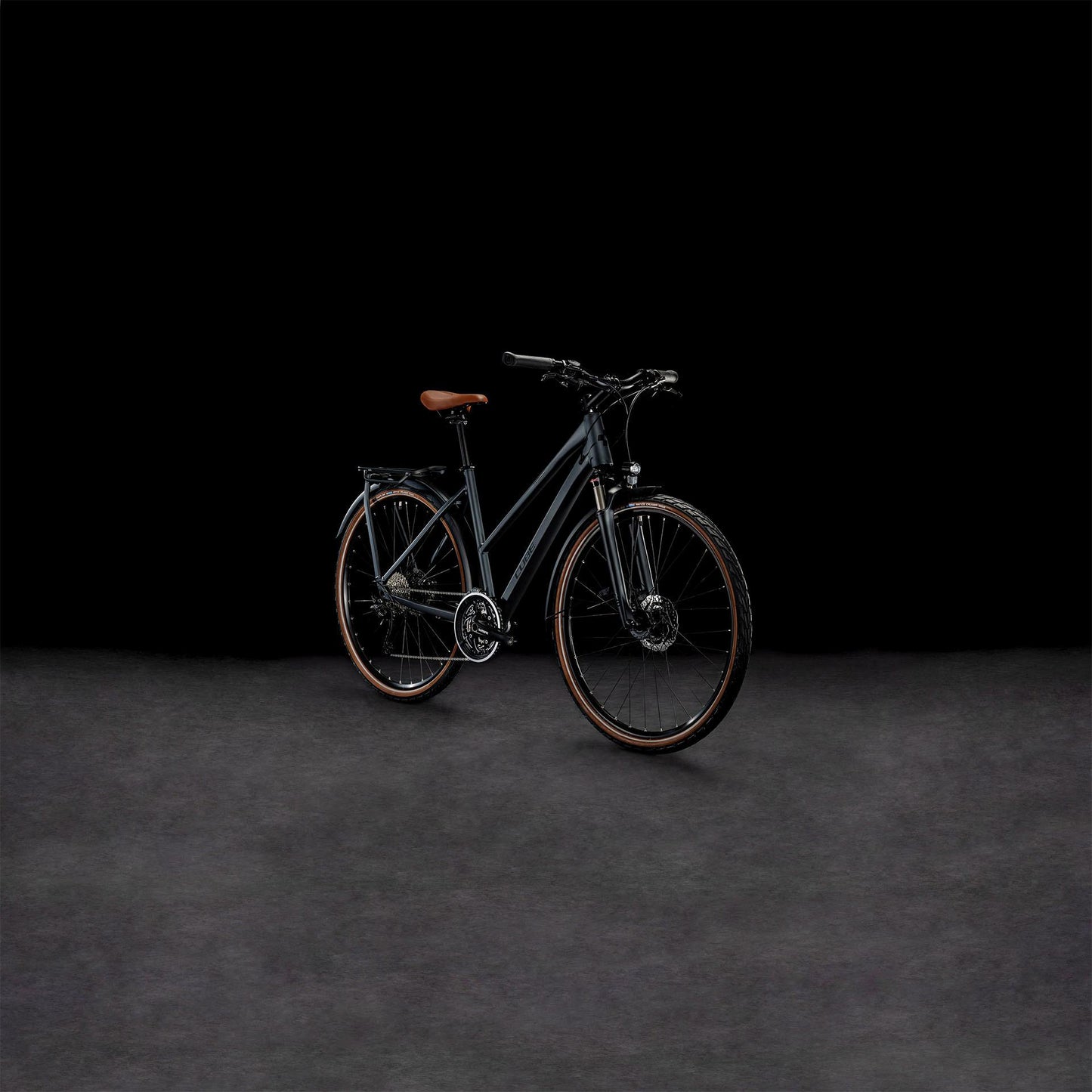

CUBE KATHMANDU PRO GREY/BLACK
CUBE KATHMANDU PRO GREY/BLACK
Plus Points
- Frame made of high-quality Superlite aluminum
- Choice of men's or trapeze frame
- Stable and comfortable CUBE Trekking Comfort geometry
- Integrated luggage carrier
- Stable rear stand
- Sturdy thru-axle in rear hub
- Dynamo lighting
- Hydraulic disc brakes
- Lightweight front fork with 63 mm air suspension
Advisory points
- Less light than the Kathmandu EXC and SLX
- If you're looking for touring bikes with hub gears, check out the CUBE Travel models
Description
CUBE KATHMANDU PRO GREY/BLACK T XS
We designed the Kathmandu Pro to have everything you need and nothing that you don't. From the redesigned Integrated Carrier to the full-length mudguards, front and rear lights and CUBE FM kickstand, it's the practical everyday companion that's rugged enough to take on longer trips, too. A Suntour air suspension fork makes even the roughest roads smoother, for a more comfortable ride. Shimano's legendarily reliable 3x10 gears give you the range you need to make light work of any route. And Shimano hydraulic disc brakes ensure you can always stop safely, no matter what you're carrying or what the weather is throwing your way. Urban jungle or distant horizon, the Kathmandu Pro has got your back.
Frame description
We've taken everything that's good about the Kathmandu and made it even better. So, for example, the reworked Integrated Carrier 3.0 is designed to work seamlessly with our Acid mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush...
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
SR Suntour NCX D LO Air, 63mm, Lockout
Drivetrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear derailleur
Shimano XT RD-T8000, 10-Speed
Front derailleur
Shimano Deore FD-T6000, Top-Swing, 31.8mm
Shifters
Shimano Deore SL-M6000, Rapidfire-Plus
Crankset
Shimano FC-T551, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
Cassette
Shimano CS-HG500, 11-34T
Chain
KMC X10
Cockpit
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Handlebar
Cube Comfort Trail Bar, 660mm
Stem
Cube Performance Stem Pro, 31.8mm
Bar tape or grips
Acid Travel Comfort
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-MT400, 12mm, Centerlock
Front tyre
Schwalbe Range Cruiser, Active, 47-622
Rear Tyre
Schwalbe Range Cruiser, Active, 47-622
Other parts
Saddle
Sequence Comfort
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Screwlock, 31.8mm
Pedals
Acid PP Trekking
Front light
Cube Shiny 50
Rear light
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 56 Integrated Carrier 3.0
Carrier
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
