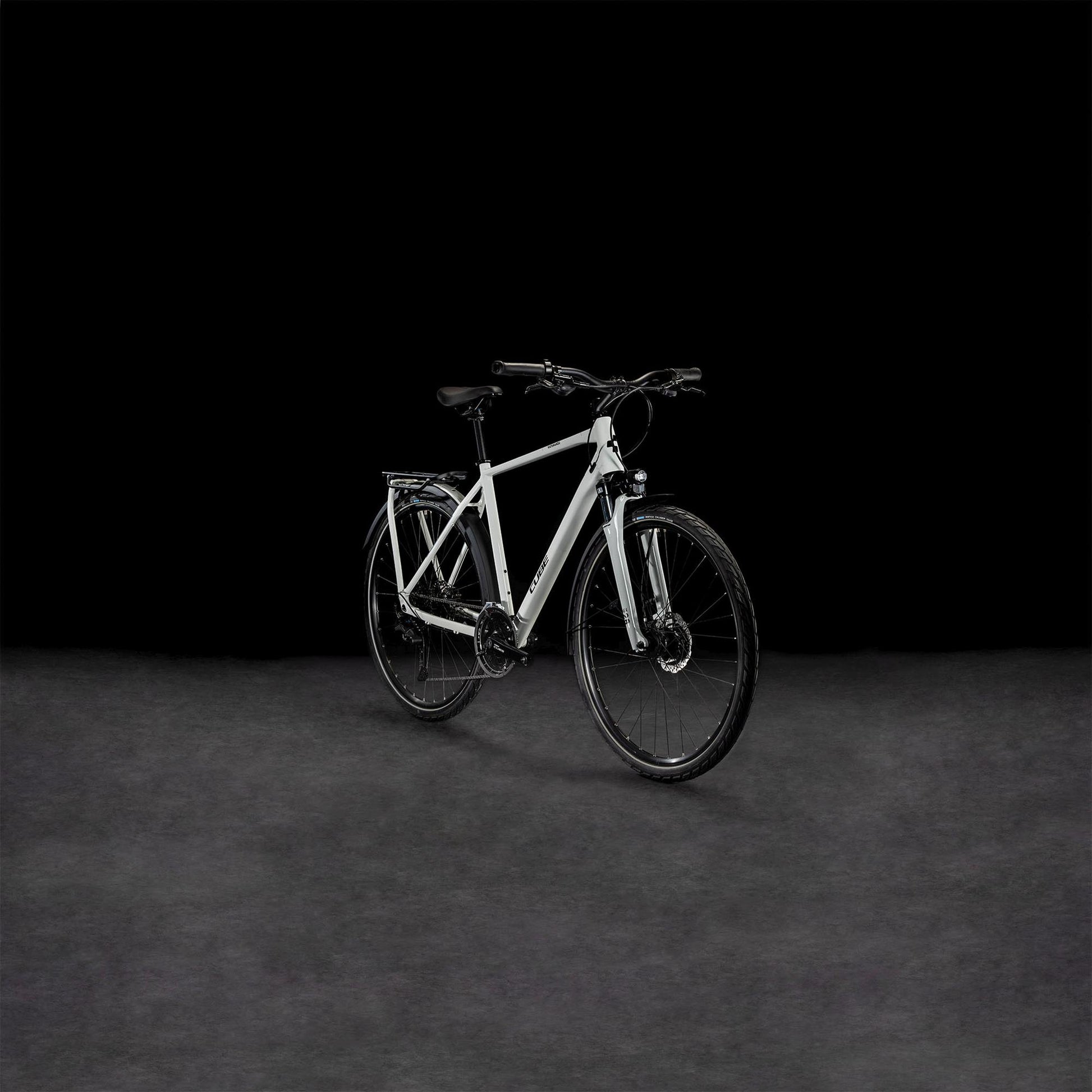

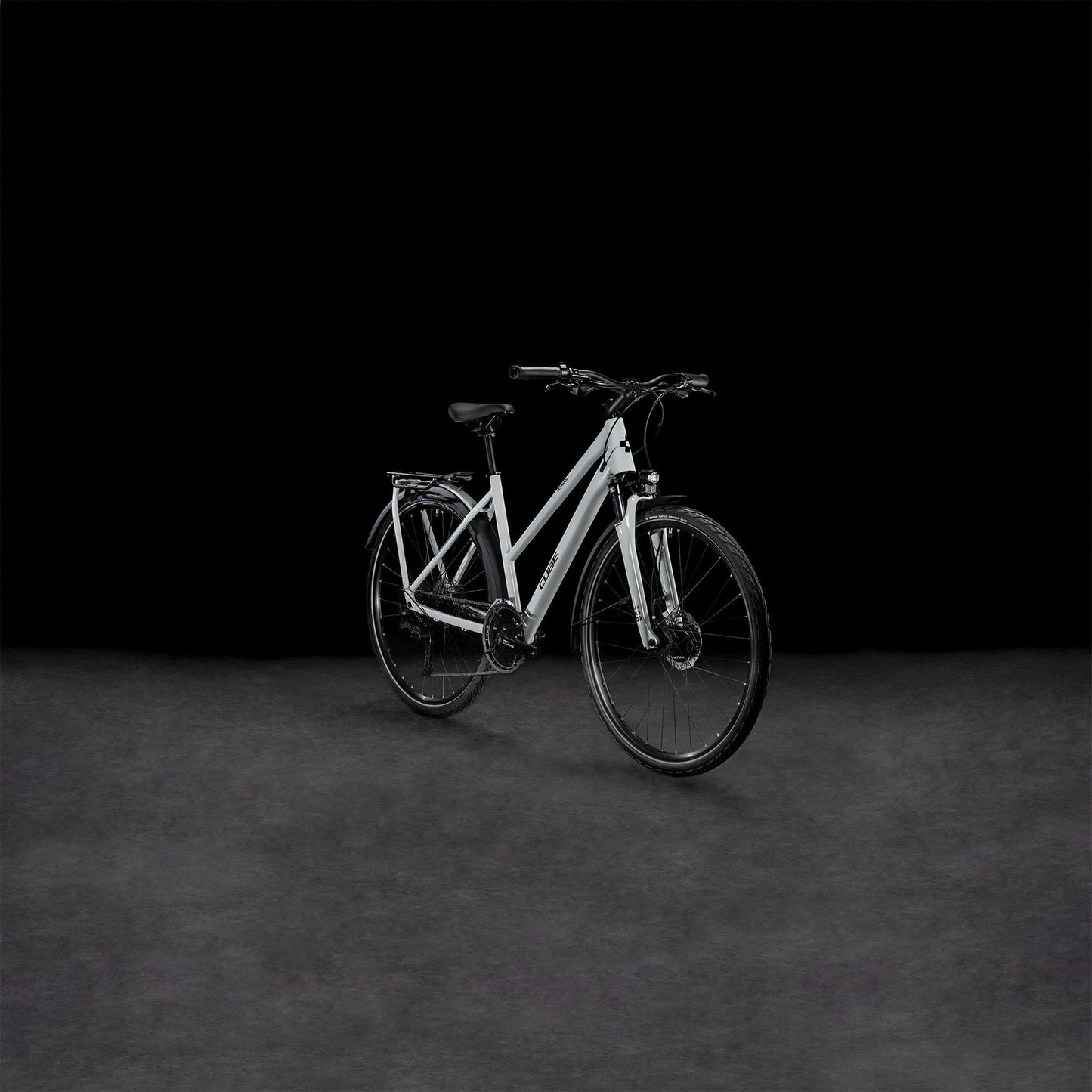

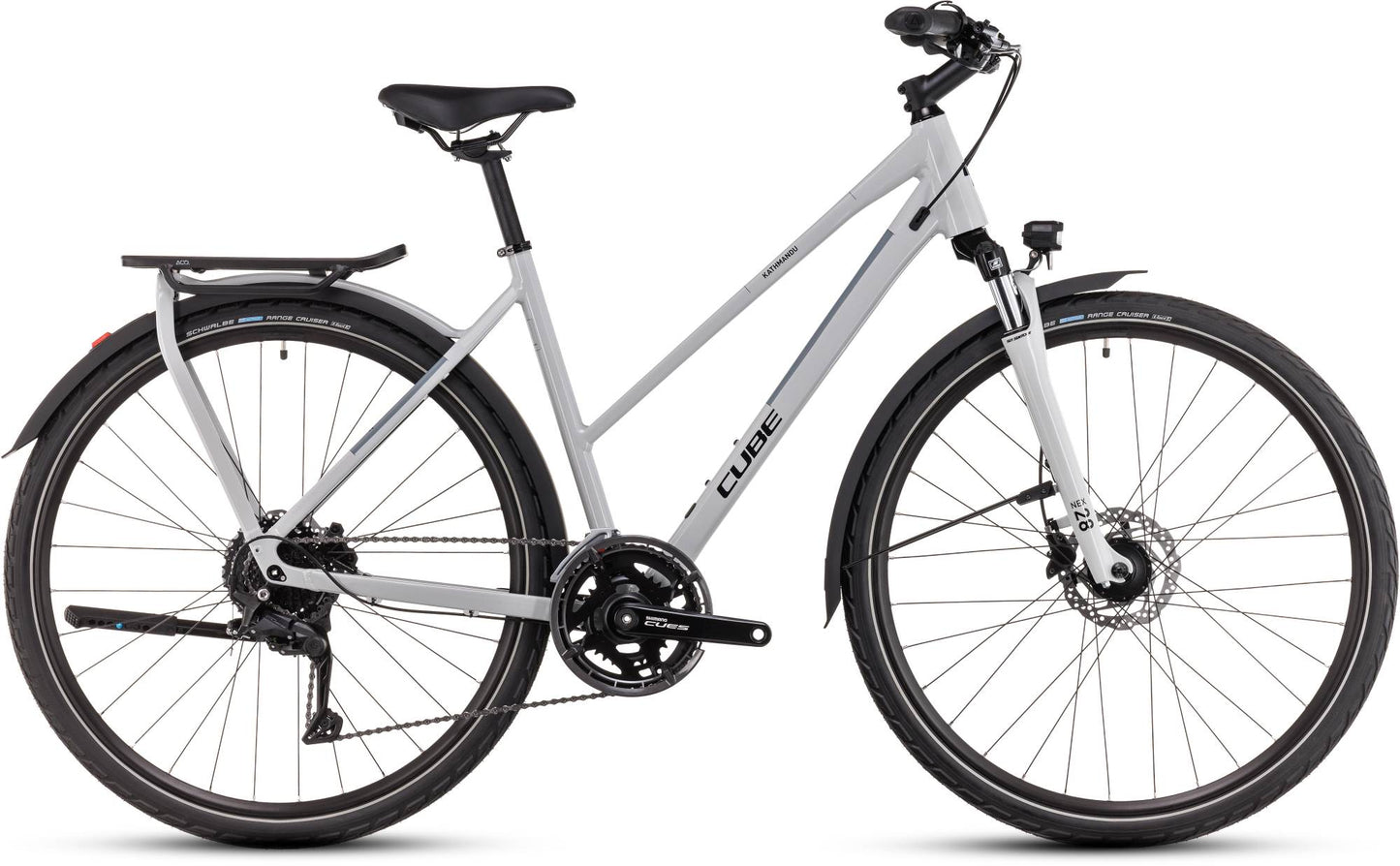

CUBE KATHMANDU ONE GREY/BLACK
CUBE KATHMANDU ONE GREY/BLACK
Description

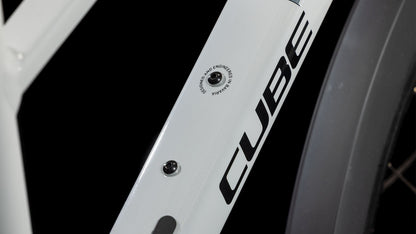

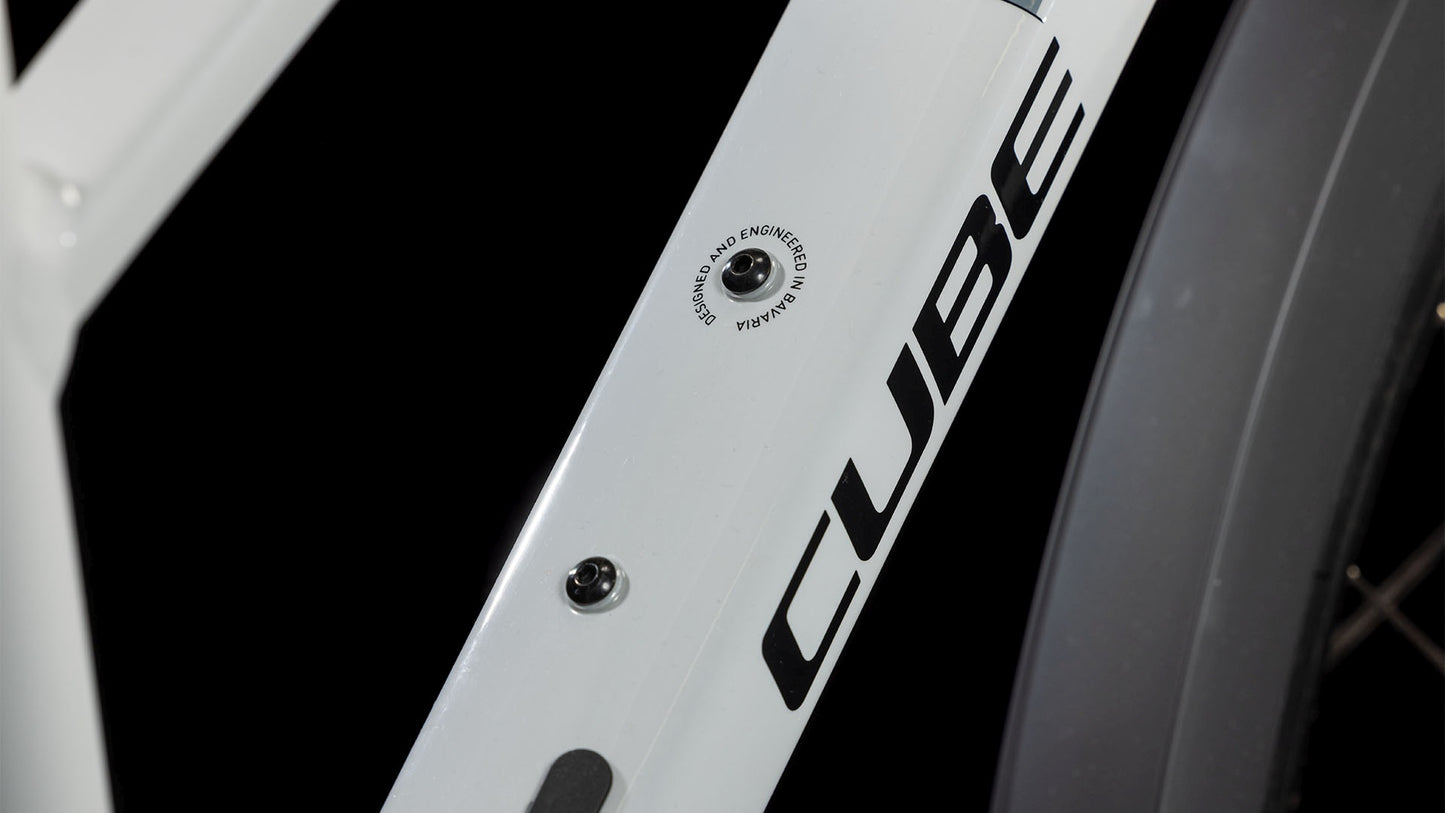

Frame description

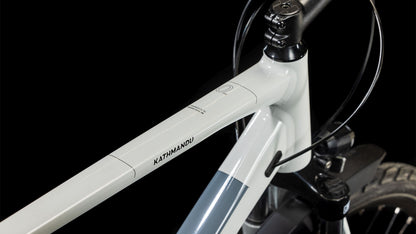

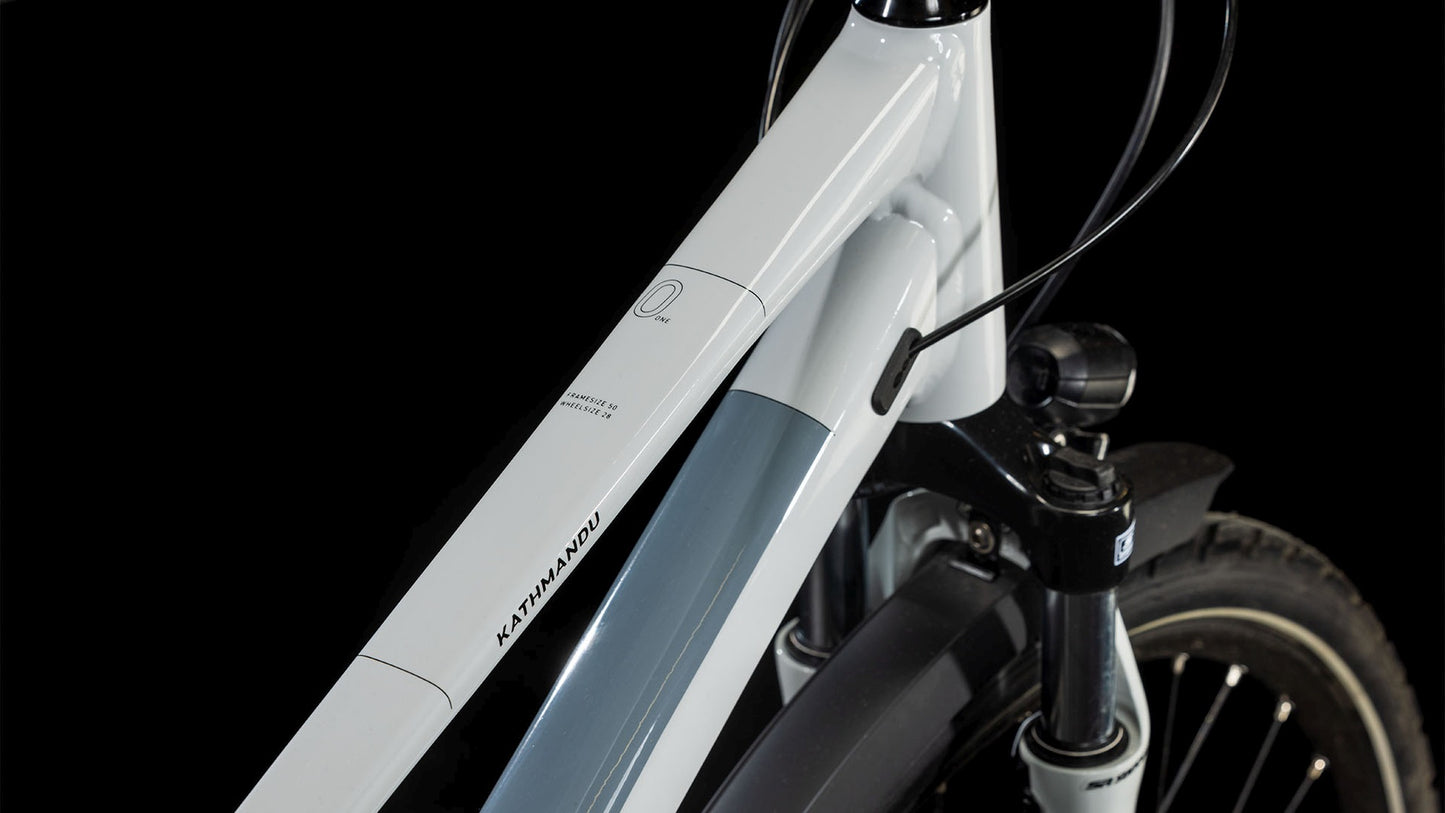

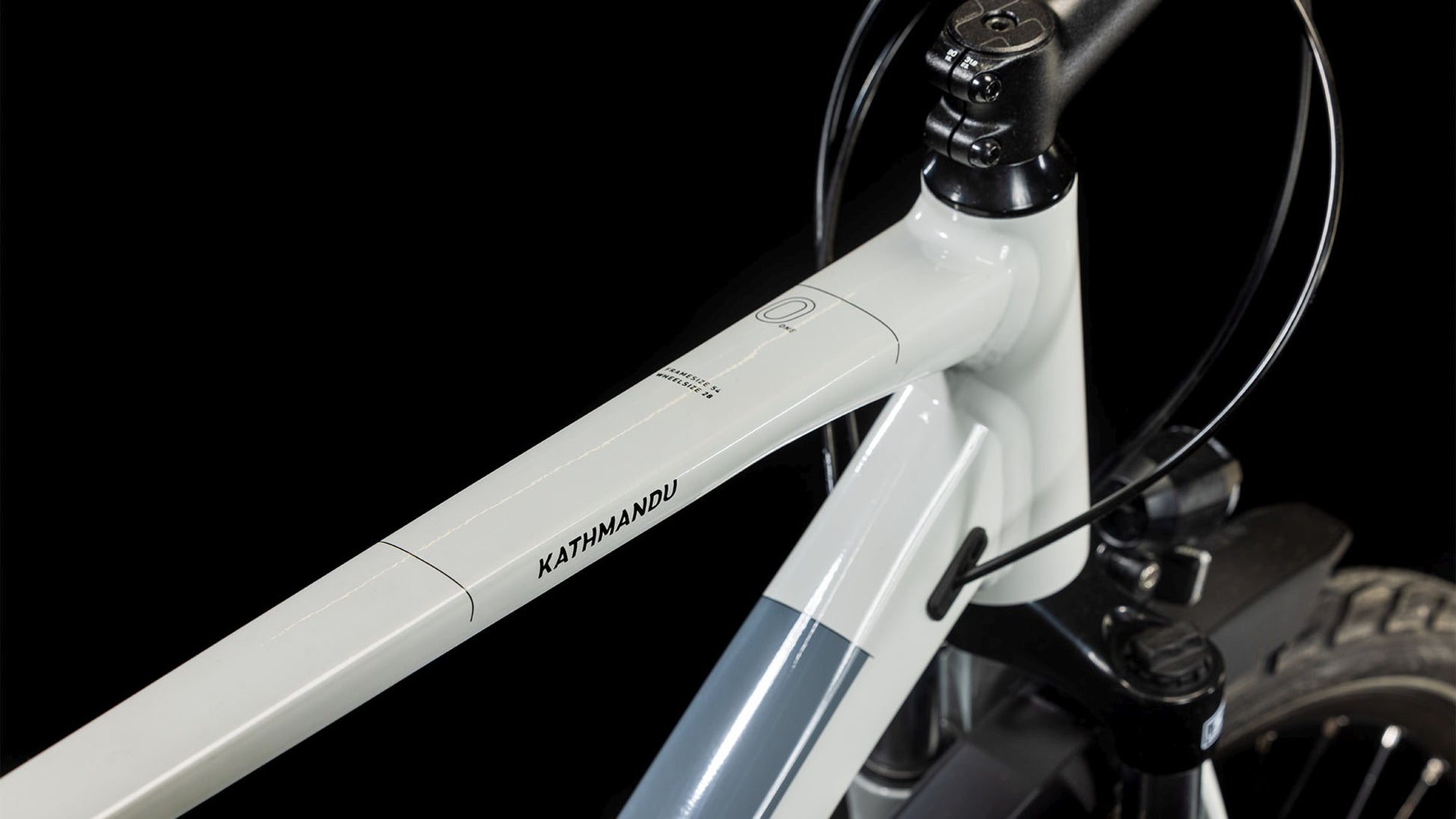

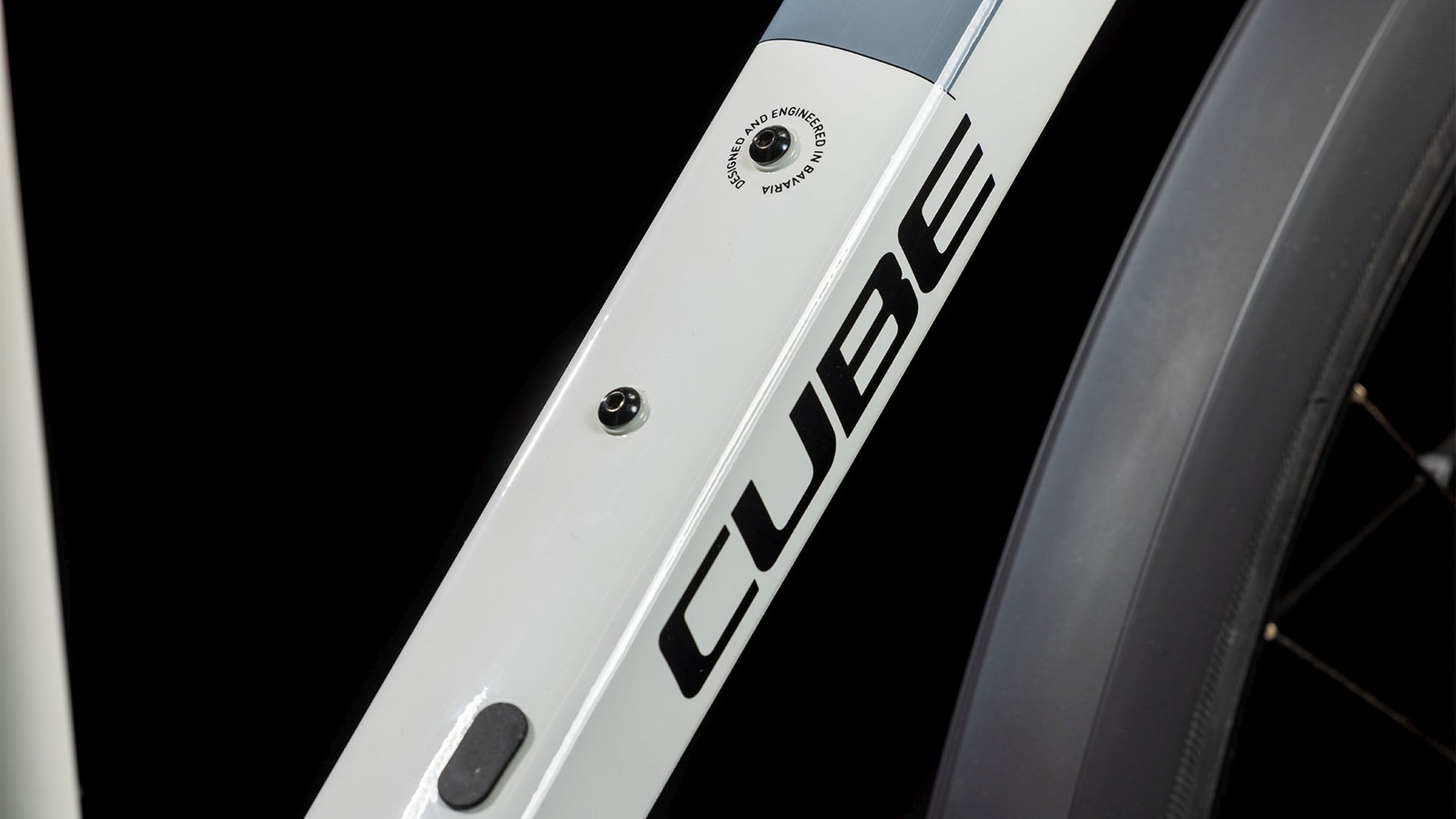

Attention to detail is a CUBE obsession. That's why, with the Kathmandu's Integrated Carrier 3.0, we designed it to work seamlessly with our Acid mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush.
Product specifications
Frame
Model year
2024
Fork
SR Suntour NEX, 63mm
Drivetrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear derailleur
Shimano Cues RD-U4020-SGS, 9-Speed
Front derailleur
Shimano Cues FD-U4010, Top-Swing, 31.8mm
Shifters
Shimano Cues SL-U4010- Rapidfire-Plus
Crankset
Shimano Cues FC-U4010, Hollowtech ll, 46x30T, Chainguard
Cassette
Shimano CS-LG300, 11-36T
Chain
Shimano CN-LG500
Cockpit
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Handlebar
Cube Comfort Trail Bar, 660mm
Stem
Cube Performance Stem Pro, 31.8mm
Bar tape or grips
Acid Travel Comfort
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-MT400, 12mm, Centerlock
Front tyre
Schwalbe Range Cruiser, Active, 47-622
Other parts

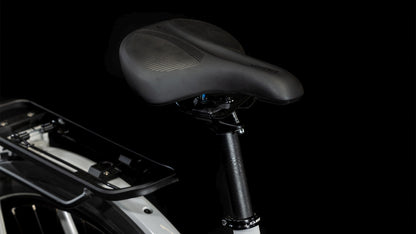

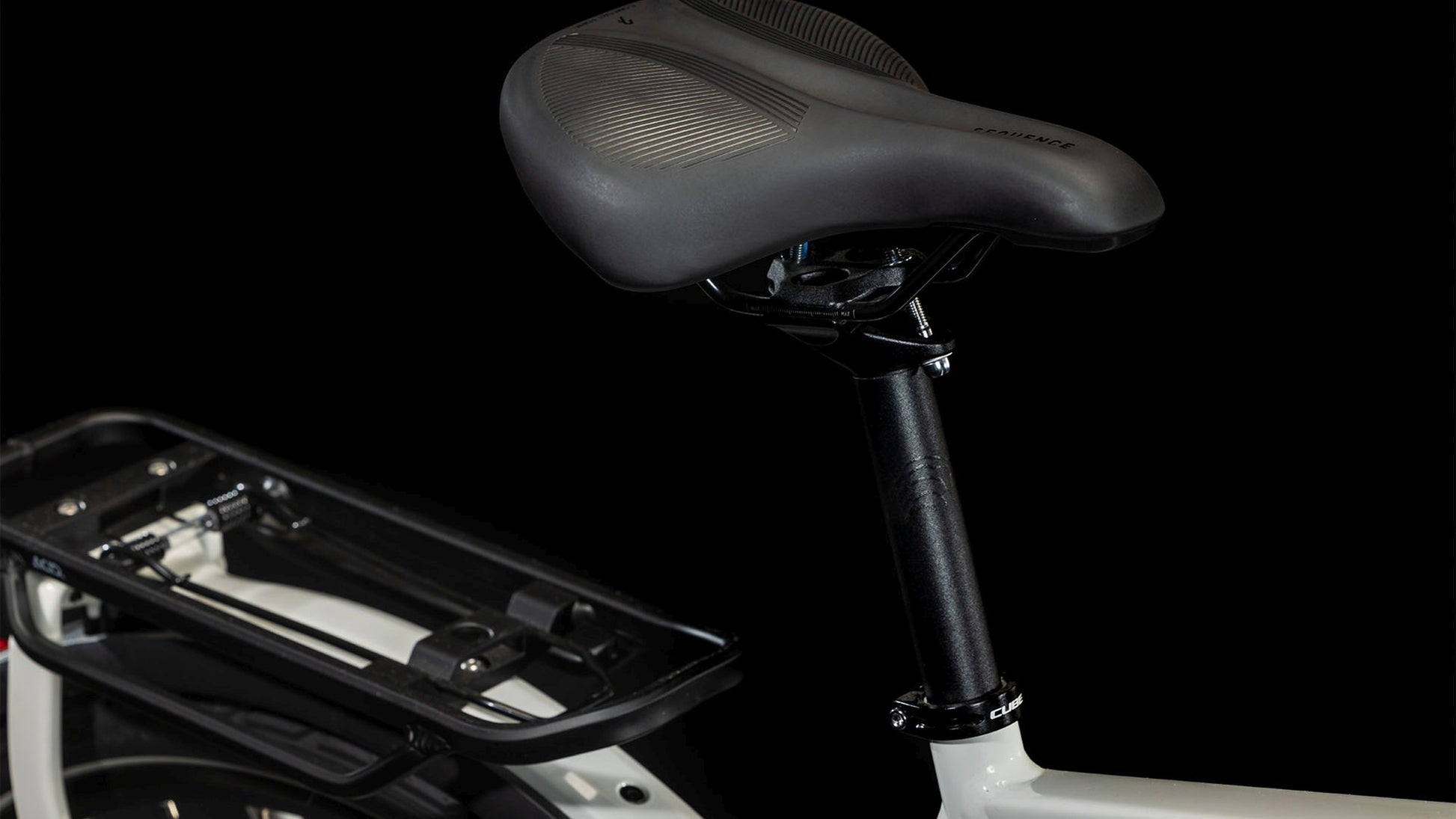

Saddle
Sequence Comfort
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Screwlock, 31.8mm
Pedals
Cube PP MTB

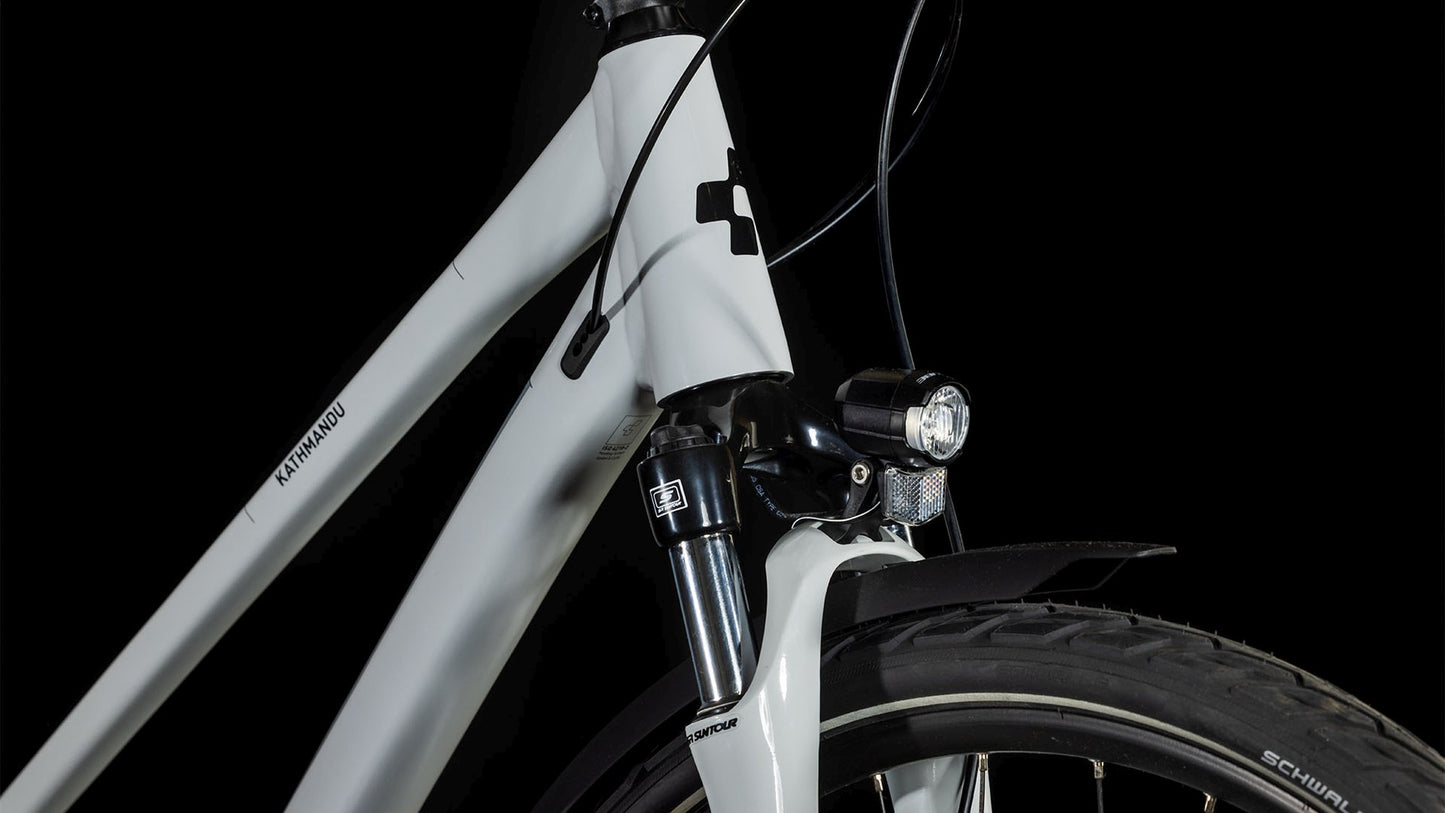

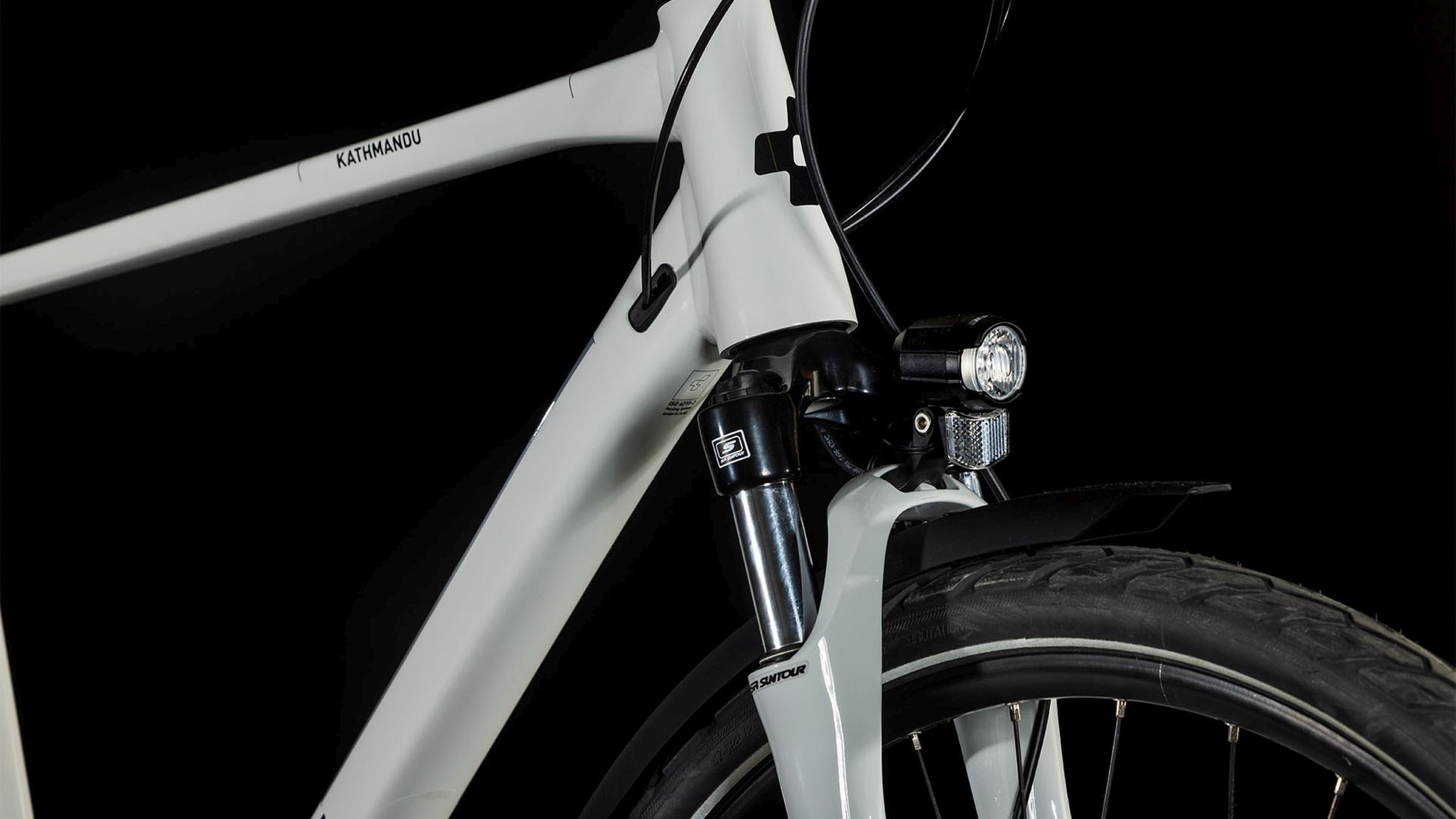

Front light
Cube Shiny 50
Rear light
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand

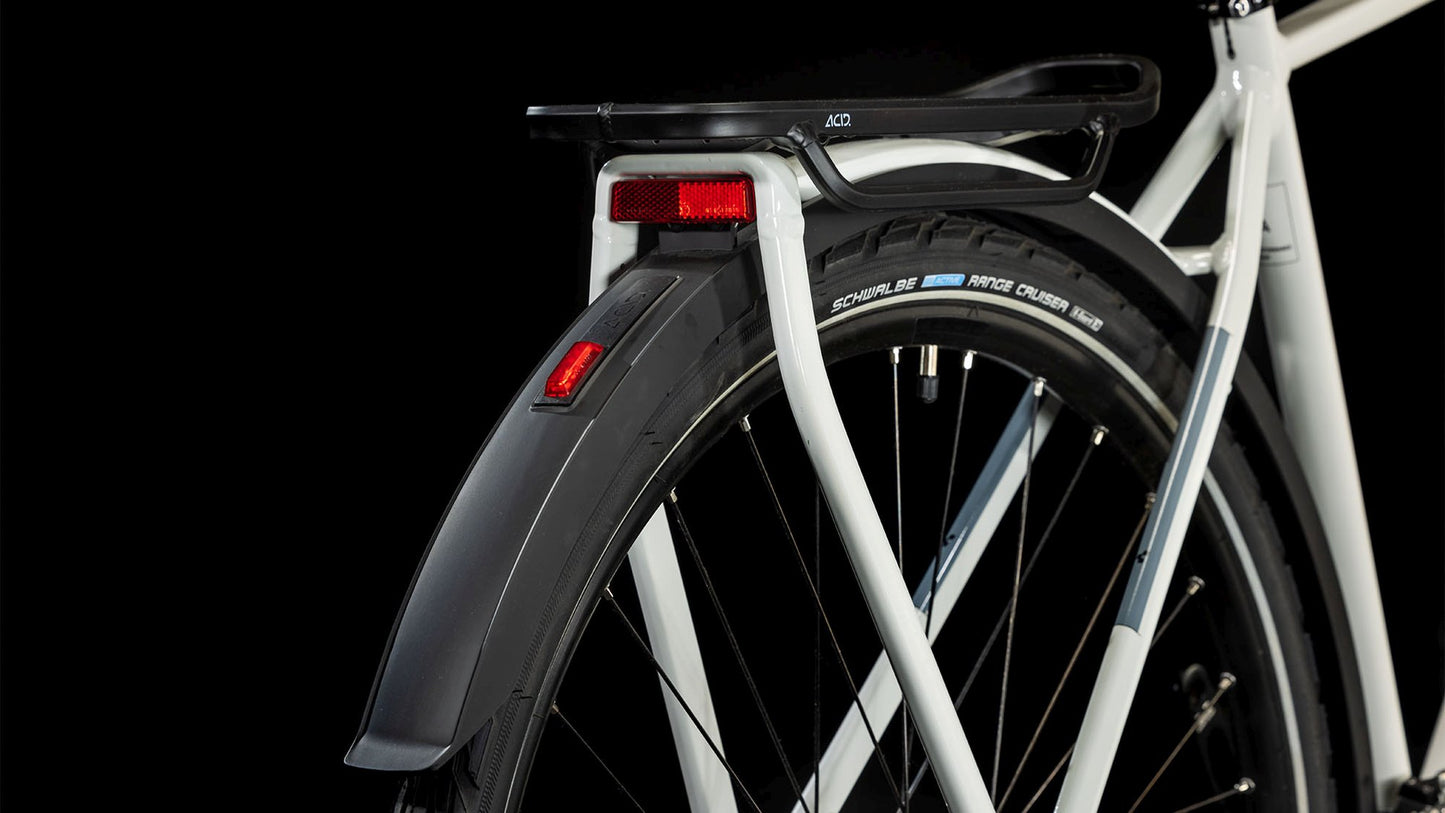

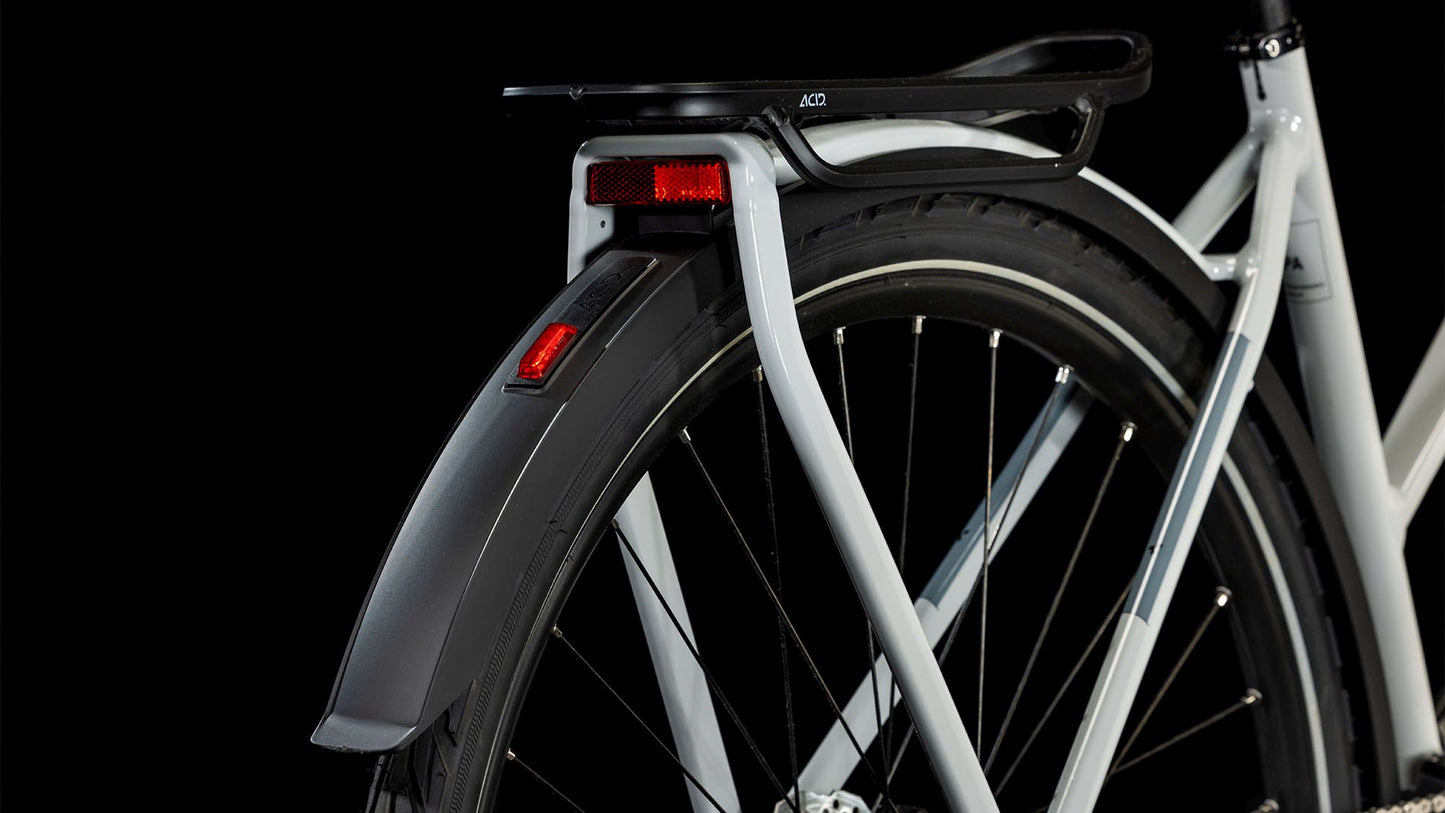

Mudguards
Acid 56 Integrated Carrier 3.0
Bell
Acid Alpha GR

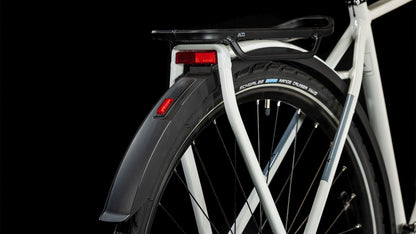

Carrier
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
