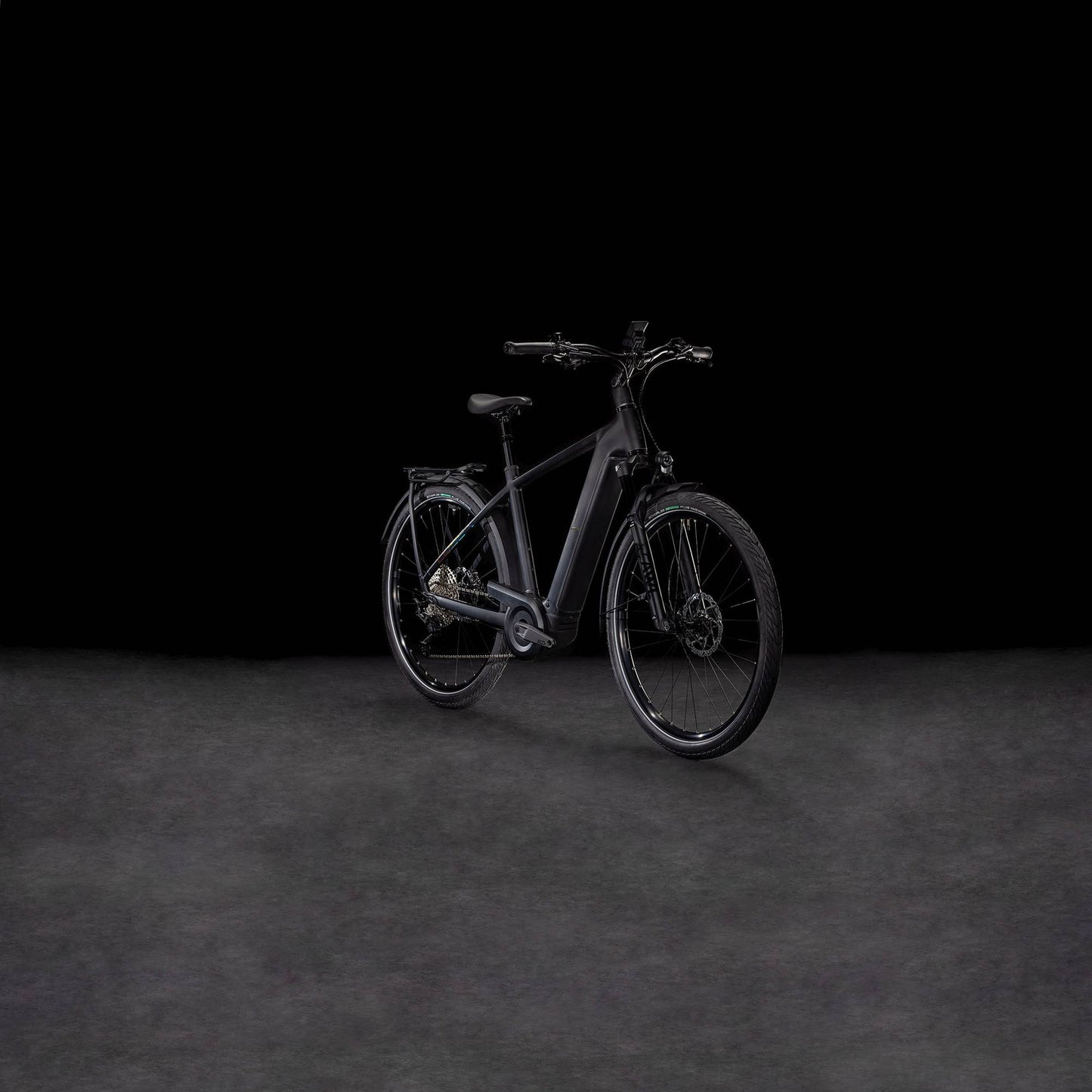

CUBE KATHMANDU HYBRID EXC 800 BLACK/PRISM

CUBE KATHMANDU HYBRID EXC 800 BLACK/PRISM

  • 812500
  • 812501
  • 812501_D_00
  • 812501_D_01
  • 812501_D_02
  • 812501_D_03
  • 812501_D_04
  • 812501_D_05
  • 812501_P_00
  • 812502
  • 812502_D_00
  • 812502_D_01
  • 812502_D_02
  • 812502_D_03
  • 812502_D_04
  • 812502_P_00
  • 812500_D_00
  • 812500_D_01
  • 812500_D_02
  • 812500_D_03
  • 812500_D_04
  • 812500_P_00
1 22
Choose your size or use our size guide.
£3,599.00
£3,599.00 0.00
Sale Sold out
Tax included.
  • Bikes mounted & delivered for free
  • 20 years of experience
  • Physical store for advice, service & maintenance
View full details
Description Specifications

Plus Points

  • Light yet strong Superlite-aluminium frame
  • New Bosch CX drive unit
  • New, extra-large 800 Wh Bosch PowerTube battery
  • Fast yet comfortable Efficient Comfort geometry
  • Shimano XT 12-speed
  • Shimano XT disc brakes
  • Thru-axles front and rear
  • Stiff integrated luggage rack
  • Fast yet comfortable tires
  • High-quality Fox suspension fork with air suspension
  • Suspension seat post
  • UDH rear dropouts
  • Available with classic frame, trapeze frame, or easy-entry frame

Advisory points

  • Slightly heavier than the SLX and SLT versions

Description

The Kathmandu Hybrid EXC 800 is designed to take you any Where. We started with a frame featuring our renowned Efficient Comfort Geometry, developed around a suspension fork with 100 millimeters of comfortable travel. Inside the frame, you'll find the new, lighter Bosch CX motor with 85 newton meters of torque and a PowerTube battery with a generous 800 Wh capacity. There’s also a beautiful and sturdy integrated IC 3.0 luggage rack. For its wide range and reliable performance, we chose Shimano's famous 12-speed XT transmission. The hydraulic disc brakes also carry the XT label, ensuring you can always and safely slow down, no matter the conditions. The bike is further equipped with a high-quality suspension fork from Fox – the 34 AWL Sport. And that’s not all; it also features an adjustable stem, a suspension seat post, and a complete set of accessories to finish it off.
Read more

Product specifications

Frame

  • Model year

    2025

  • Fork

    Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm

    • E-bike System

  • Engine

    Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System

  • Battery

    Bosch PowerTube 800

  • display

    Bosch Kiox 500

    • Drivetrain and brakes

  • Front brake

    Shimano XT BR-M8120, Hydr. Disc Brake (180/180)

  • Rear brake

    Shimano XT BR-M8120, Hydr. Disc Brake (180/180)

  • Rear derailleur

    Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

  • Shifters

    Shimano Deore SL-M6100-IR, Direct Attach

  • Crankset

    Acid MTB Hybrid Pro

  • Cassette

    Shimano Deore CS-M6100, 10-51T

  • Chain

    KMC e12

    • Cockpit

  • Headset

    Acros AZF-1035, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

  • Handlebar

    Cube Comfort Trail Bar, 700mm

  • Stem

    Cube Comfort Stem Pro, 31.8mm, Adjustable

  • Bar tape or grips

    Acid Travel Comfort

    • Wheels

  • Rims

    Cube EX25, 32H, Disc, Tubeless Ready

  • Front hub

    Cube Engineered By Newmen, 15mm, Boost, Centerlock

  • Rear Hub

    Cube Engineered By Newmen, 12mm, Boost, Centerlock

  • Front tyre

    Schwalbe Energizer Plus, Performance, Green Guard, 55-622

  • Rear Tyre

    Schwalbe Energizer Plus, Performance, Green Guard, 55-622

    • Other parts

  • Saddle

    Acid Sequence Pro Plus

  • Seatpost

    Cube Suspension Seatpost HD, 31.6mm

  • Pedals

    Acid PP MTB

  • Front light

    Acid Front Light PRO-E 150 X-Connect, 12V, DC

  • Rear light

    Acid Mudguard Rear Light PRO-E, 12V, DC

  • Kickstand

    Acid FM Pure Kickstand

  • Mudguards

    Acid 65 Integrated Carrier 3.0

  • Bell

    Cube Easy Bell

  • Carrier

    Acid Integrated Carrier 3.0, Adapter Compatible
