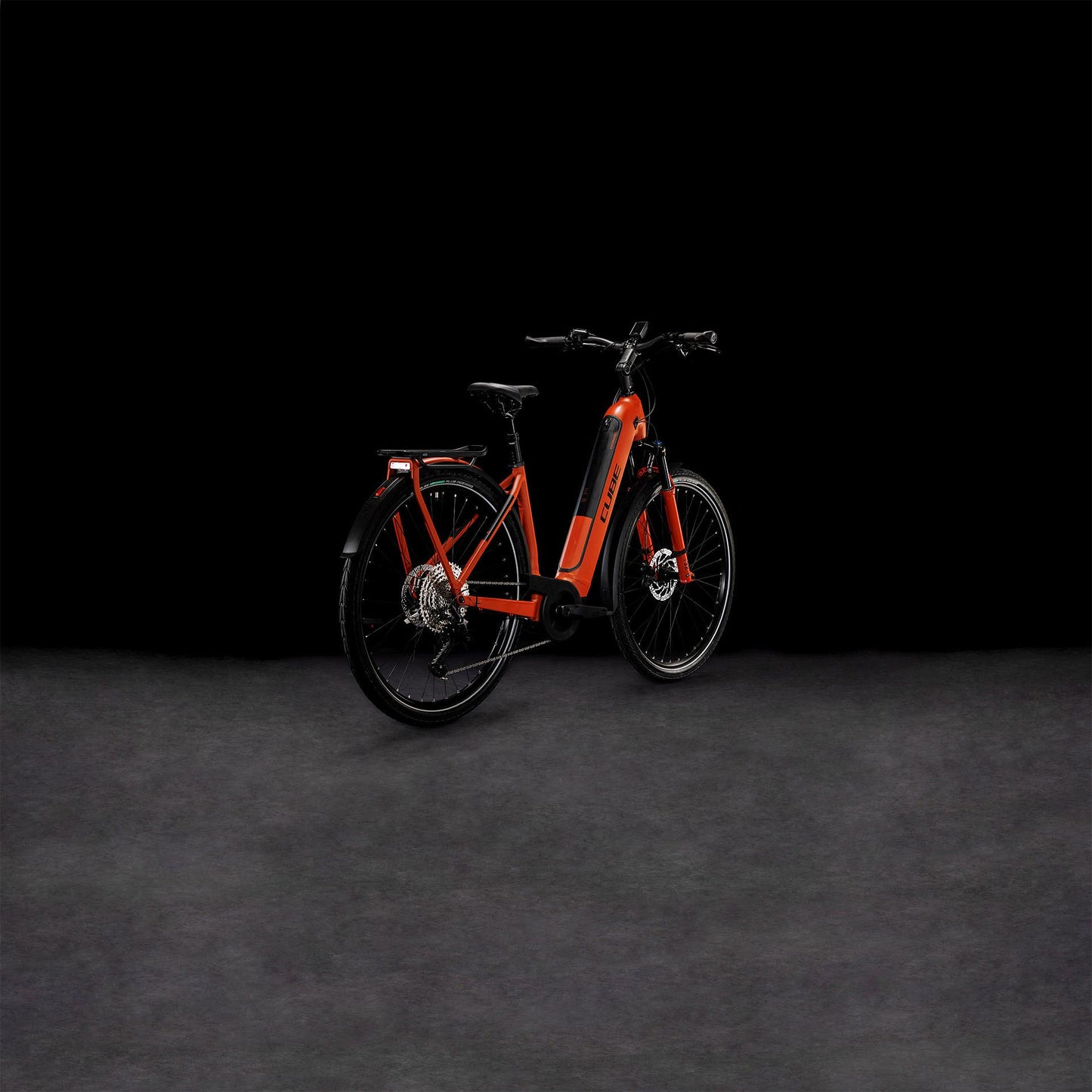

CUBE KATHMANDU HYBRID EXC 750 RED/BLACK
CUBE KATHMANDU HYBRID EXC 750 RED/BLACK
Plus Points
- Light yet strong frame made of Superlite aluminum
- 750 Wh battery
- Full integration of motor and battery
- Fast yet comfortable Efficient Comfort geometry
- Front fork with 10 cm air suspension
- Integrated luggage carrier
- Thru-axles front and rear
- Extra powerful hydraulic disc brakes
- Shimano Deore 12-speed
- Suspension seat post
- Available with classic diamond frame, mixed frame, or low step-through
Advisory points
- Somewhat less light than the SLX
- and SLT versions
Description
CUBE KATHMANDU HYBRID EXC 750 RED/BLACK S
The Kathmandu Hybrid EXC 750 features our largest-capacity battery, so you can ride for longer. We've kept all the best bits, like Bosch's fourth-generation CX drive system, and added the reliability and huge range of Shimano's Deore 1x12 gears – which will help you tackle any route with ease. Powerful four-piston Shimano hydraulic disc brakes have the stopping power to keep you safe in all weathers. A suspension seatpost, adjustable stem and air-sprung Suntour suspension fork ensure you're comfortable, even for long days out. And the Integrated Carrier 3.0, mudguards, lighting system and kickstand give you the tools you need for any errand or adventure.
Frame description
Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 100mm, Lockout
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
display
Bosch Kiox 300
Drivetrain and brakes
Front brake
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Rear derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifters
Shimano Deore SL-M6100-IR, Direct Attach
Crankset
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Cockpit
Headset
Acros M/Z: AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Cube Comfort Trail Bar, 700mm
Stem
Cube Comfort Stem Pro, 31.8mm, Adjustable
Bar tape or grips
Acid Travel Comfort
Wheels
Rims
Cube EX23, 36H, Disc, Tubeless Ready
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Front tyre
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Rear Tyre
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Other parts
Saddle
Sequence Comfort
Seatpost
Cube Suspension Seatpost HD, 30.9mm
Seatpost clamp
Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: Screwlock Semi Integrated, 36mm)
Pedals
Acid PP Trekking
Front light
Cube Shiny 50 Lux, 12V, DC
Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65 Integrated Carrier 3.0
Bell
Cube
Carrier
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
