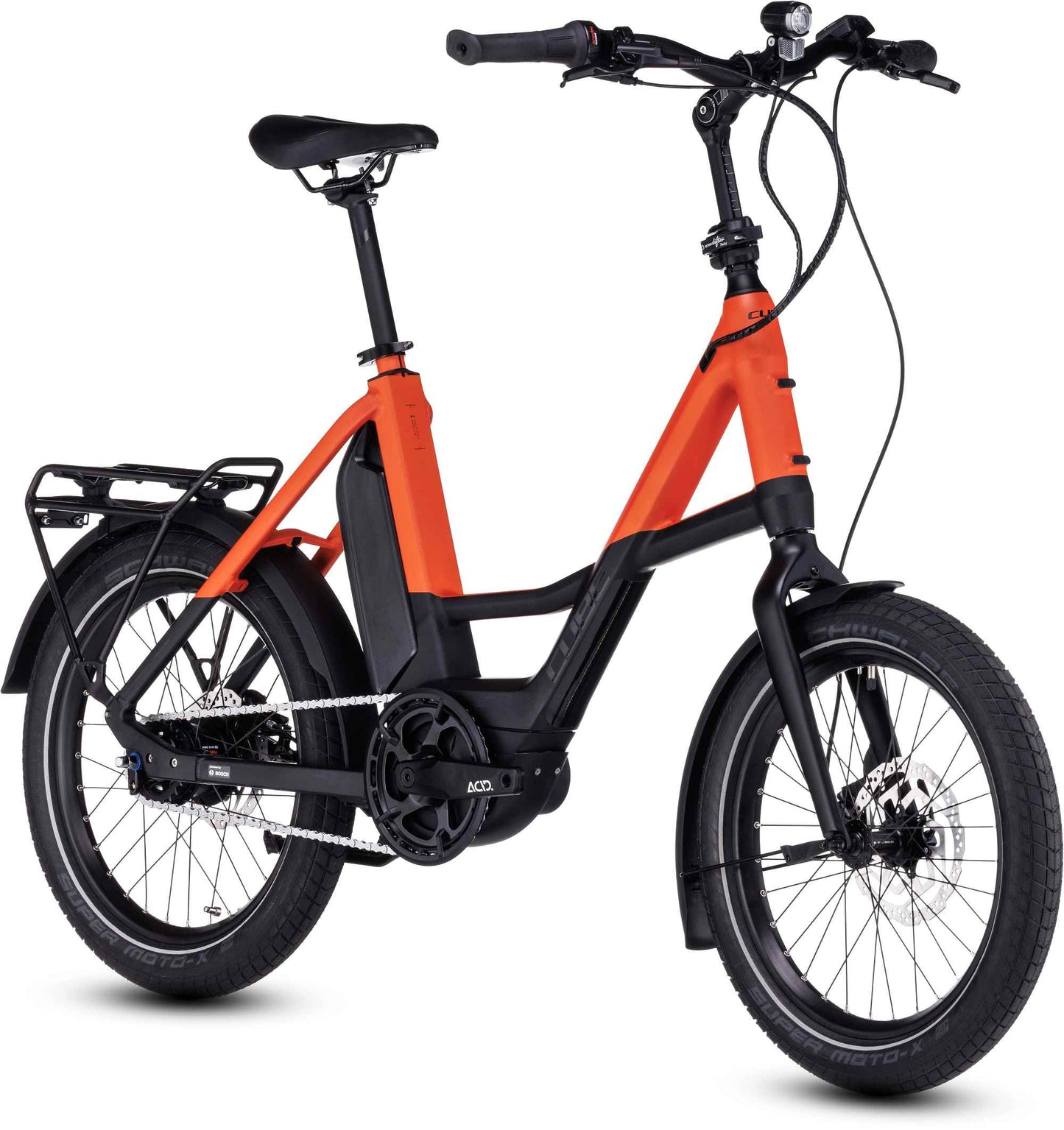

CUBE COMPACT HYBRID 500 BLACK/SPARKORANGE
CUBE COMPACT HYBRID 500 BLACK/SPARKORANGE
Plus Points
- Light yet strong frame made of Superlite aluminum
- Super compact dimensions
- Stable geometry
- Easy step-through
- Integrated Bosch Performance motor
- Central center of gravity thanks to battery behind the seat tube
- Large range thanks to 500 Wh battery
- Low-maintenance gear hub
- Hydraulic disc brakes
- Complete with luggage carrier, fenders, and lighting
Advisory points
- Larger wheels roll more easily
Description
CUBE COMPACT HYBRID 500 BLACK/SPARKORANGE 20"
Wherever two wheels can make your life easier, our Compact Hybrid will slot right in. The clever, compact design – the clue is in the name – and Bosch Performance drive system with easy-to-use Shimano 5-speed hub gears make traffic-dodging a breeze. There's a rack for your essentials, a kickstand for easy parking, mudguards to help keep you dry and a lighting system so you can see and be seen. Powerful Shimano hydraulic disc brakes ensure you can stop safely even when it's wet, and the easily adjustable handlebar makes it easy to get comfortable. You'll wonder how you managed without it.
Frame description
At CUBE we know that the simplest solutions are often the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong. It also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long head tube for accurate, safe steering. The smooth and powerful Bosch Performance drive unit lives in a custom housing at the bottom of the frame, with the battery tucked out of the way of both luggage and rider. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. And the front luggage carrier increases carrying capacity and adds even more versatility. For commuting, for popping to the shops, for camping, for exploring. For you.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
Cube Aluminium 20"
E-bike System
Engine
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
display
Bosch Purion
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Shifters
Shimano Nexus SL-C7000-5, Revoshift
Crankset
Acid E-Crank, 165mm, 44T
Cassette
Shimano Nexus CS-C7000, 23T
Chain
KMC Z610
Cockpit
Headset
Cube H835D3, Semi-Integrated, Sealed bearing
Handlebar
Cube Comfort Trail Bar 680mm
Stem
BySchulz Speedlifter Twist Pro SDS T15
Bar tape or grips
Acid Travel Comfort Gripshift
Wheels
Rims
Cube EX30, 32H, Disc, Tubeless Ready
Front hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
Front tyre
Schwalbe Super Moto-X, Double Defense, 62-406
Rear Tyre
Schwalbe Super Moto-X, Double Defense, 62-406
Other parts
Saddle
Sequence
Seatpost
Newmen Evolution, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Cube PP MTB
