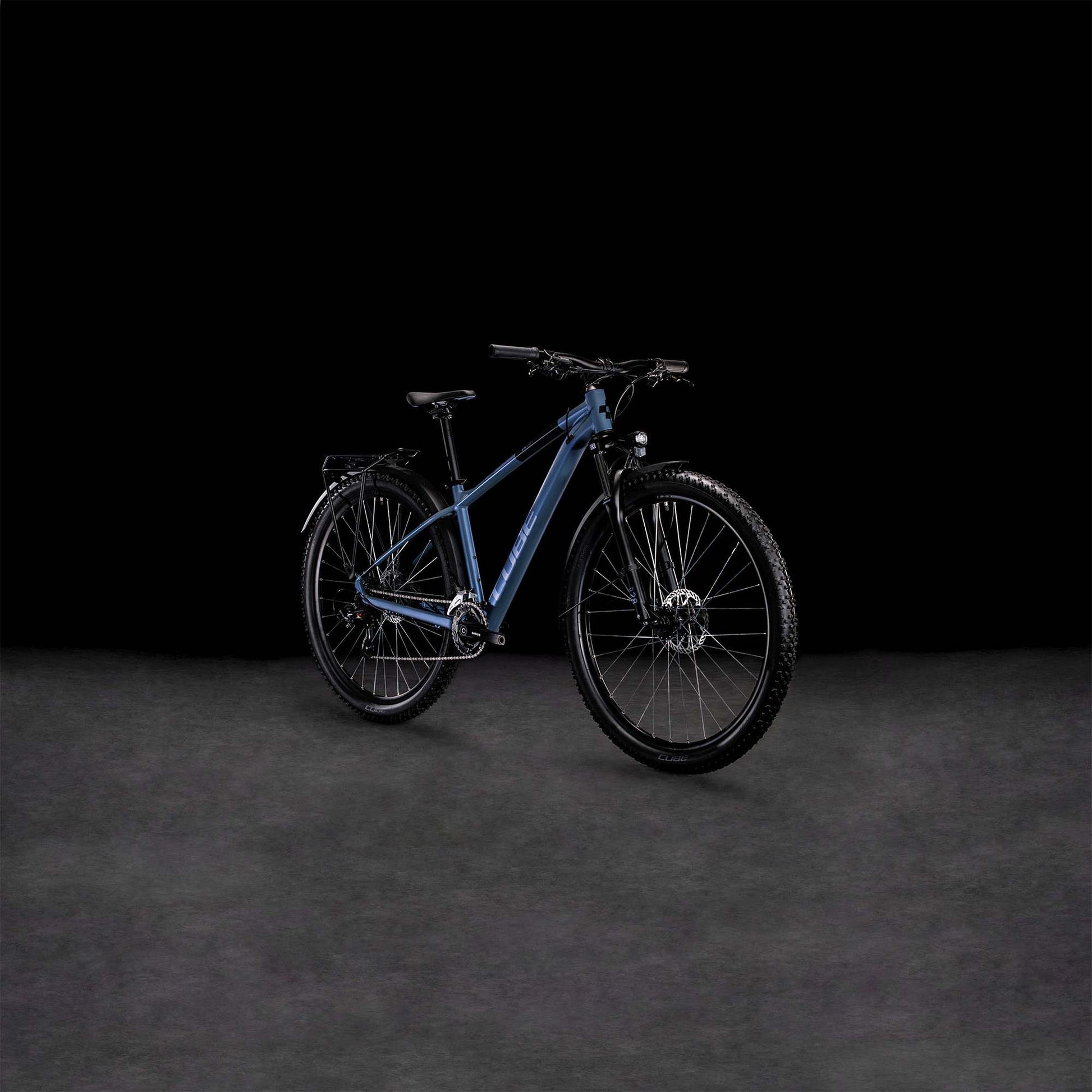

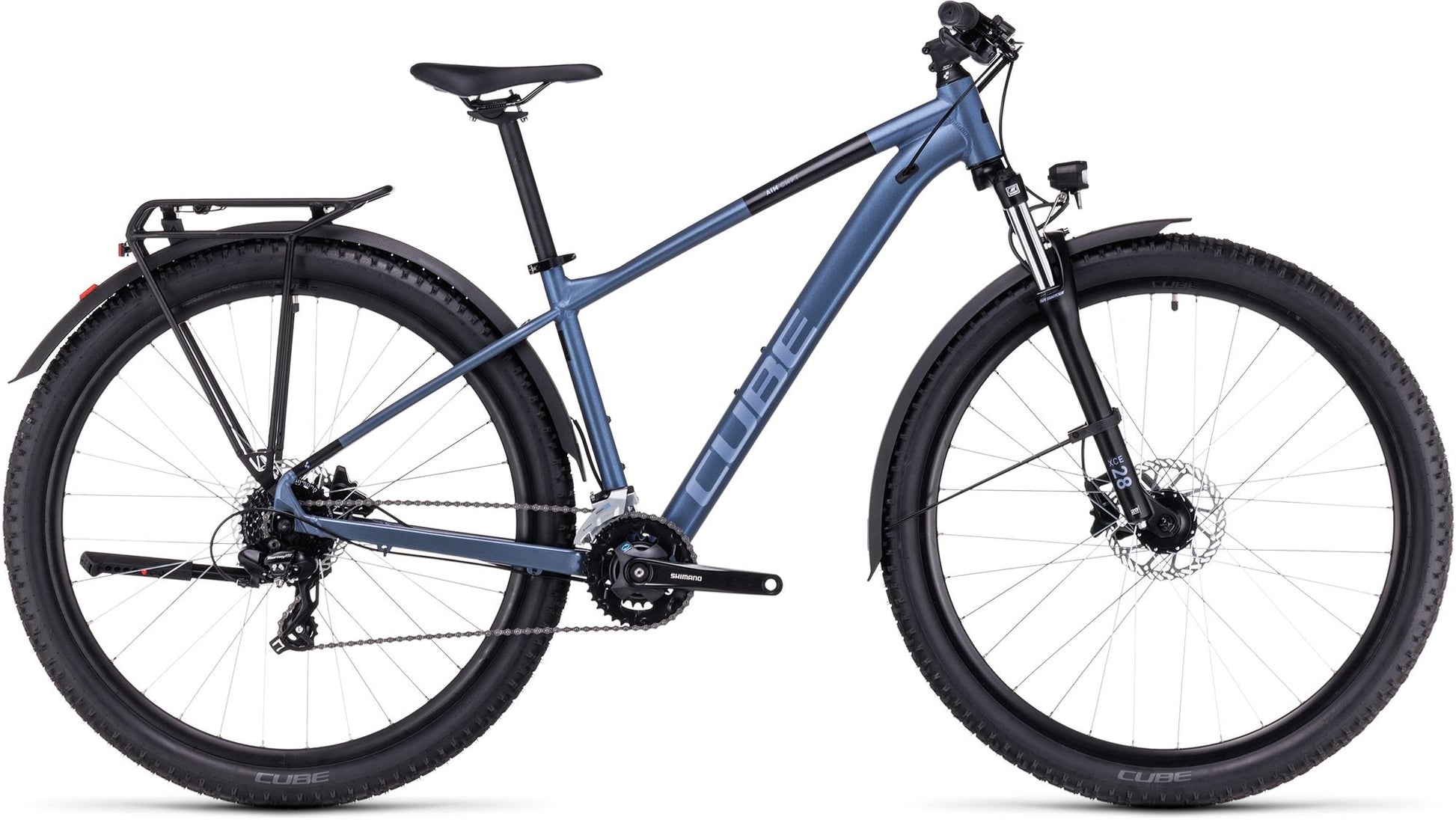

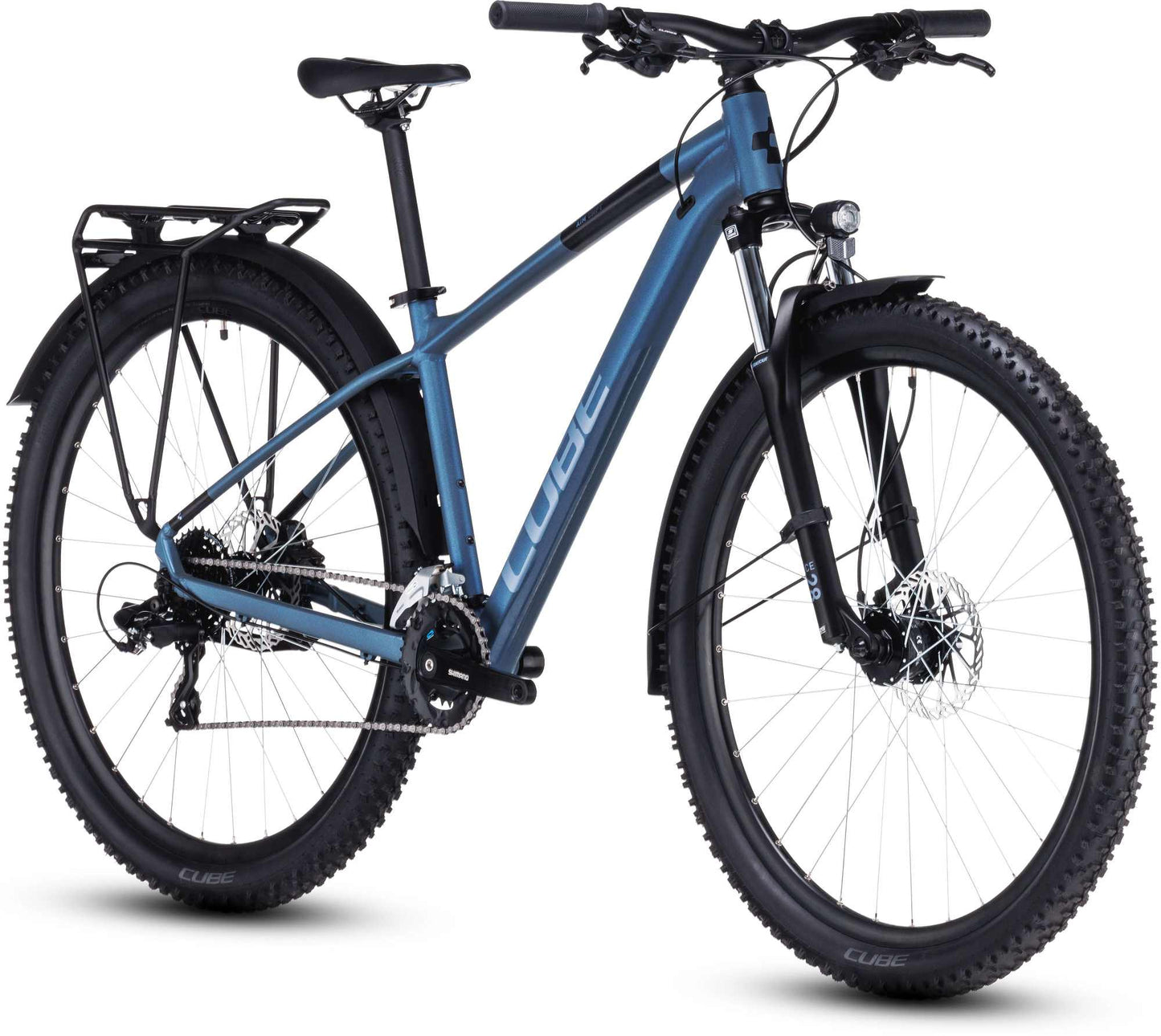

CUBE AIM ALLROAD NAVYBLACK/BLUE
CUBE AIM ALLROAD NAVYBLACK/BLUE
Plus Points
- High-quality, lightweight aluminum frame
- Nice low top tube for easy mounting and dismounting
- Sleek design with internal cable routing
- Great mix of agility and stability thanks to the CUBE Agile Ride geometry
- Size Split: 27.5 inch wheels in small sizes and 29er wheels in large sizes
- Includes fenders, rack, lights, and rear stand
Advisory points
- Heavier than a regular Aim
- No axle pins
- No conical head tube
Description
CUBE AIM ALLROAD NAVYBLACK/BLUE XS
Whether it's a daily commute or a weekend off-road adventure, the Aim Allroad has got you covered. With a full complement of mudguards, luggage rack, lighting system and kickstand, you're all set for tackling the mean city streets in style and comfort. Come the weekend, grippy tyres with a 100mm suspension fork and wide-ranging Shimano 2x8 gears give you the tools you need to explore wherever your curiosity leads you. And, whether you ride on road or off, powerful disc brakes ensure you're always in full control.
Frame description

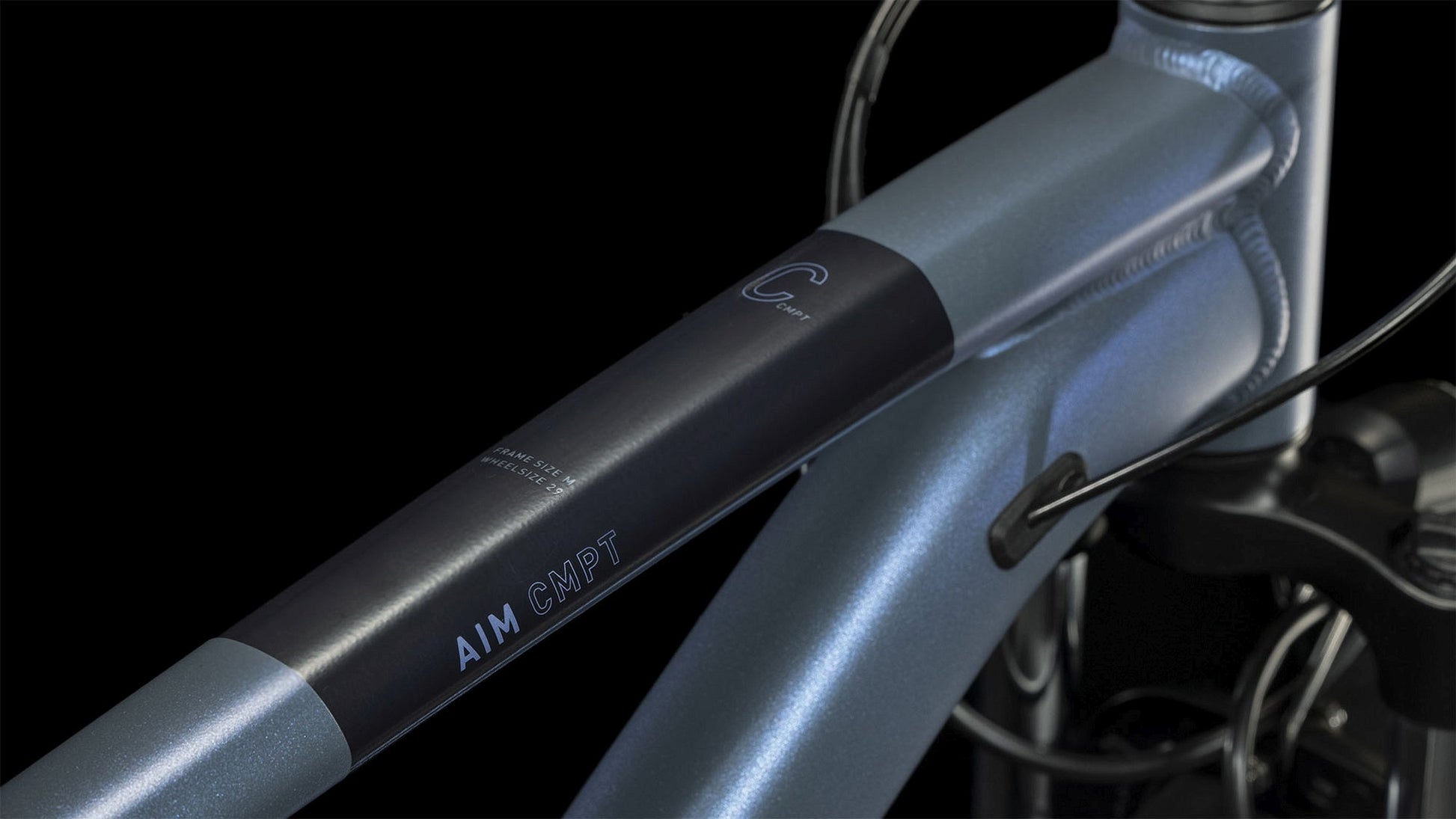

With the Aim Allroad we're redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, and the flat disc mount integrates seamlessly with the included kickstand. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim Allroad that fits perfectly.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
Cube XCE, 100mm
Drivetrain and brakes
Front brake
Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Rear brake
Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Rear derailleur
Shimano RD-TX800, 8-Speed
Front derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters
Shimano SL-M315, Rapidfire-Plus
Crankset
Shimano FC-M315, 36x22T, 170mm
Cassette
Shimano CS-HG200, 12-32T
Chain
KMC Z8.3
Cockpit
Headset
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar, 680mm
Stem
Cube Performance Stem, 31.8mm
Bar tape or grips
Acid React
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
Cube Alloy Light, QR, 6-Bolt
Front tyre
Cube IMPAC Smartpac, 2.25
Rear Tyre
Cube IMPAC Smartpac, 2.25
Other parts
Saddle
Venec Lite
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Varioclose, 31.8mm
Pedals
Cube PP MTB

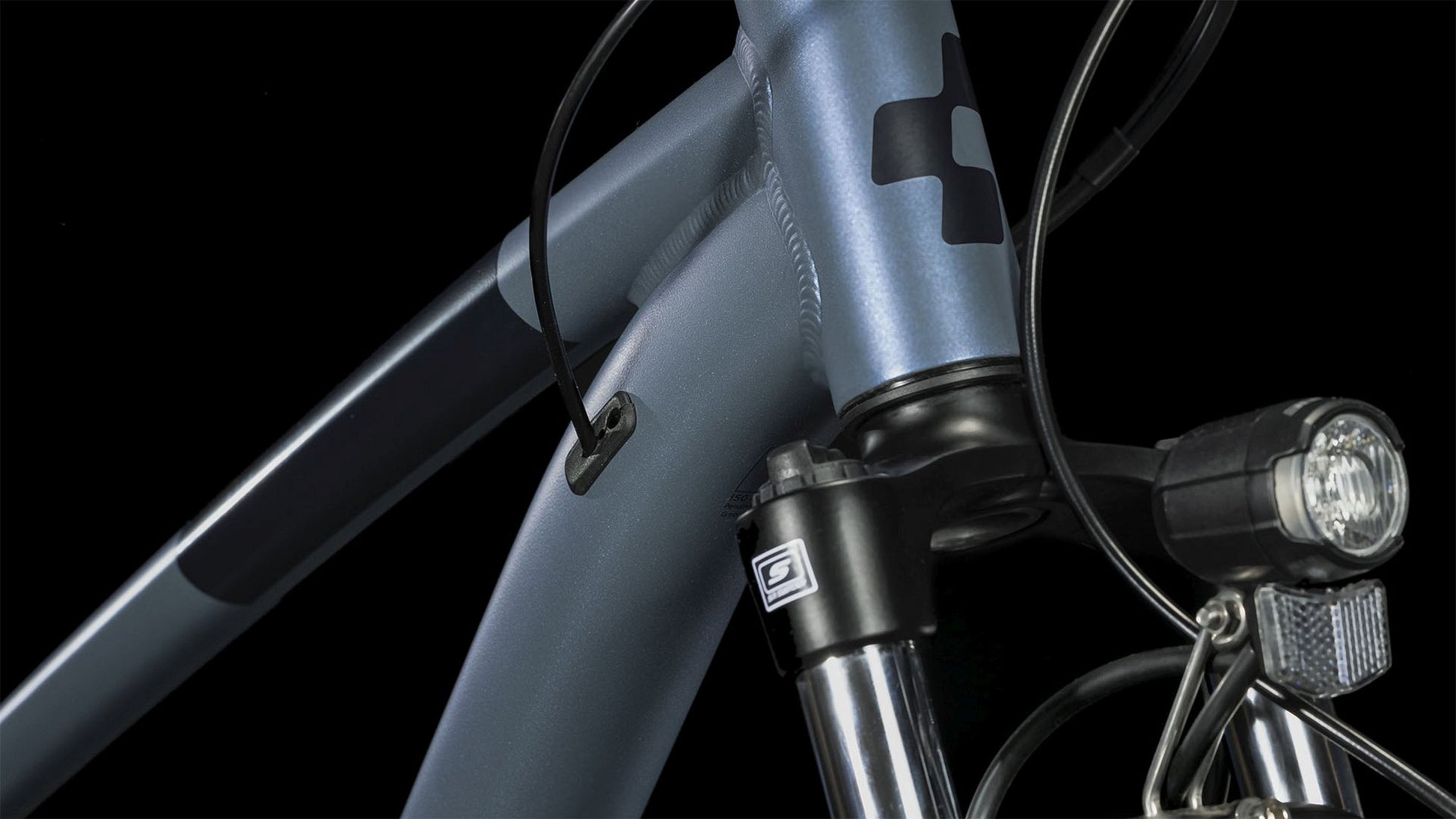

Front light
Cube Shiny 50
Rear light
Acid Mudguard Rear Light PRO-D, 6V, AC
Kickstand
Acid FM Pure Kickstand
Mudguards
Acid 65
Bell
Acid

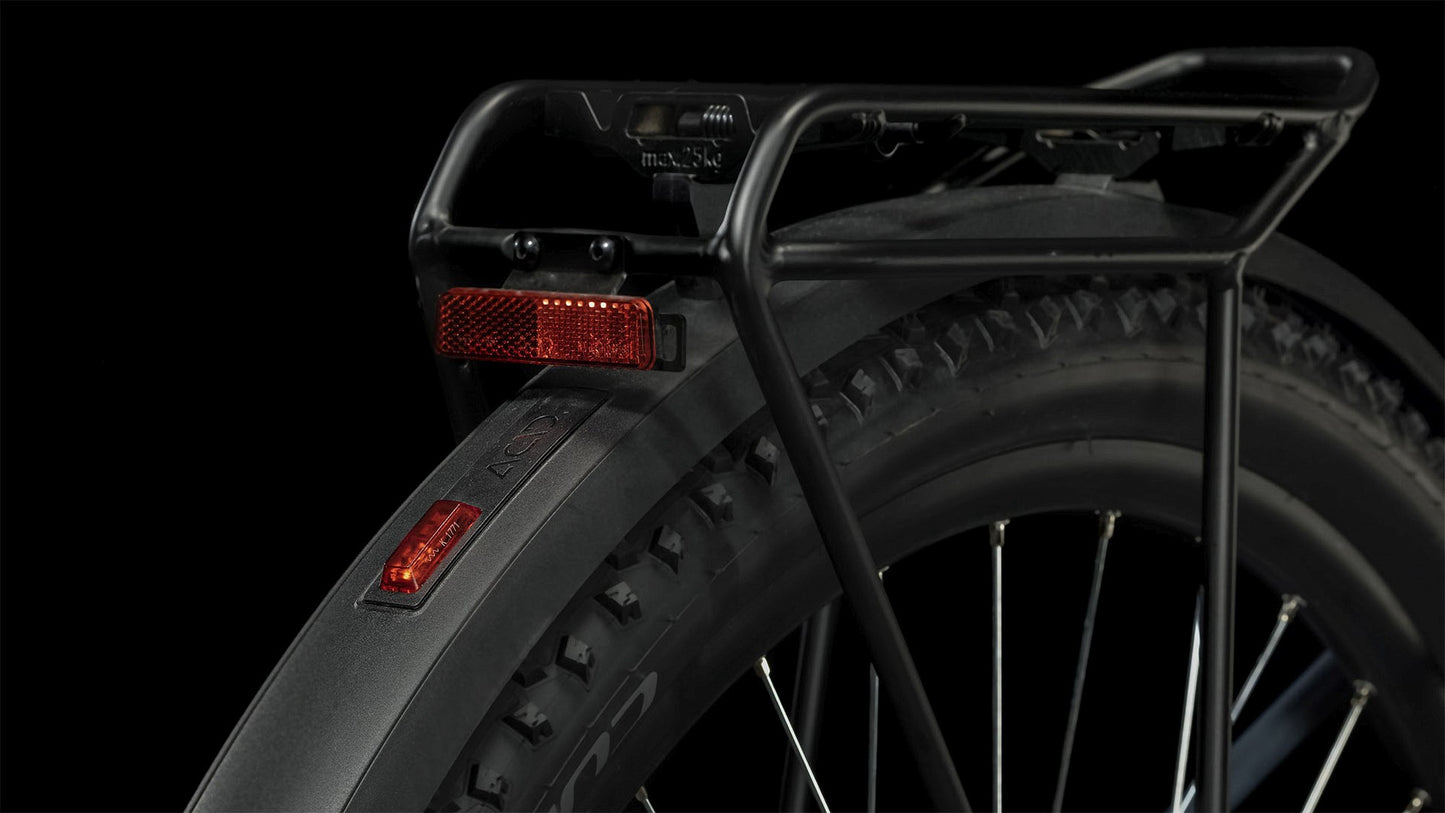

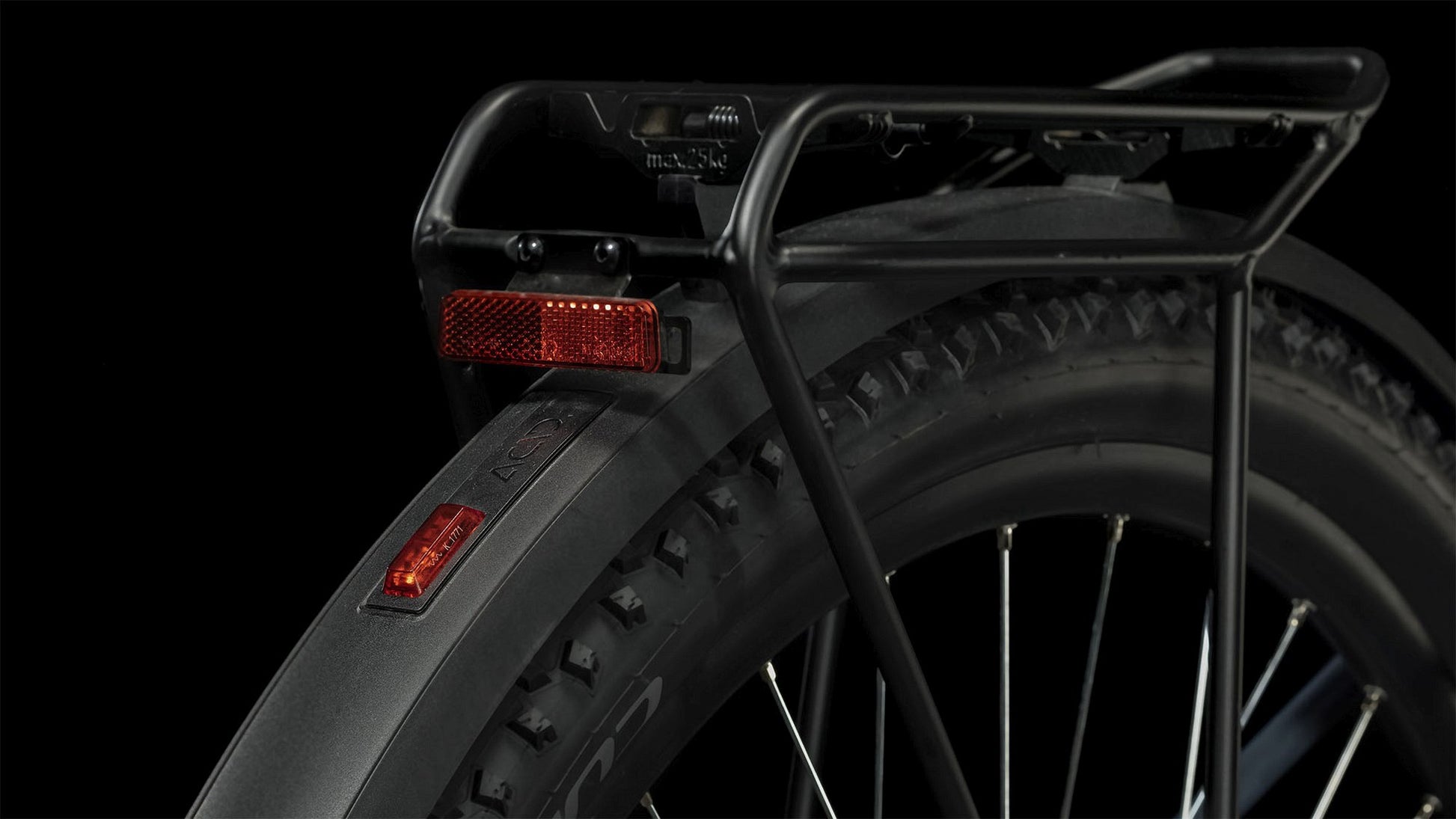

Carrier
Acid Semi-Integrated Carrier, RILink Adapter Compatible
