CUBE ACID 240 HYBRID ROOKIE PRO 400 ACTIONTEAM
CUBE ACID 240 HYBRID ROOKIE PRO 400 ACTIONTEAM
Plus Points
- Lightweight and high-quality aluminum frame
- Smooth Bosch Active motor
- Lightweight battery
- Nice mix of agility and stability
- Reliable and powerful hydraulic disc brakes
- Functional suspension front fork
Advisory points
- Heavier than the Acid 240 Hybrid Rookie SLX
- 9-speed cassette with less tire width than on the Acid 240 Hybrid Rookie SL
Description

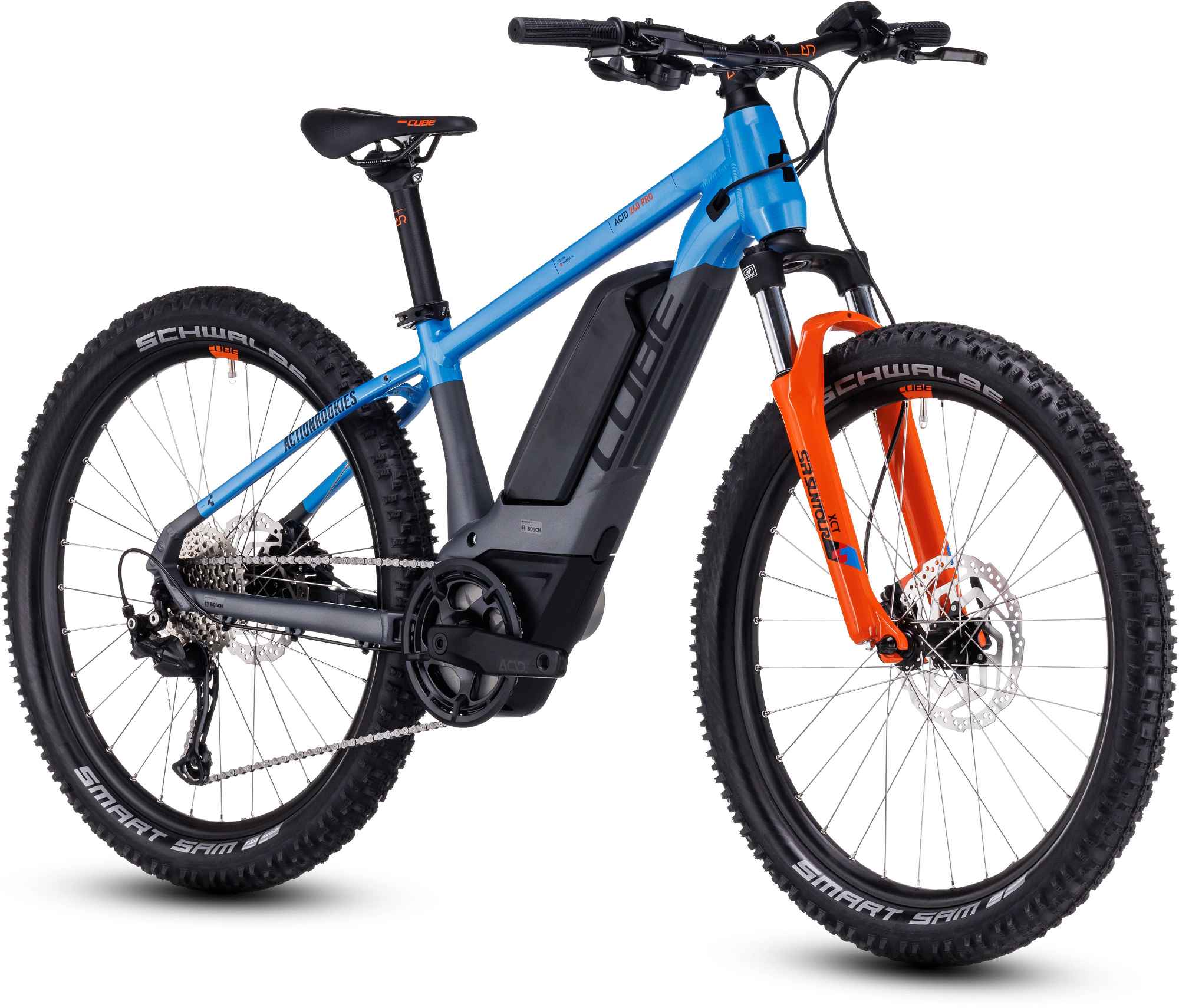

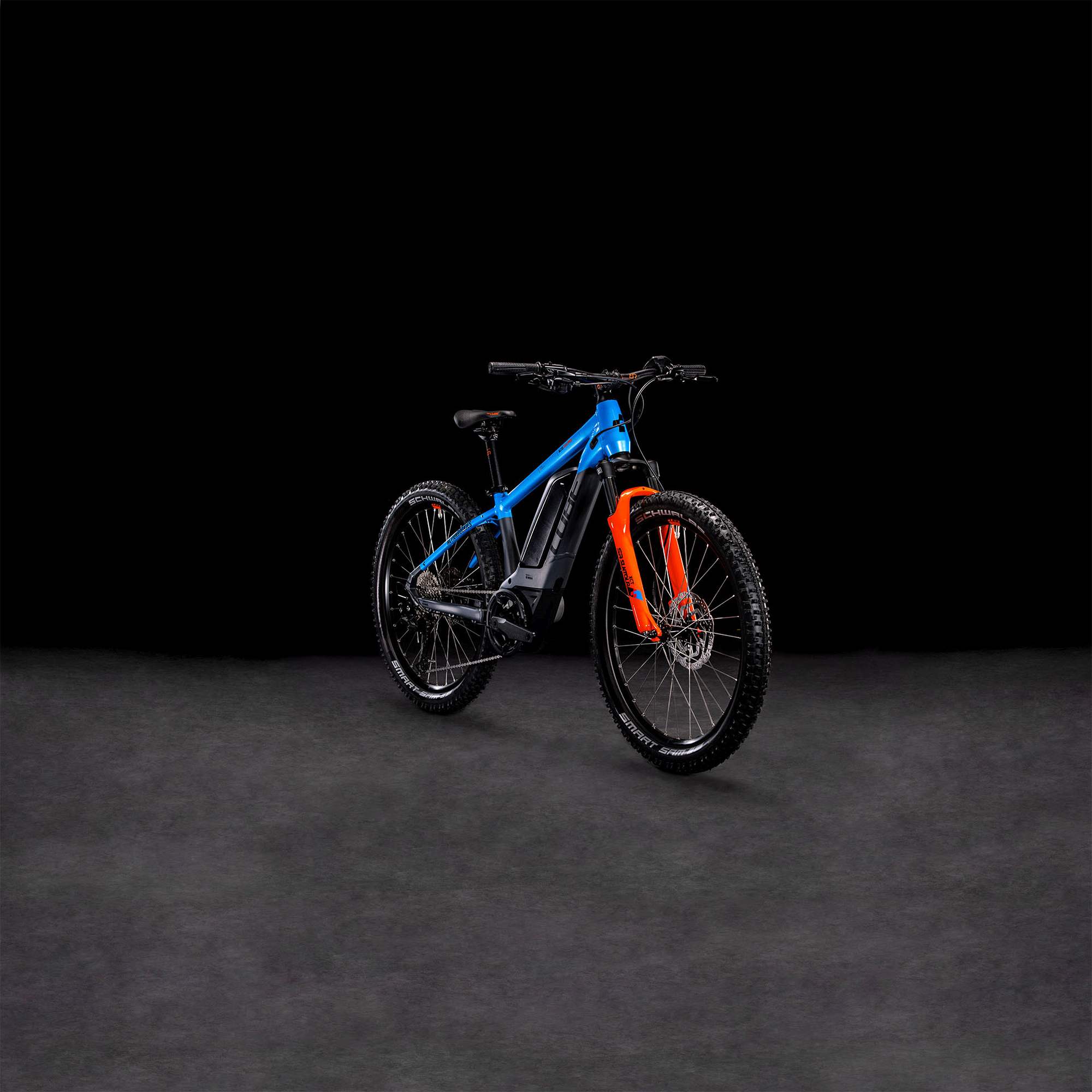

CUBE ACID 240 HYBRID ROOKIE PRO 400 AT 24"
The Acid 240 Hybrid Rookie gives younger riders an extra power boost, so they can tackle longer family rides and keep up with the grown-ups. Making use of the same technologies as our full-size e-mtbs, it features a Bosch Active drive unit coupled to Shimano's easy-to-use 9-speed gears. Suntour's XCT JR fork is designed specifically with younger, lighter riders in mind and helps smooth out the trail ahead. A kid-friendly cockpit and saddle make for a super-comfy ride position. And there's a set of powerful hydraulic disc brakes, for safe stopping. Put the spark back in your family rides...

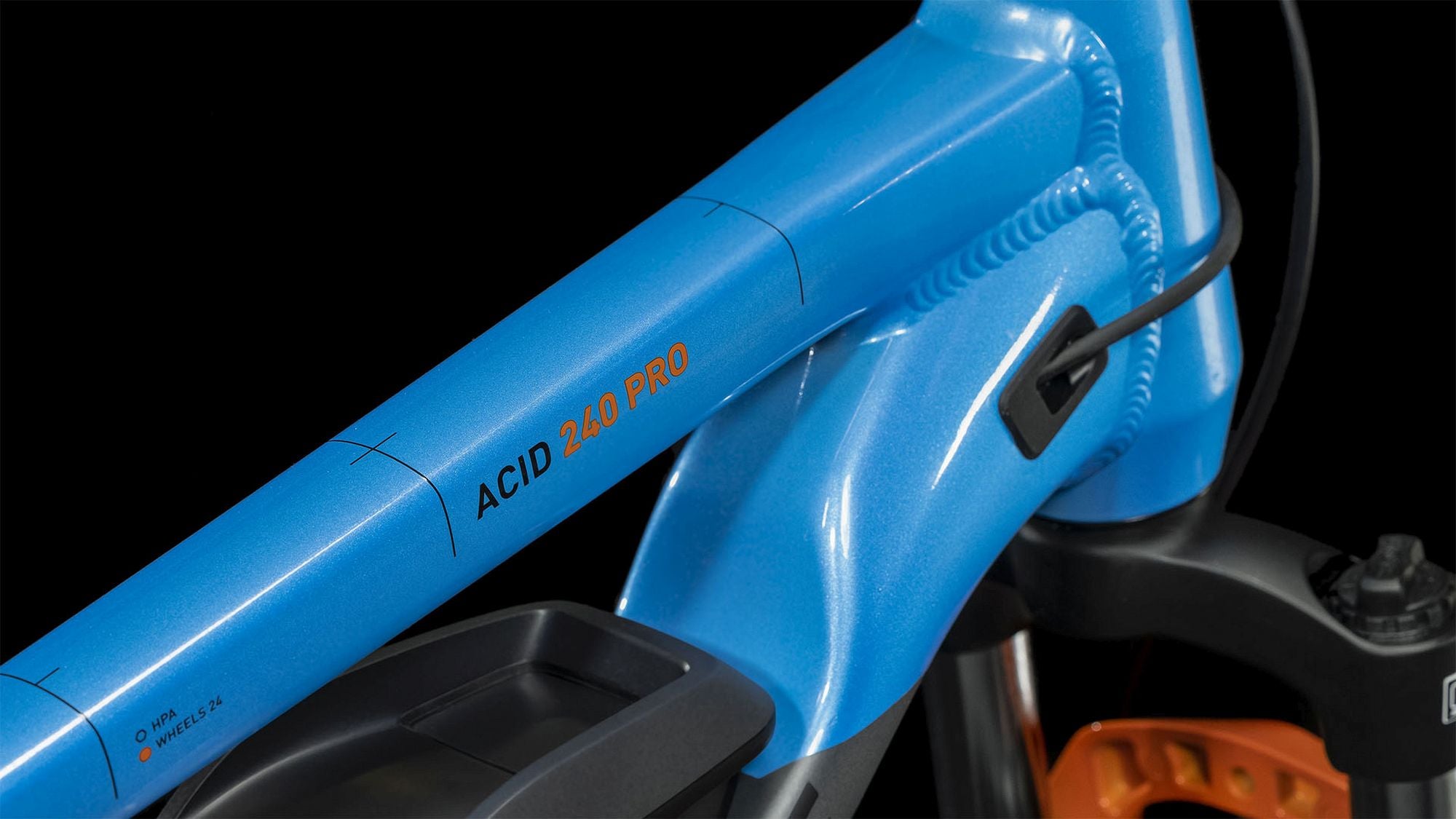

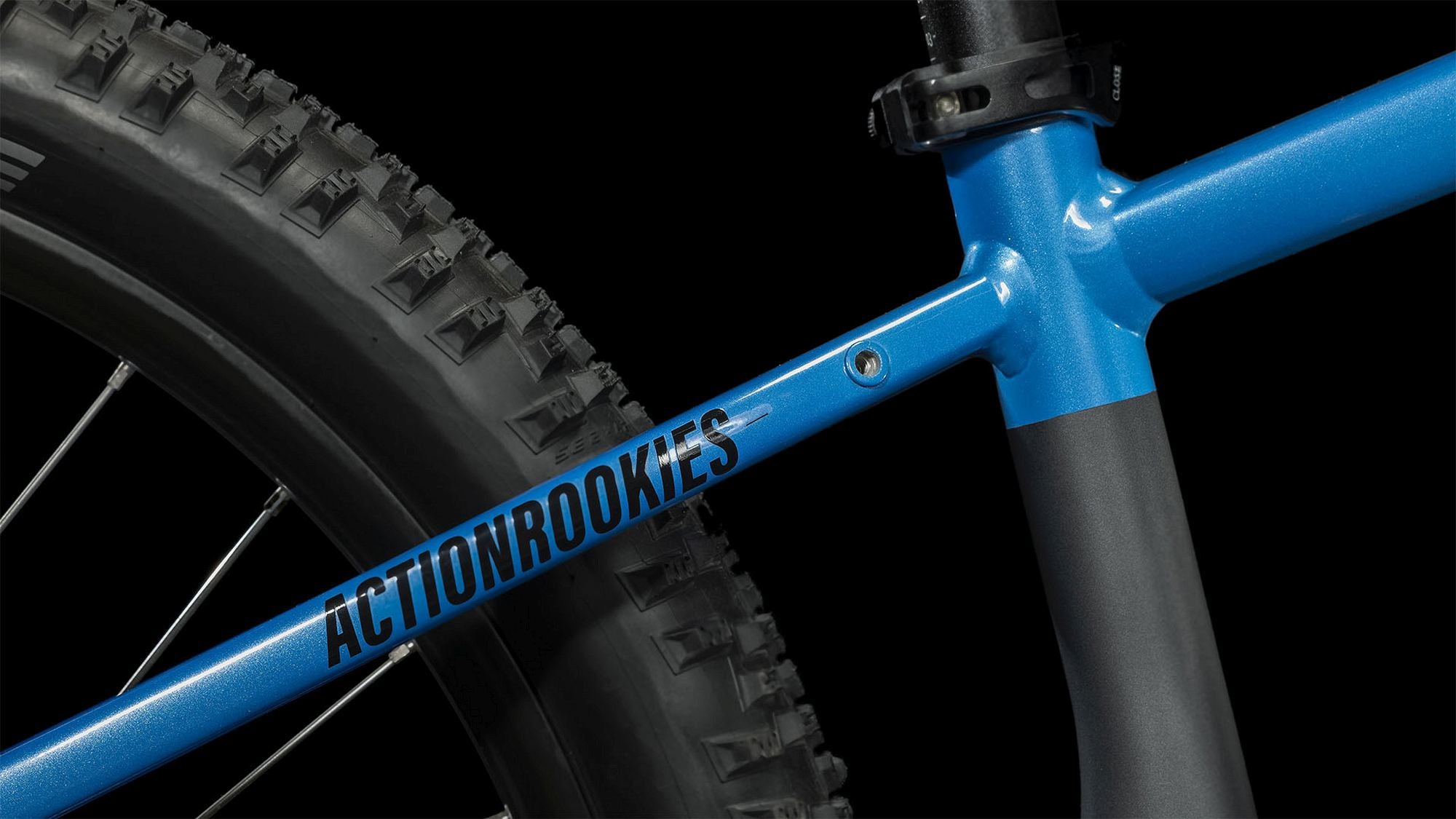

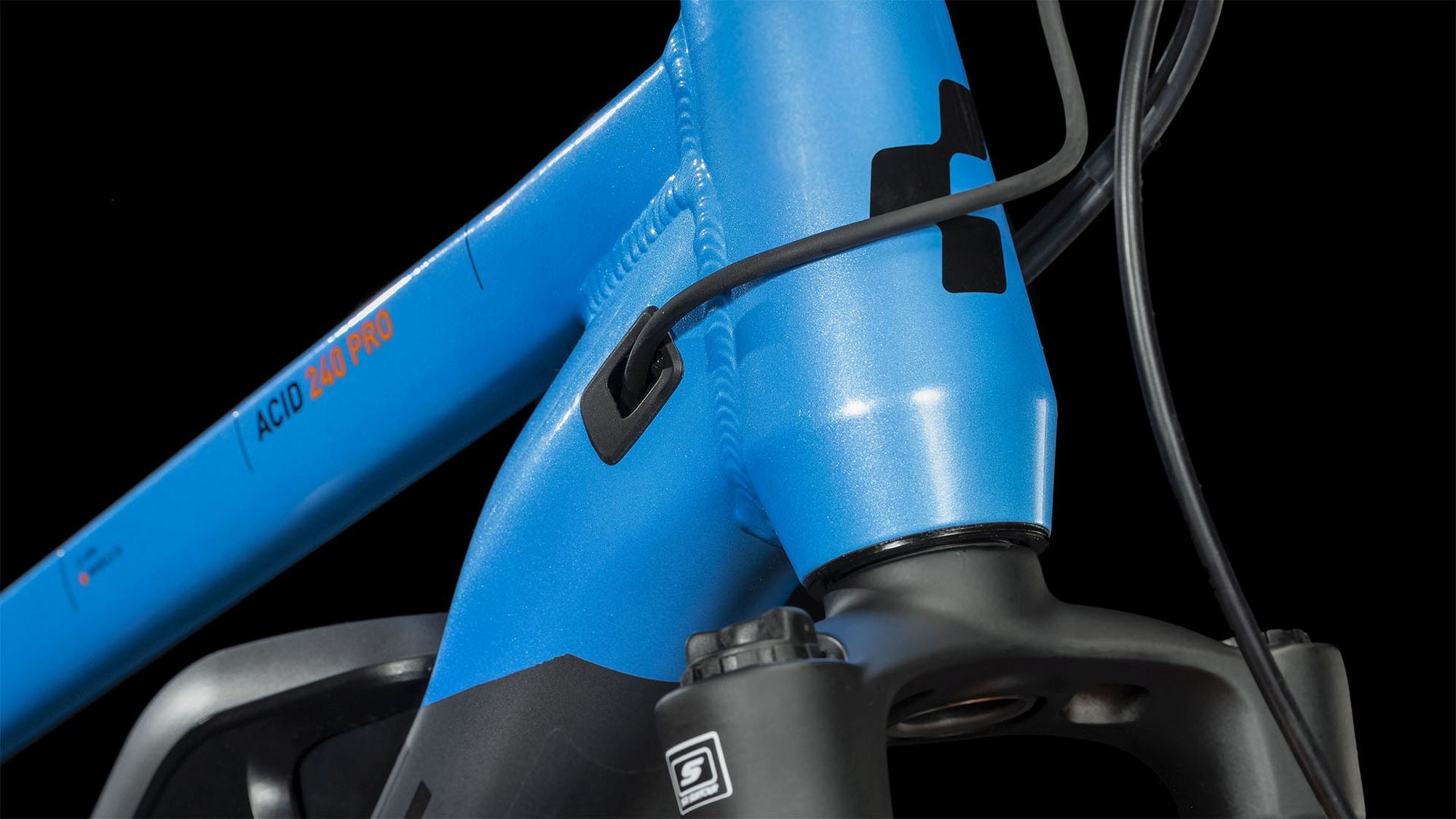

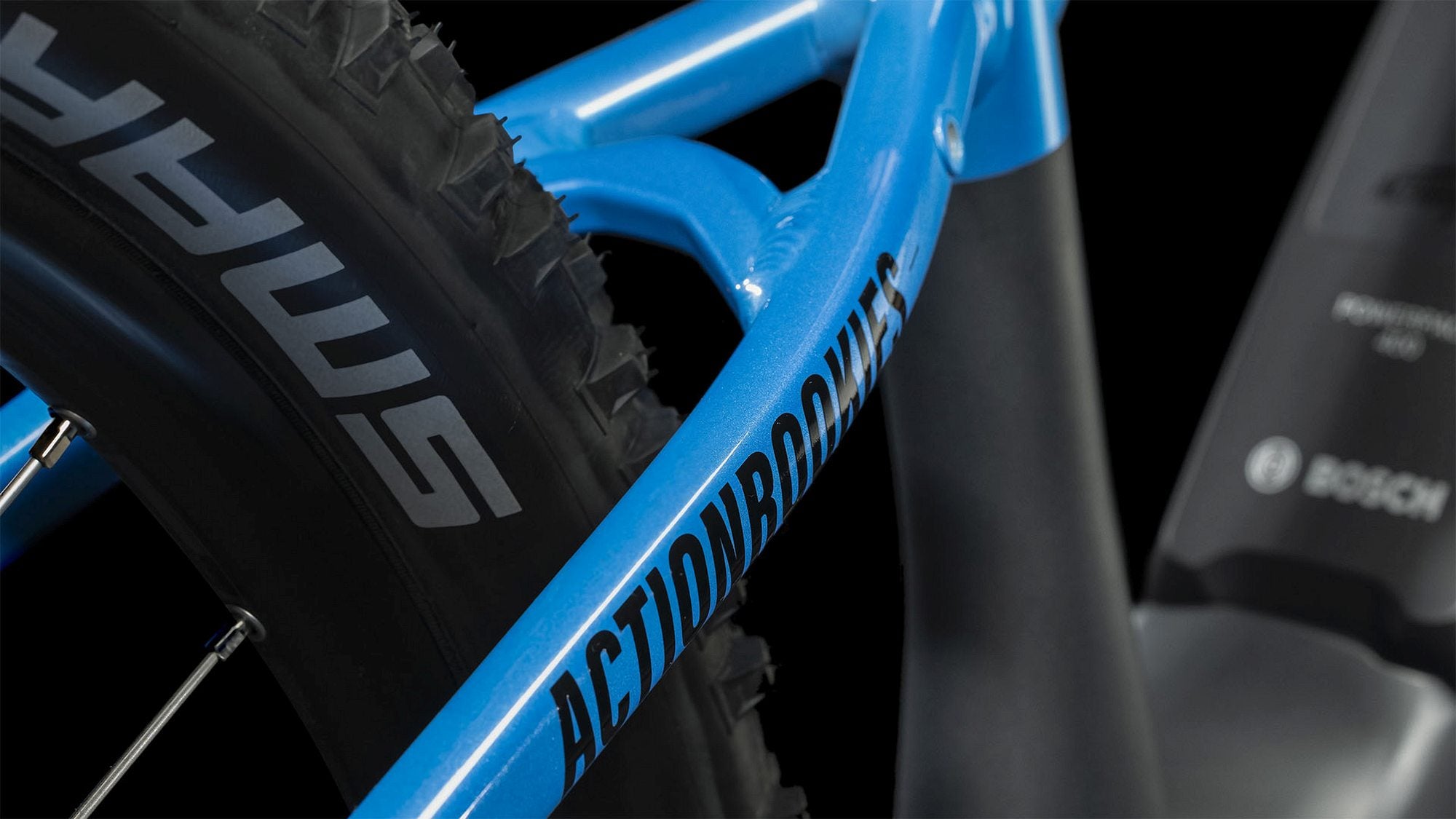

Frame description
It's fair to say that Bosch didn't have perfectly proportioned kids' bikes in mind when they designed their world-beating drive systems, but that hasn't prevented us from neatly integrating it into the Acid 240 Hybrid Rookie's frame. Using the same design and construction techniques as our adult hybrid mtbs, we've built a junior hybrid that's both fun to ride and safe as well. Internal cable routing significantly reduces maintenance, and we even included mounts for a CUBE kickstand.
Find your size!
Enter your height and inseam below and click on 'Calculate my frame size' to see which size you need. You measure your inseam as follows:
1. Stand barefoot with your heels against the wall. Place your feet about 6 inches apart.
2. Grab a book and place it between your legs, with the short side of the book against the wall. Press the book up against your crotch, mimicking the idea of a bicycle saddle.
3. Measure the length from the top of the book to the floor, the distance you measure is your inseam.
Product specifications
Frame
Model year
2024
Fork
Cube XCT JR, 80mm
E-bike System
Engine
Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
display
Bosch Purion
Drivetrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Rear derailleur
Shimano RD-M3100-SGS, 9-Speed
Shifters
Shimano SL-M2010-9R, Rapidfire-Plus
Crankset
Acid E-Crank, 38T, 160mm
Cassette
Shimano CS-HG201, 11-36T
Chain
KMC X9
Cockpit
Headset
Cube FPH863, Semi-Integrated
Handlebar
Cube Rise Trail Bar Kids, 590mm, 25.4
Stem
Cube Performance Stem Kids, 25.4mm
Bar tape or grips
Cube Kids Grip, 19mm diameter
Wheels
Rims
Cube ZX20, 32H, Disc
Front hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Front tyre
Schwalbe Smart Sam, Active, 2.35
Rear Tyre
Schwalbe Smart Sam, Active, 2.35
Other parts

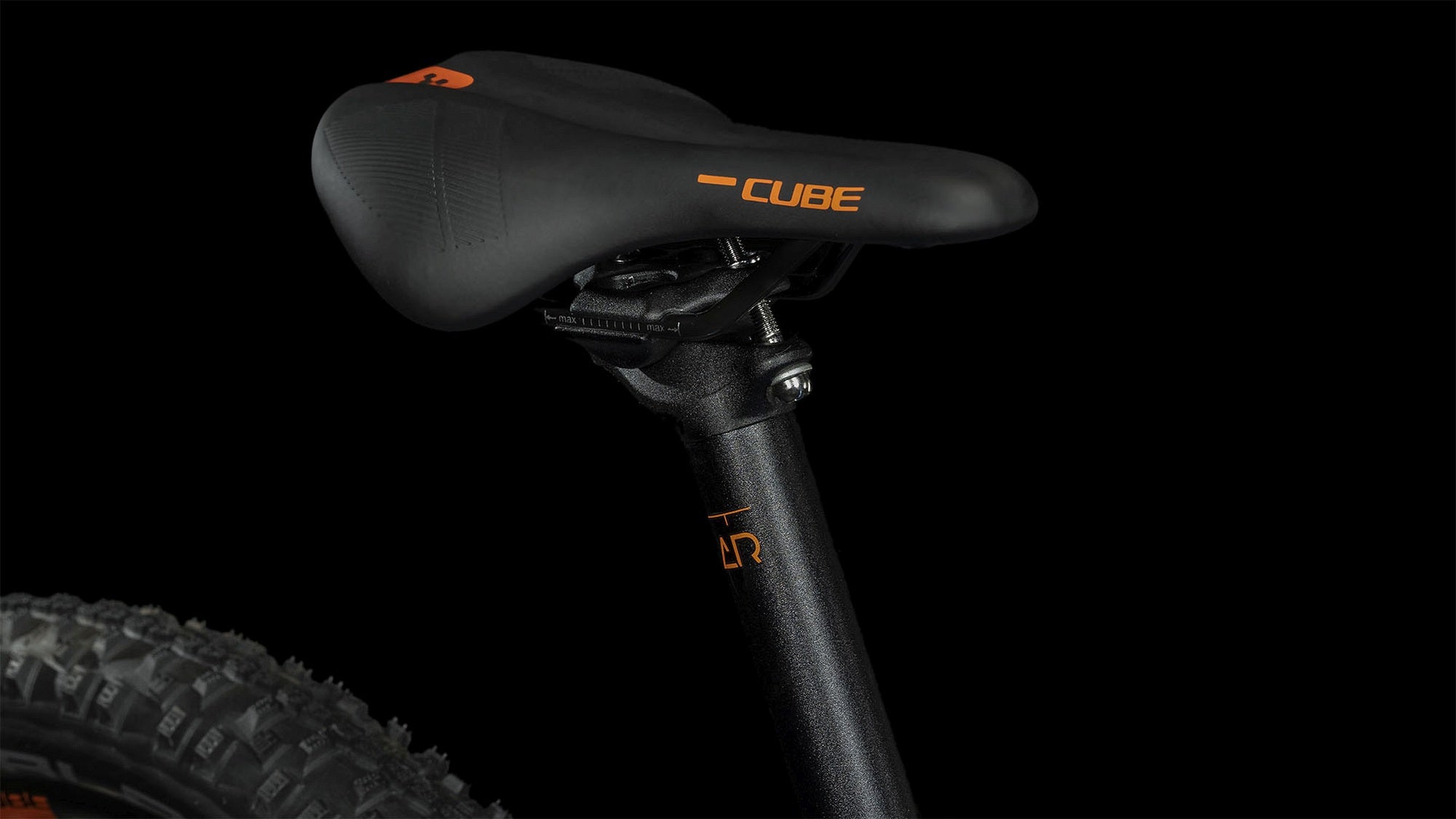

Saddle
Cube Kid
Seatpost
Cube Performance Post, 30.9mm
Seatpost clamp
Cube Varioclose, 34.9mm
Pedals
Cube PP MTB
